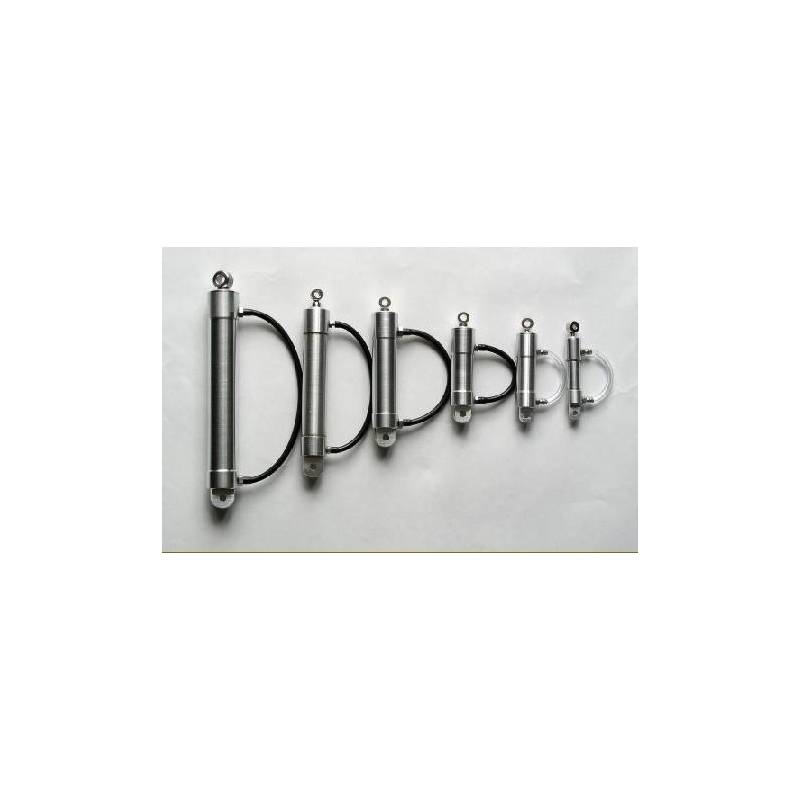

Hydraulic cylinder Leimbach

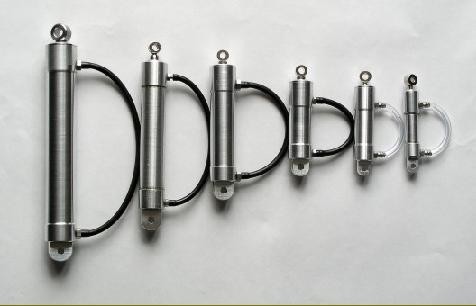

Hydraulic cylinders Leimbach

Indicative delivery time: 2 to 3 weeks.

All cylinders Leimbach are available on stock or on order depending on the dimensions. Contact us to check availability.
The thrust and tensile values are based on a working pressure of 10 bar.
Unless otherwise stated, the cylinders come with clockwise hydraulic fittings.
To obtain bent hydraulic fittings, specify an A at the end of the reference,

example: H0725A

Cylinders with M3 fitting thread come with fittings for inner Ø1.5mm and Ø3mm outer hoses.

Cylinders with M4 fitting thread come with fittings for inner Ø2.5mm and Ø4mm outer hoses.

Important: For more information about cylinders see the file for download on this page

The cylinders ordered are neither returned nor exchanged.
