Leimbach standard 4-way hydraulic distributor for Hitec servo
Leimbach standard 4-way hydraulic distributor for Hitec servo
Reference : HYLEH504H
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Fitting model on A and B

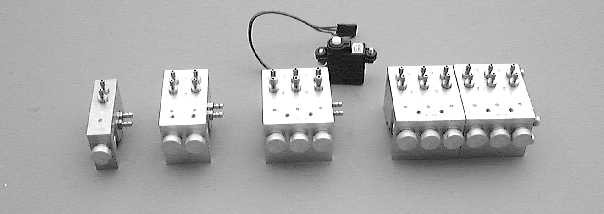

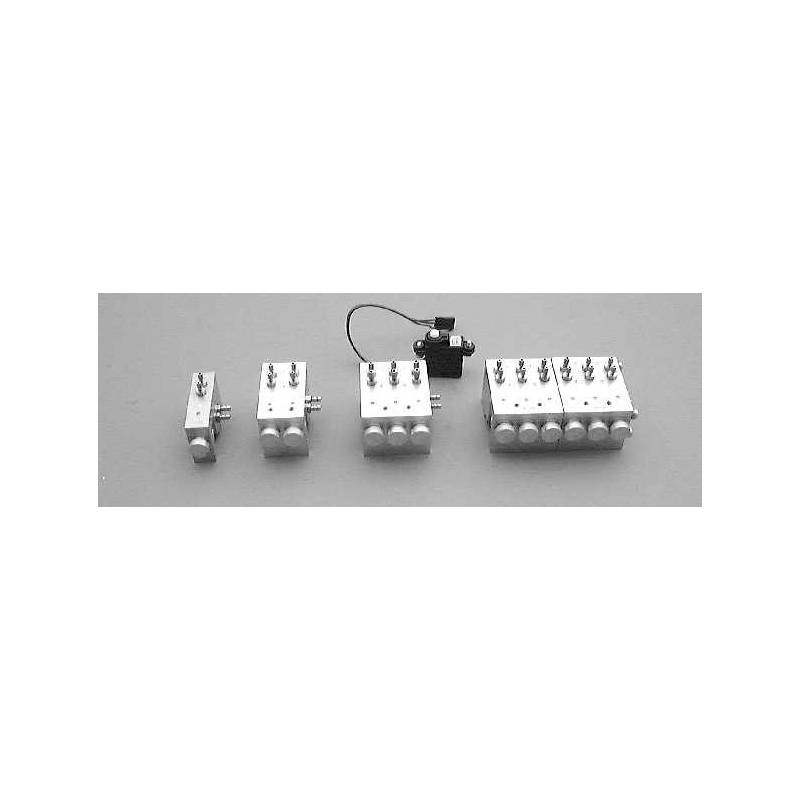

Leimbach standard 4-way hydraulic distributor for Hitec servo
Leimbach H504H
Supplied with the following connections:
- On P and T (pressure and return) : H023 (M3 - Ø2.5mm - for Ø4mm hose ref: H058)
- On A and B (cylinder): select the type of fitting required (from the drop-down list above)
- H022 (M3 - Ø1.5mm - for Ø3mm hose ref: H052)
- H023 (M3 - Ø2.5mm - for Ø4mm hose ref: H058)
Compatible servos: Hitec HS-53 and HS55
Dimensions (without fittings and servo): 44x25x48mm
Supplied without clamping rings (see "accessories" tab below)
4-way valve = for controlling 4 hydraulic movements
Designed for pressures from 12 to 16 bar
