Pulley 20 teeth, No 2.5mm
Pulley 20 teeth, for belt notched at a step of 2.5mm
Reference : ACVE209513
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ01

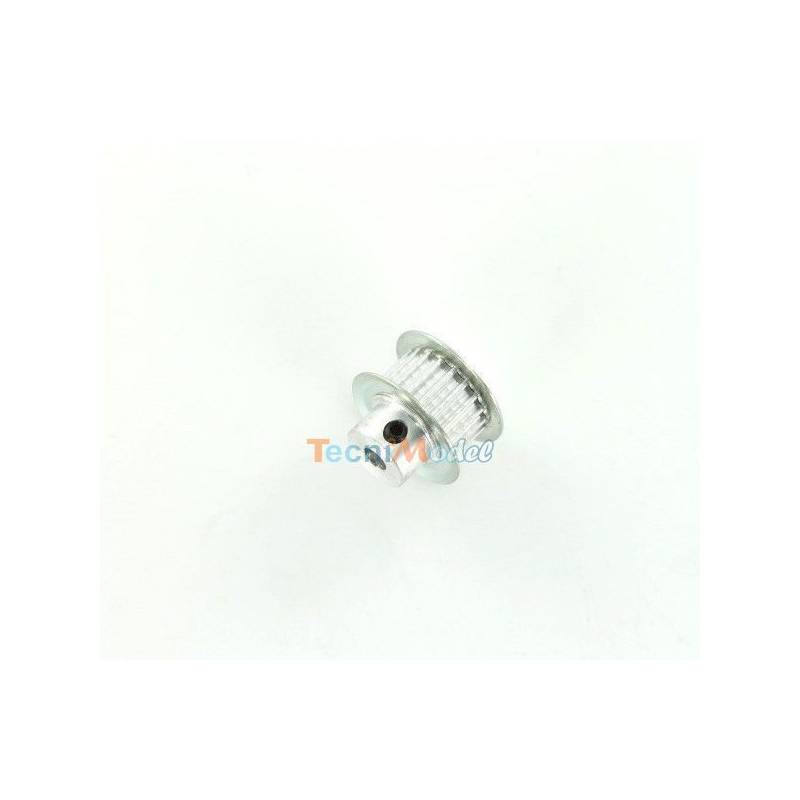

Pulley 20 teeth
In dural. Pitch of 2.5 mm. With guide flanges for the toothed belt
Clamping by a hexagonal thumbs-up screw

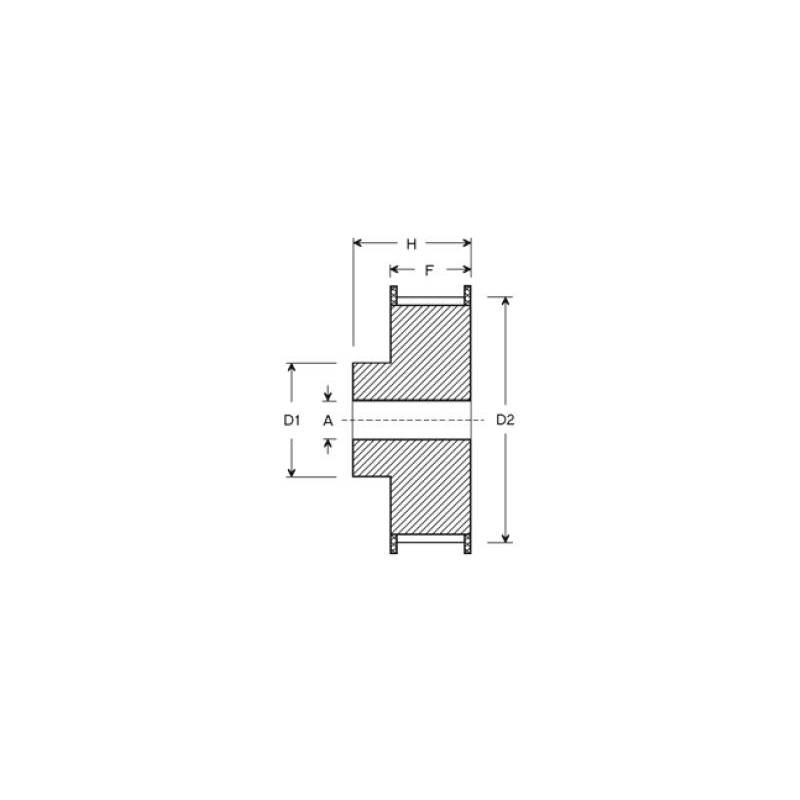

- Number of teeth: 20
- Inner diameter (A): 4mm
- Tooth width (F): 8mm
- Total width (H): 16 mm
- Shoulder diameter (D1): 10.5mm
- Primitive diameter (D2): 15.4mm
- Outer diameter: Ø20mm
