Toothed pulley 60 teeth for belt not 2.5mm
Toothed pulley 60 teeth for belt not 2.5mm
Reference : ACVE209517
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ01

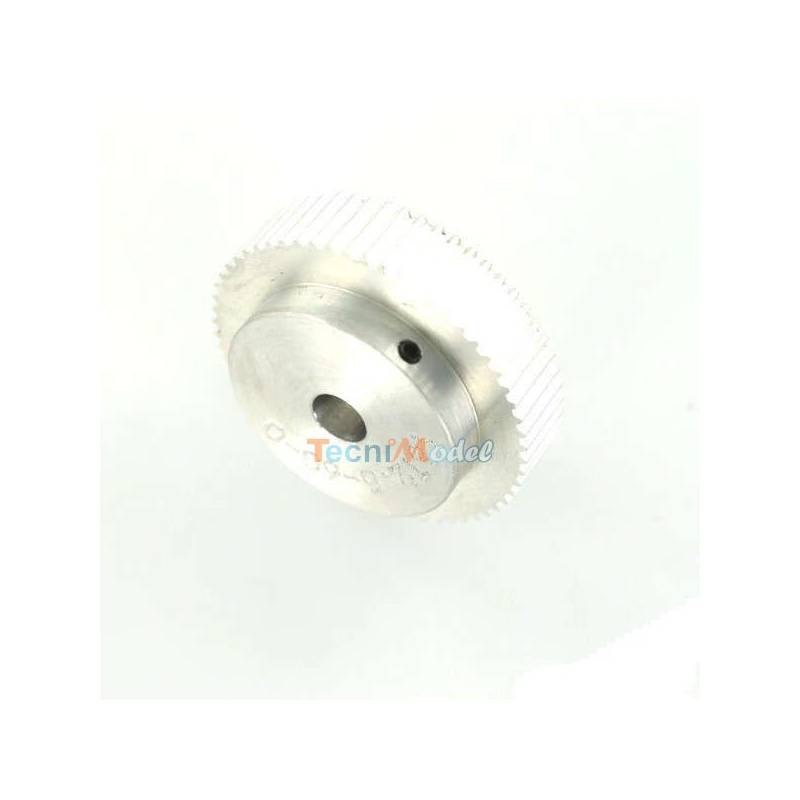

Toothed pulley 60 teeth
In dural.
Pitch of 2.5 mm.
WITHOUT guide flanges for toothed belt
Clamping by pointed screw with hexagonal imprint M3
Number of teeth: 60
Inner diameter (A): 8mm
Tooth width (F): 8mm
Total width (H): 16 mm
Shoulder diameter (D1): 12mm
Primitive diameter (D2): Ø47.25mm
Outer diameter: Ø38mm
