Pulley 30 teeth, No 2.5mm
Pulley 30 teeth, for belt notched at a step of 2.5mm
Reference : ACAE209515
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ01

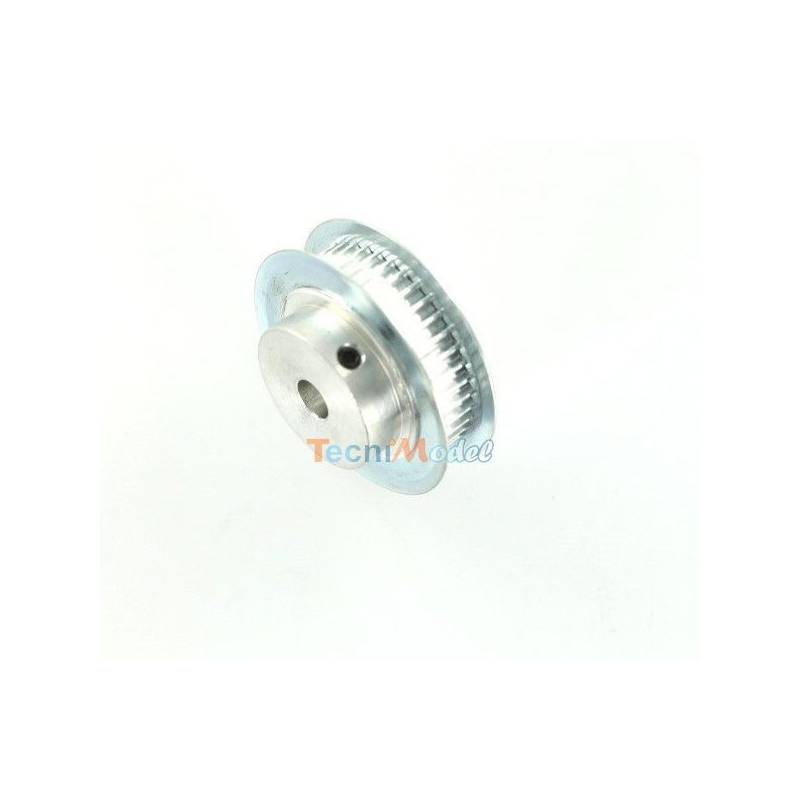

Pulley 30 teeth for belt notched at a step of 2.5mm
Ref 209515
In dural. Pitch of 2.5 mm.
With guide flanges for the toothed belt
Clamping by a hexagonal thumbs-up screw

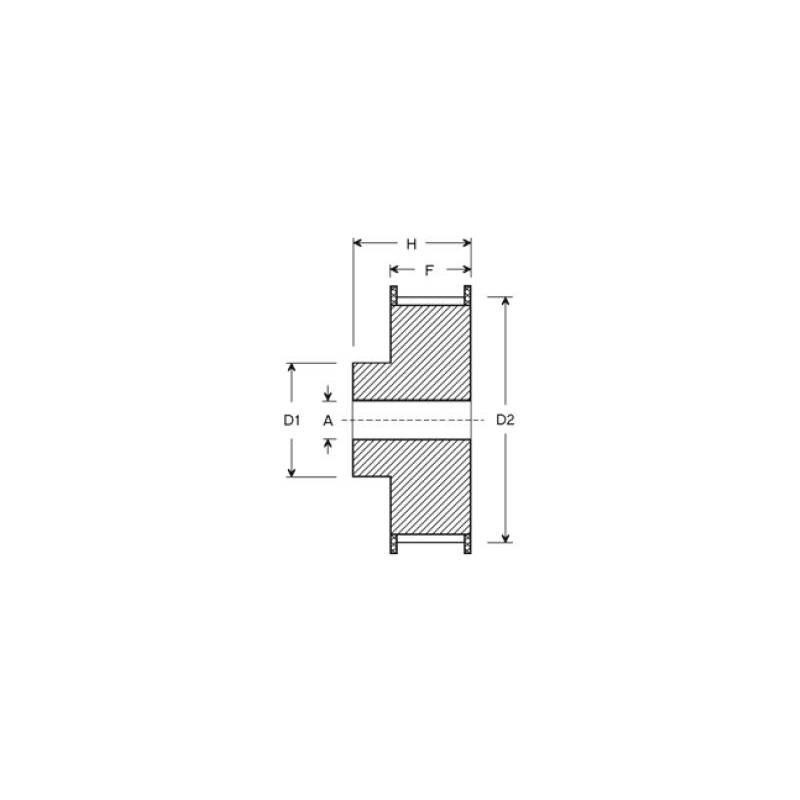

- Number of teeth: 30
- Inner diameter (A): 6mm
- Tooth width (F): 8mm
- Total width (H): 16 mm
- Shoulder diameter (D1): 16mm
- Primitive diameter (D2): 23.4mm
- Outer diameter: Ø28mm
- Tightening by screw M3x5mm
