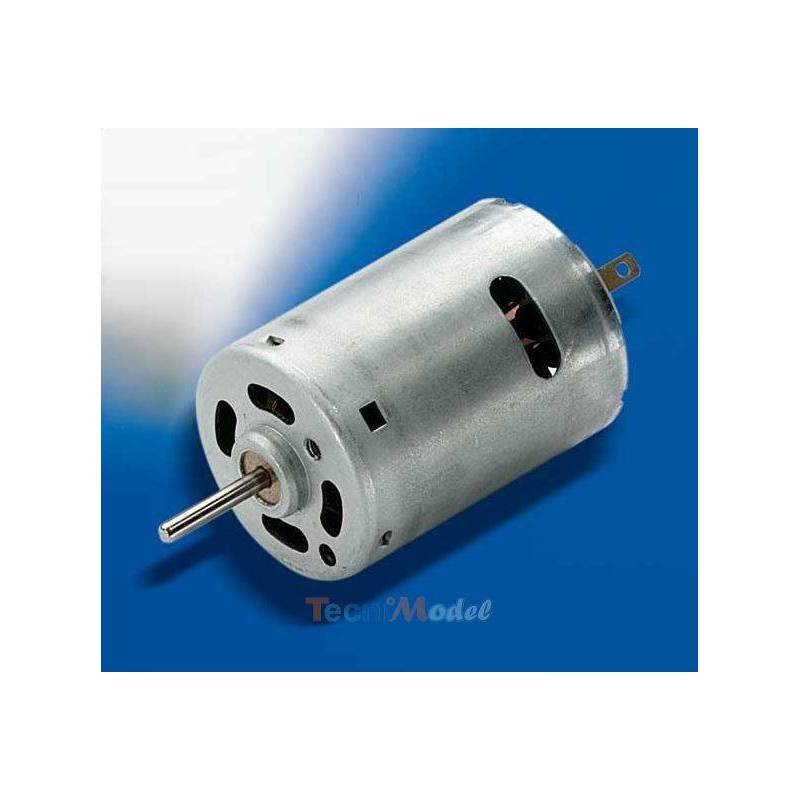

MAX Power 450 electric brushed motor
KRICK 42242
Small, powerful electric motor with low weight.
The motor is used, for example, in the Yacht model Lisa M. ref KBKR20320 with a 7.2V battery.
Use two M2.5 screws to fix the motor. And adapt the length of the screws according to the thickness of the motor support used (thickness + 2mm Max).
Technical specifications:
- Rated speed: 11500 rpm at 12V
- Nominal voltage: 12v
- Voltage range: 3V to 24V.
- No-load current: 0.4A
- Max. output current: 2.4A
- Stall current: 16.0A
- Shaft diameter: Ø2.3mm
- Body diameter: Ø30mm
- Body length: 46.5mm
- Weight: 100 g
