MAX Power 400 electric brushed motor
KRICK 42116
High-performance 5-pole DC motor.
Versatile use for all model-making applications.
The screws used to secure the motor are M2.5.

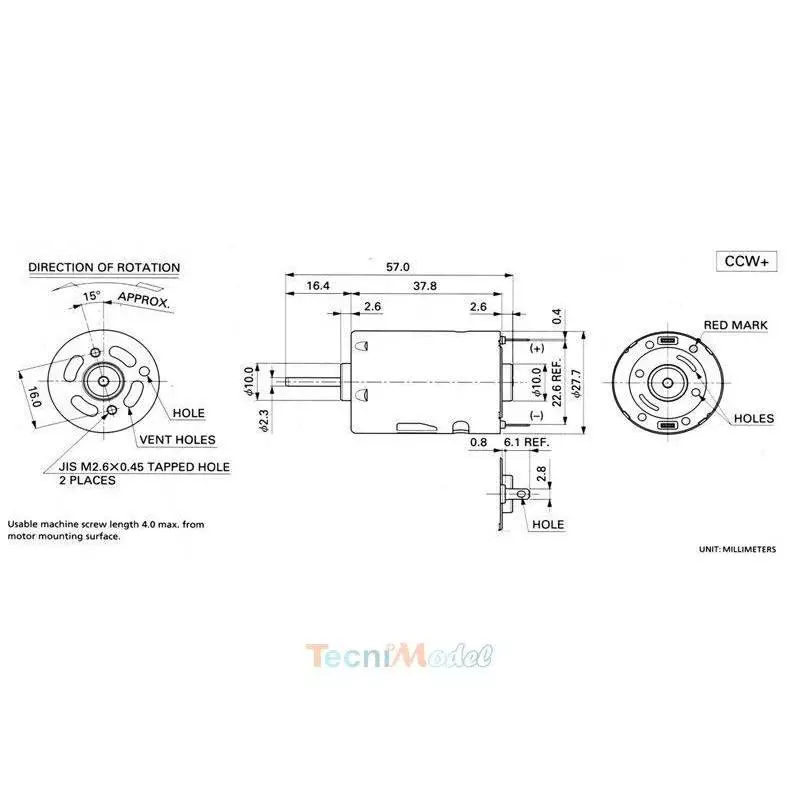

Technical specifications:
- Motor diameter: Ø27.5mm
- Housing length: 43mm
- Overall length: 61mm
- Shaft diameter: Ø2.3mm
- Shaft length: 13.5mm
- Nominal voltage: 7.2V
- Speed (7.2V): 7500rpm
- Operating voltage: 3V-9.6V
- Number of poles: 5
- Speed range: 3125-10000 rpm
- No-load current: 0.3A
- Max. output current : 2.3A
- Stall current: 5.9A
- Weight: 71g
- Motor type: 385 SH
