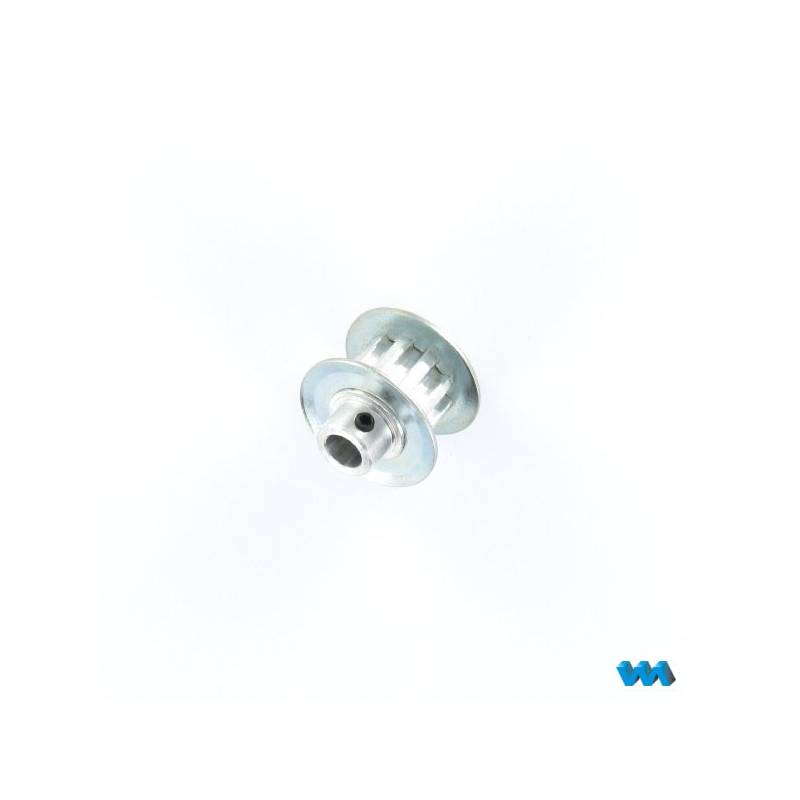

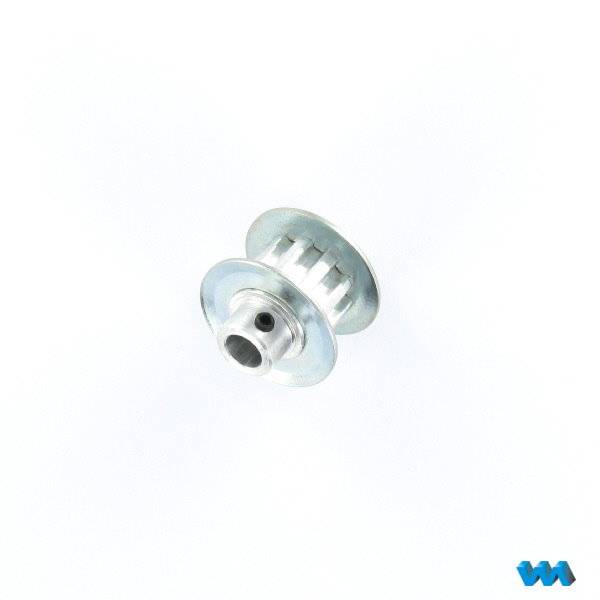

Toothed pulley 10 teeth 5.08mm pitch
A 10-tooth aluminum timing belt pulley with 5.08mm pitch and cover flanges on both sides.
Reference : ACVE226106
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ01
10-tooth toothed pulley for toothed belt with 5.08mm pitch
Supplied with one aluminium toothed pulley and one M3x5 fixing screw.
Features:
- Material: Aluminium
- Number of teeth: 10
- Tooth pitch: 5.08
- For shaft diameter: Ø6mm
- Outside diameter: Ø23mm
- Width: 21mm
- Tooth width: 10.5mm
| Manufacturer | Veroma |
|---|
