Pulley 12 teeth not 5mm for belt of 9.8mm
Pulley 12 teeth, not 5mm for belt of 9.8mm
Reference : ACMF919D7/12
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ01

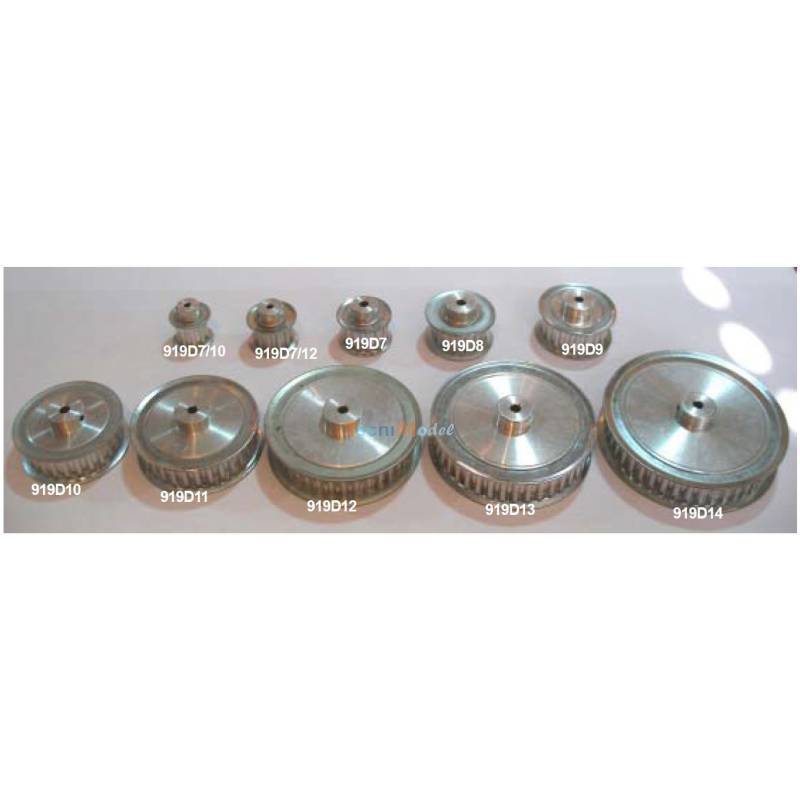

12-tooth pulley for notched belt
Ref 919D7/12
not 5mm
for belt 9.8mm wide
Ø3mm bore
Tooth diameter: Ø18.25mm
Tooth width: 12mm
Total width: 21mm
Shoulder diameter: Ø12mm
See attached PDF file for more information ("download" tab above)
MFAbelt_pulleys.pdf
Info MFA of pulleys and toothed belts
