Trailer axle with brakes for Tamiya wide rims
SCALE-PARTS SP-03-04-021-02

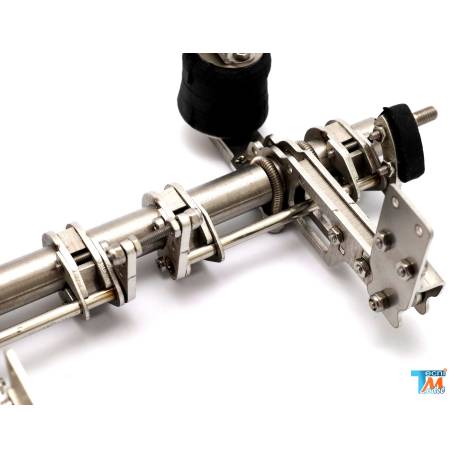

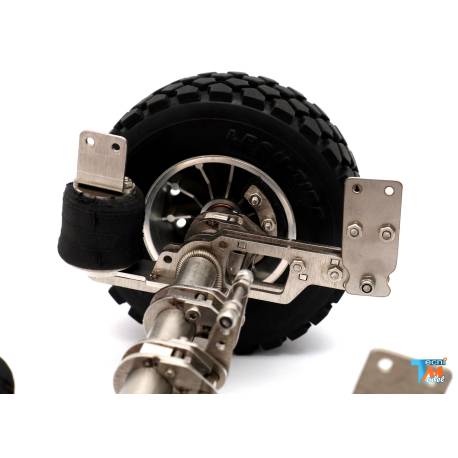

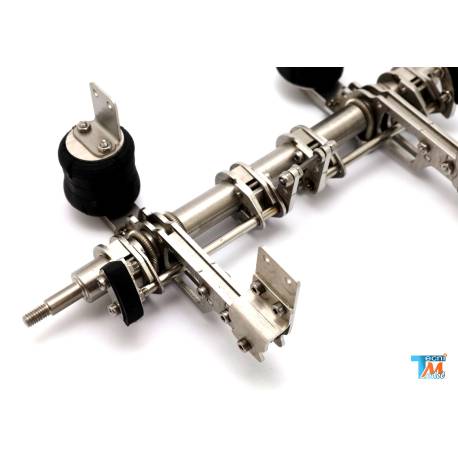

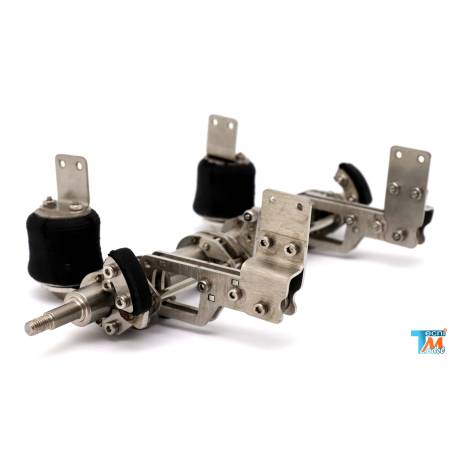

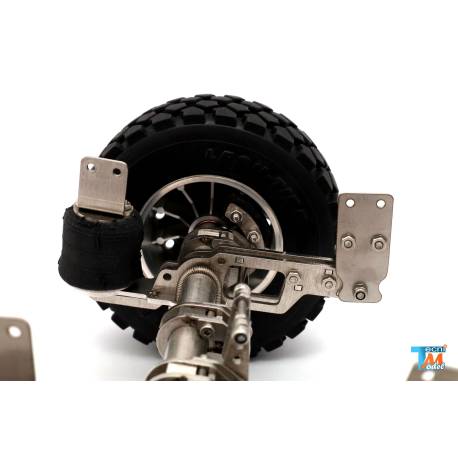

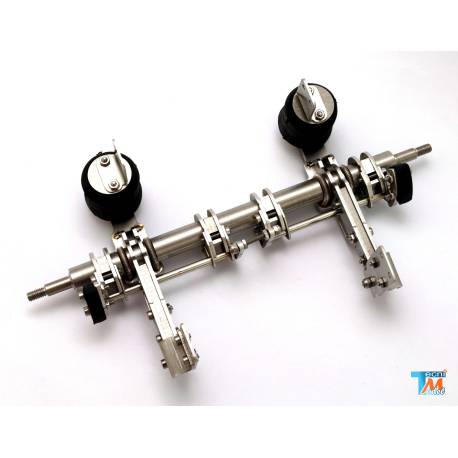

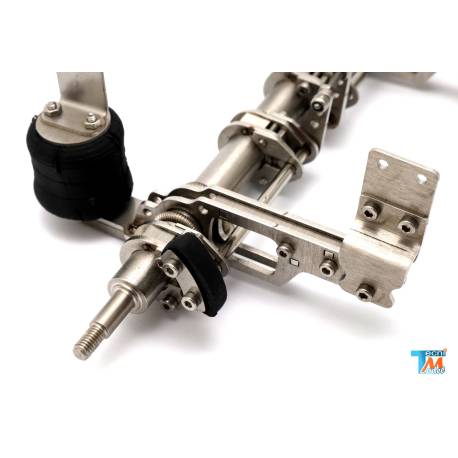

1/14-scale trailer axle with mock-up air suspension and a functional brake system for Tamiya wide rims. The assembly is made of stainless steel and comes fully assembled.
The brake control must be operated by a servo (be sure to adjust its travel properly to avoid unnecessary strain on the servo).
Assembly requirements: 8 M2 screws to secure the axle to the chassis and 2 M4 Nuts s for the wheels s (not included).
The wide rims for this axle are sold separately (see the "Accessories" section below).
Specifications:
- Axle width with Tamiya wide wheels : 177mm
- Bearing center distance: 141mm
- Weight: 228g
- For 78mm-wide chassis
Contents:
- 1 stainless steel axle
- 2 mock air spring bellows, Ø21mm, with mount
- 2 Stainless steel brackets for mounting to the chassis
- 2 Stainless steel axle brackets
- 2 Stainless steel and rubber brake shoes
- 2 Stainless steel control rods and linkages
Recommended accessories:
| Material | Stainless Steel |
|---|---|
| Scale | 1/14 |
