Trailer axle with dummy air bags Carson
Trailer axle with dummy air bags Carson. Two suspension heights are available (standard or +8mm).
Reference : PCCAC500907643
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AS06
Trailer axle with dummy air bags
Carson 500907643

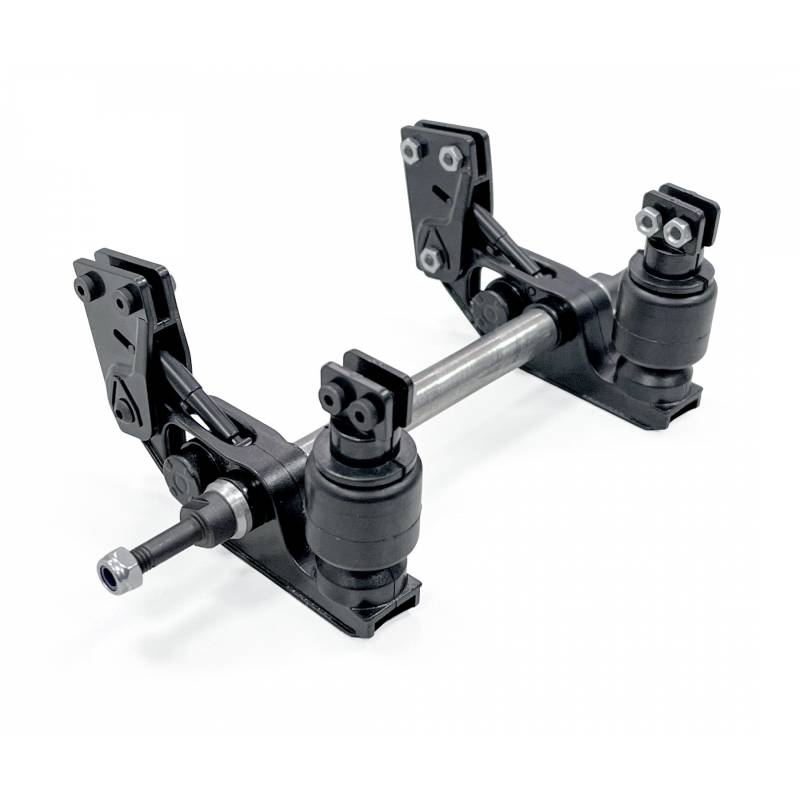

The new generation of CARSON trailer axles is equipped with dummy air springs and supplied with +8mm suspension risers.

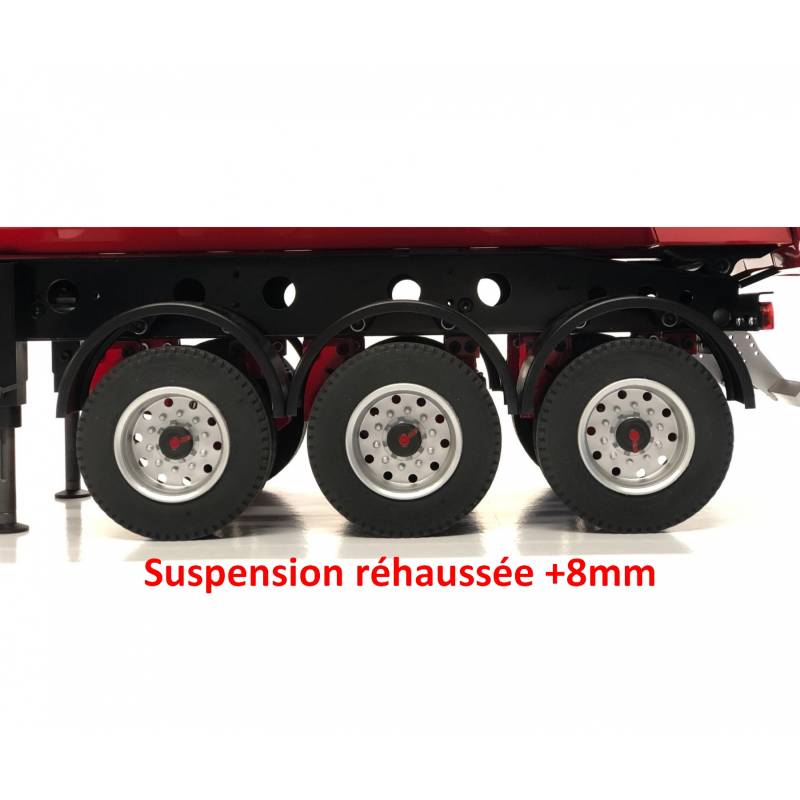

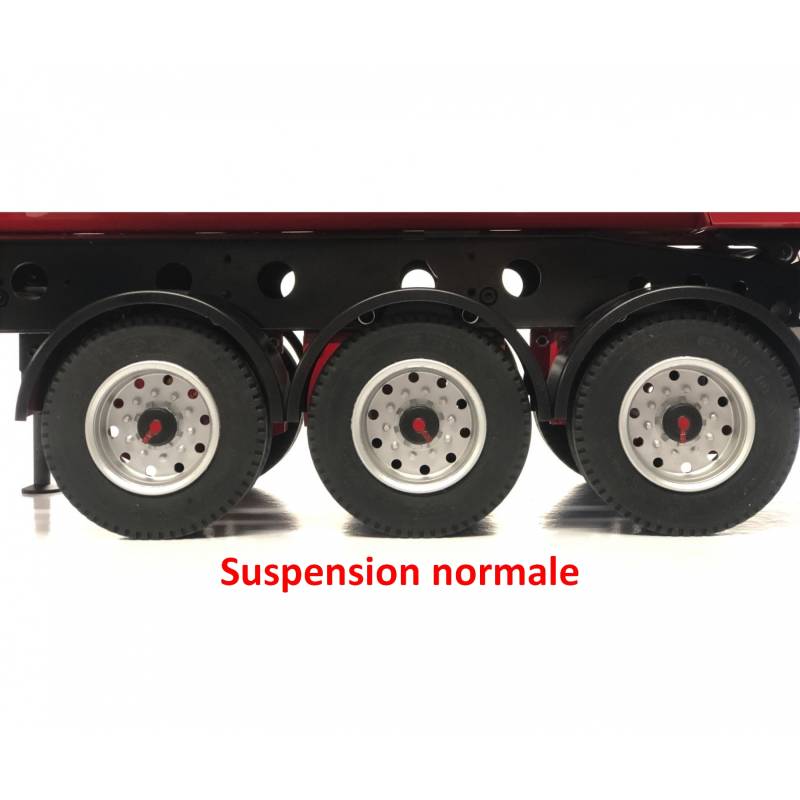

The new, softer, rubber bellows absorb bumps better and offer a driving experience absolutely faithful to the original. The two suspensions included (standard and with +8mm extension) allow the trailer height to be adapted to the tractor's fifth wheel.
Can be fitted with wide single wheels (see "accessories" tab below). Wheels mounted by 11x5x4 bearings (not includeds).
Technical specifications :
- Dimensions: 165x78x50mm
- Standard travel: 6mm
- Deflection with risers: 14mm
- Standard cross axle: approx. 6mm
- Cross axle with risers: approx. 10mm
- Axle load capacity: approx. 5kg
- Wheel axle: Ø5mm

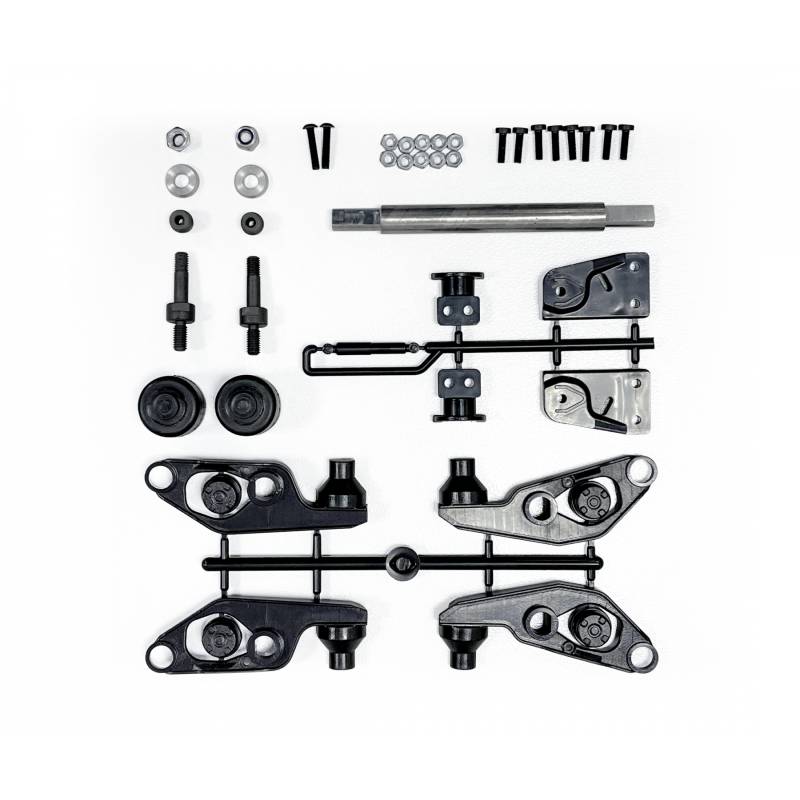

Delivery contents: Trailer axle with risers, assembly parts, accessories, assembly instructions.
