LED flash light bar + flash module for the Tamiya Volvo FH16 tow truck
LED flash light bar + flash module for the Volvo FH16 tow truck of Tamiya (56362)
Reference : PCSH43893
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AF05

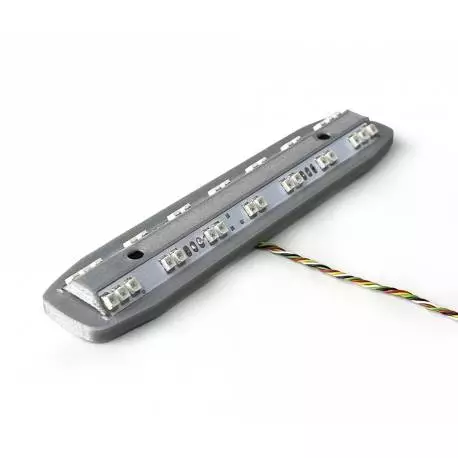

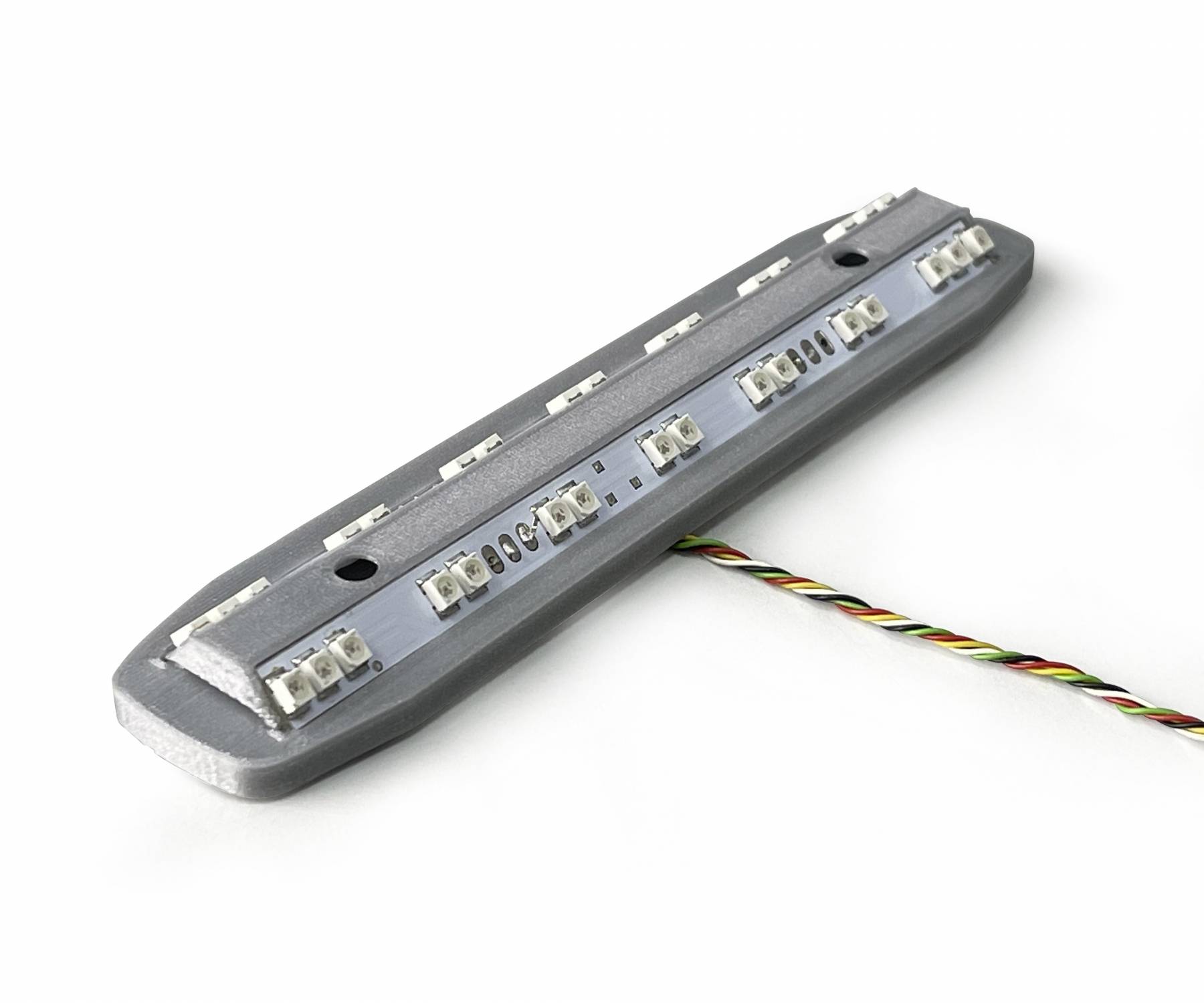

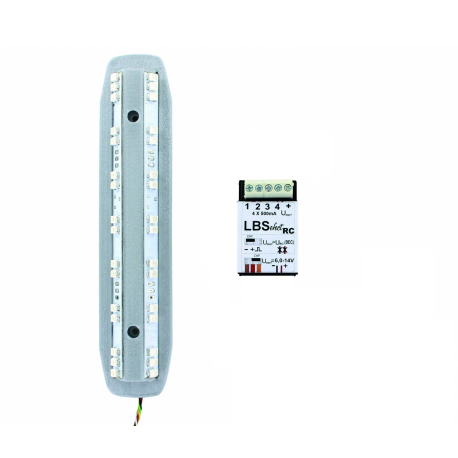

LED flash light bar + flash module for the Tamiya Volvo FH16 tow truck

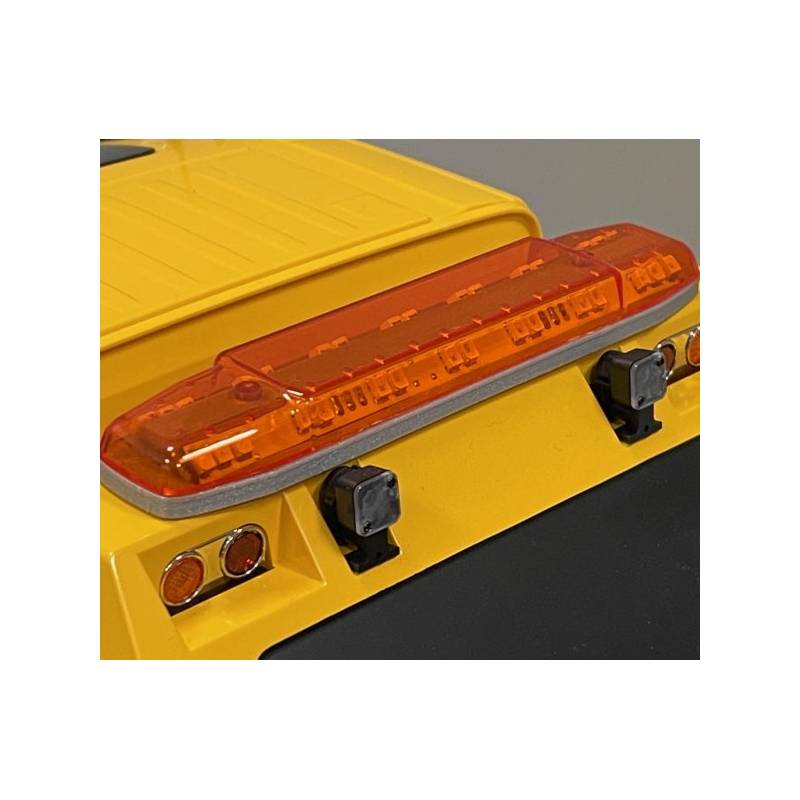

Designed for the Volvo FH16 tow truck (Tamiya 56362), it can also be installed on other models (in which case the glass panel, Tamiya part no. 9006849, is required).
Two programs are preset at the factory and can be selected at any time using the remote control.
Using a 3-position switch (on-off-on), you can control the two preset programs via the transmitter.
The flash module offers a total of 10 different lighting patterns (warning lights / strobe effects).
Operating voltage via 5–5.5V BEC or an external power source of 6V to 14V.
Caution: For an input voltage of 12V or higher, solder the supplied diode to the + output of the LBS module, ensuring correct polarity (see instructions).
Requires a patch cable for connection to the receiver (see the "Accessories" section below).
Specifications:
- External supply voltage: 6V to 14V
- BEC supply voltage: 5V to 5.5V
- Module output current: 4x380mA max
- Length: 130mm
- Width: 27mm
- Height: 13mm (excluding the clear glass)
Recommended accessories:
| Voltage (V) | 6V to 14V |
|---|
