Lighting and sound module for RC truck 1/14 - 1/16

Light and sound module for RC 1/14 - 1/16 trucks

Light and sound module designed for Volvo FMX RC 1/14 trucks.

Compatible with any vehicle equipped with radio control. The module connects directly to the receiver, in parallel with the ESC of the propulsion engine, with the steering servo, and in parallel with the dump lift system if fitted, to simulate a load on the engine.

The module replicates the sound of the engine, with variations in speed depending on the movements actuated. It incorporates 3 different engine sounds depending on the vehicle to be equipped. The engine type is easily set at the touch of a button on the module.

The module also features 21 sockets for lighting, including 19 current-regulated sockets (like an Tamiya MFC system) and 2 sockets without current limitation, for front and rear LED boards. The functions of the 19 sockets are detailed below.

Does not include wired LEDs. Please note: Lesu lighting systems are compatible with this system, but the polarity of the sockets is reversed. You will therefore need to change the order of the wires in the lighting sockets.

Powered by receiver or battery (LiPo 2S - 7.4V), depending on installation. Cables supplied.

No mixing required in the remote control.

All movement sounds are progressive and in phase with the actuated movement.

Volume control from remote control.

Sounds played :

• Horn
• Start/stop sound
• Increase engine rpm depending on the movements actuated
• Turn signal noise
• Braking noise
• Reversing beep

Light functions and sockets :

• Daytime running lights (2 sockets)
• Night lights (2 sockets)
• Low beam (2 sockets)
• High beam (1 socket)
• Turn signals / Warning (4 sockets per side)
• Stop lights (2 sockets)
• Reversing lights (2 sockets)


• Front wiring harness for LED boards
• Rear wiring harness for LED boards

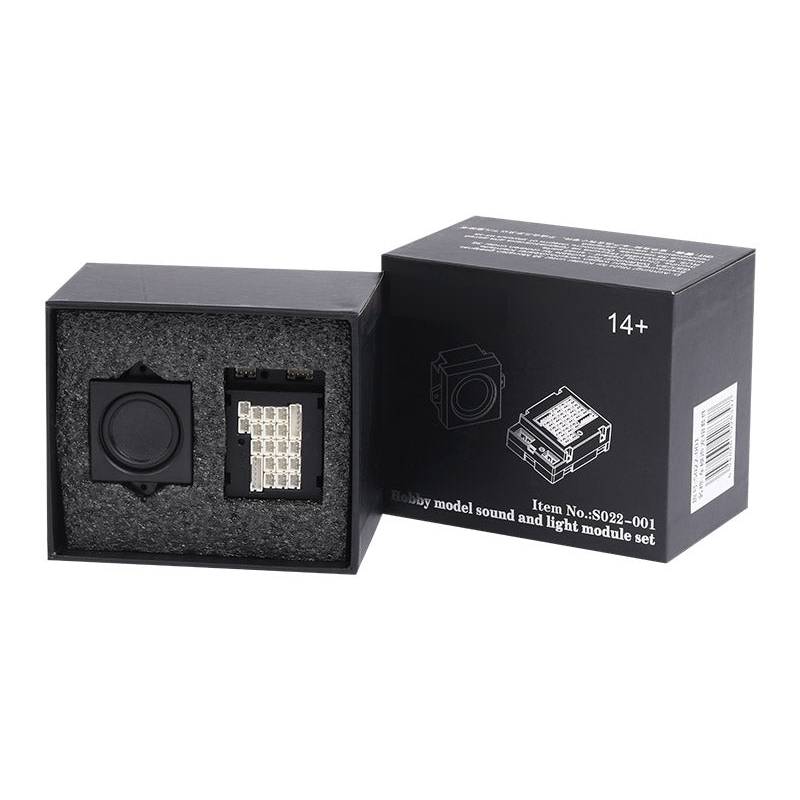

Scope of delivery :

• Sound and light module

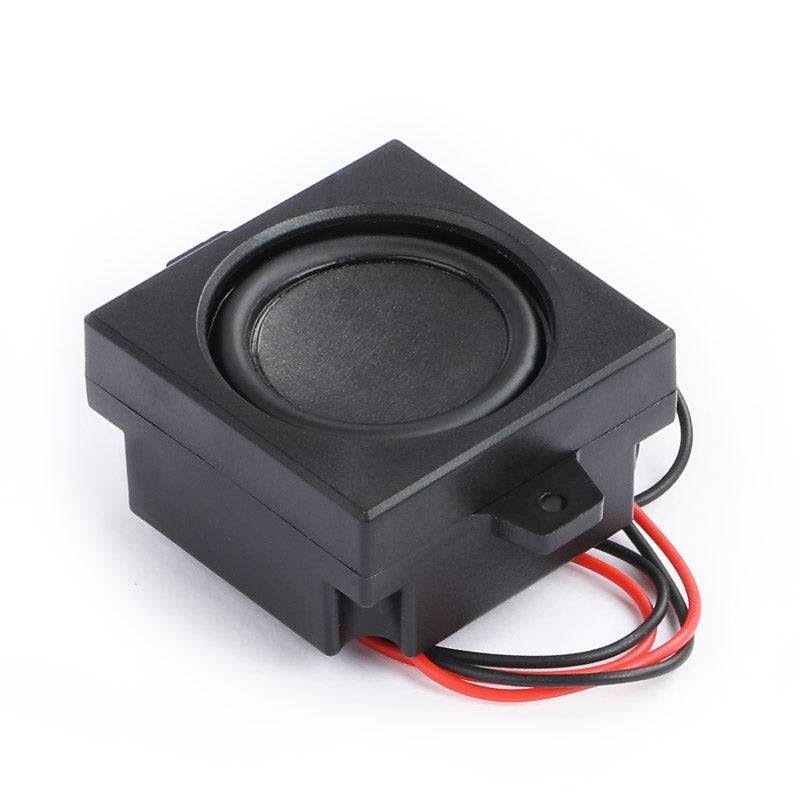

• Loudspeaker
• Wiring kit
