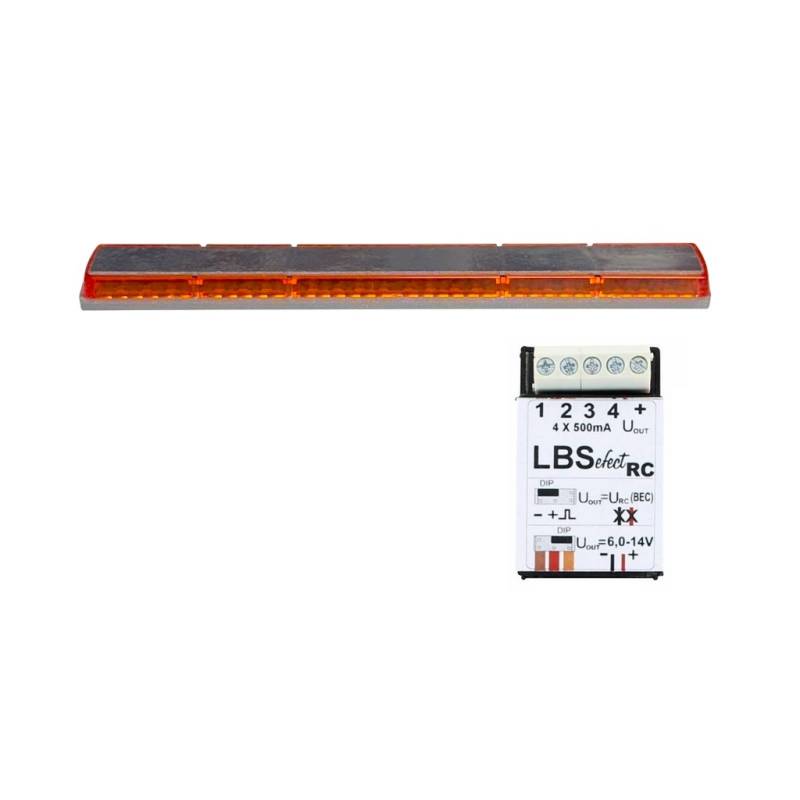

Flash ramp for 1/14 RC truck 7.2V and 12V with LBSefect
Flash ramp for 1/14 RC truck, supplied with LBSefect module.
Reference : PCSH46326
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AF14
Flash ramp for 1/14 RC truck 7.2V and 12V
Supplied with LBSefect electronic module

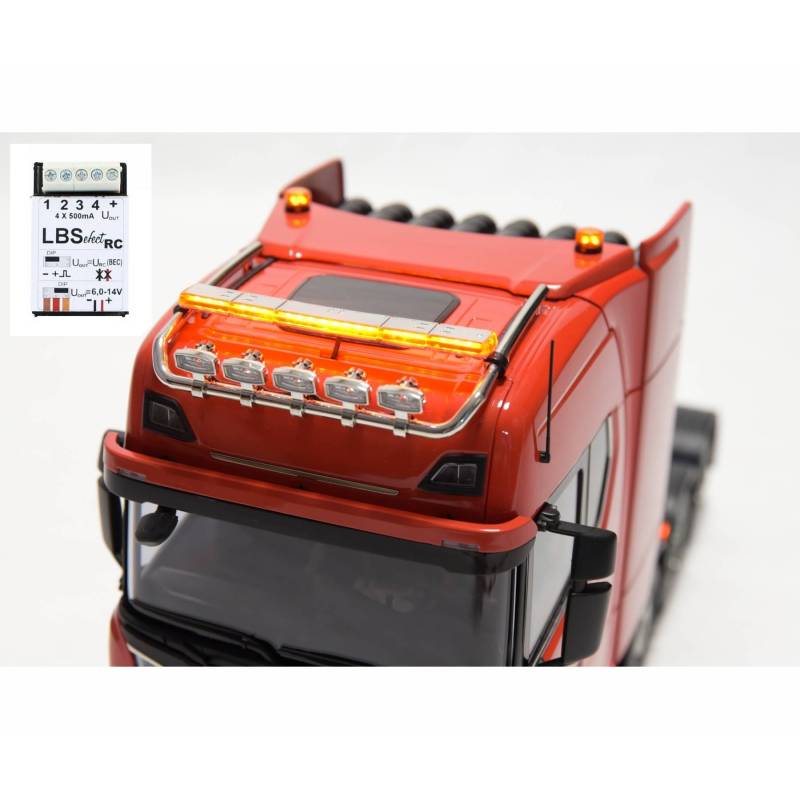

Flash bar for 1/14 RC truck roof 7.2V and 12V. Plastic glazing from Scania 770 S 8x4 heavy-duty tractor Tamiya (56371).
The LED bar features 4x4 sections of orange LEDs, for a total of 40 LEDs. Supplied with 300mm cables.
The top element is smooth and has a mirror-like finish.
Two programs are preset at the factory and can be selected at any time from the remote control.
A 3-position switch (on-off-on) can be used to manage the 2 preset programs via the transmitter.

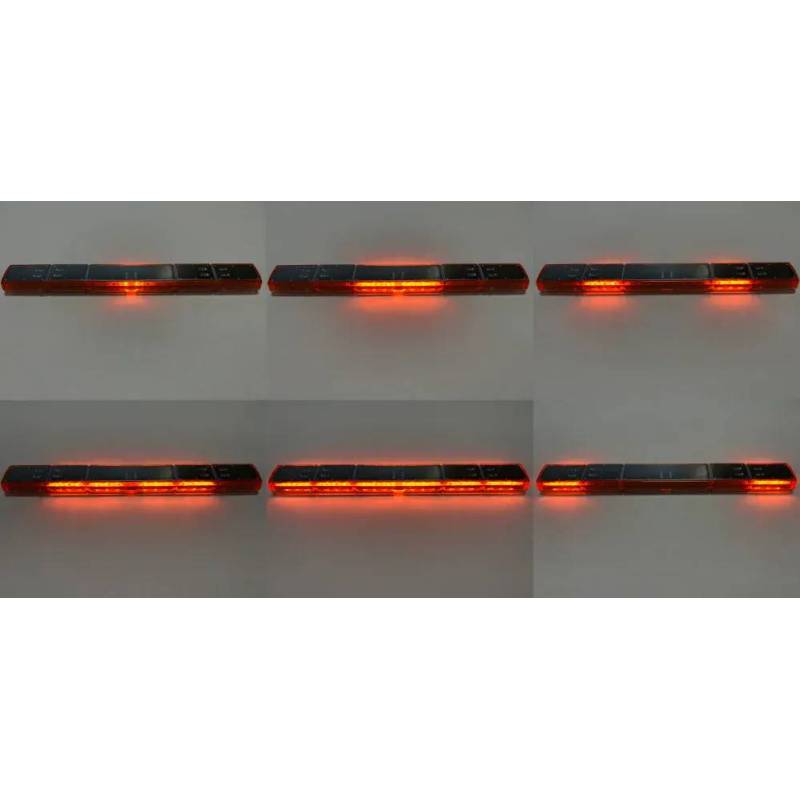

The flash module offers a total of 10 different light simulations (warning lights / strobe effects).
Operating voltage via BEC 5.0-5.5V/DC or external power source 6.0-14.0V/DC.
Caution: For input voltages of 12V or more, install the supplied diode on the + output of the LBS module, observing the correct polarity (see instructions).
Requires patch cord for connection to receiver (see "accessories" section below).
Dimensions :
- Length: 124.5mm
- Width: 15mm
- Height: 7.3mm
Features :

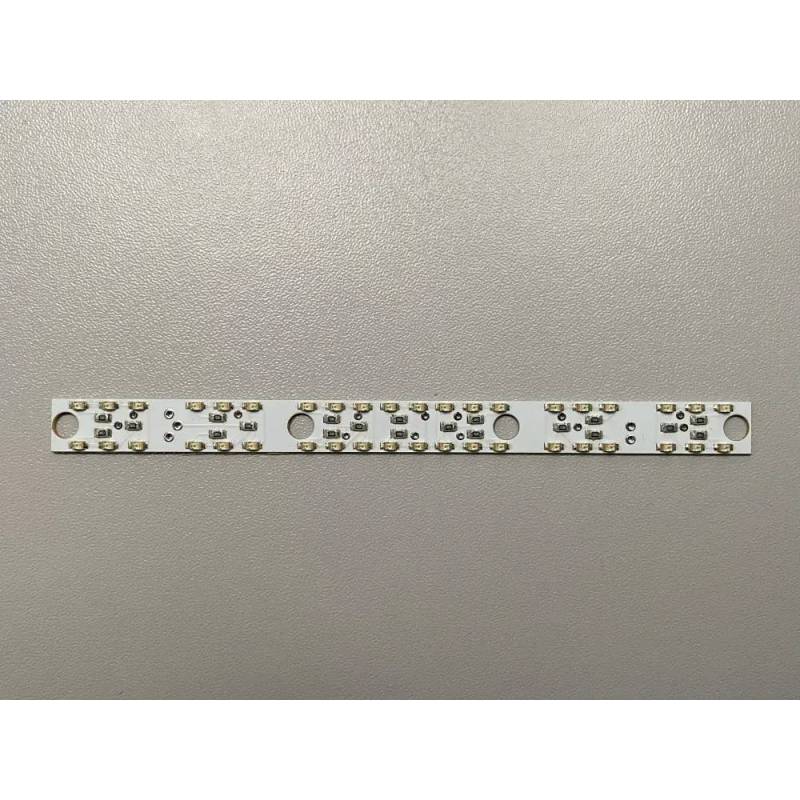

- PCB with 40 LEDs
- Connection cables approx. 300mm long
- Suitable for 7.2V or 12V supply voltage
Does not include the brackets for attaching to the light bar shown in the presentation photo
Recommended accessories:
| Voltage (V) | 7.2 V - 12 V |
|---|---|
| Color | Orange |
