Steam engine for Krick Anna 2

Steam engine for Krick Anna 2

Krick 20215

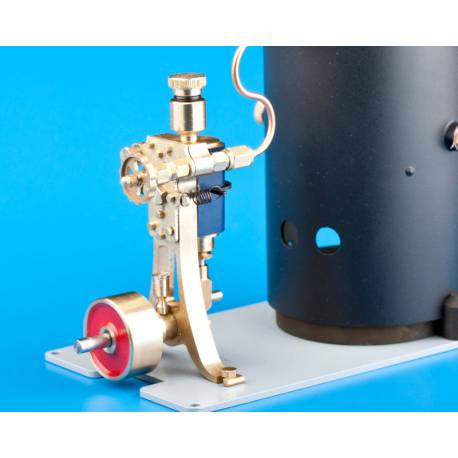

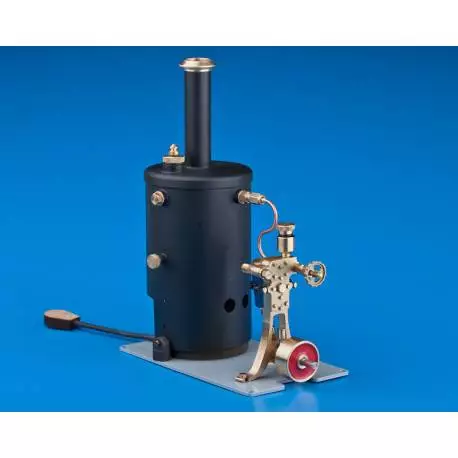

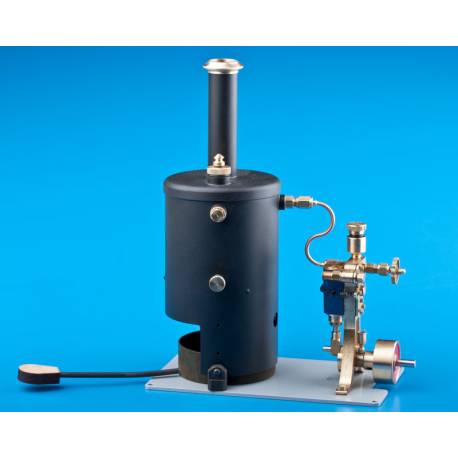

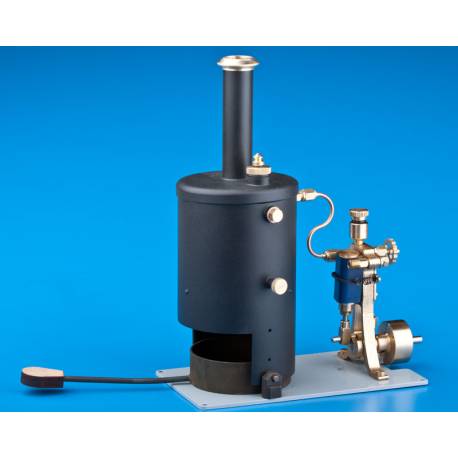

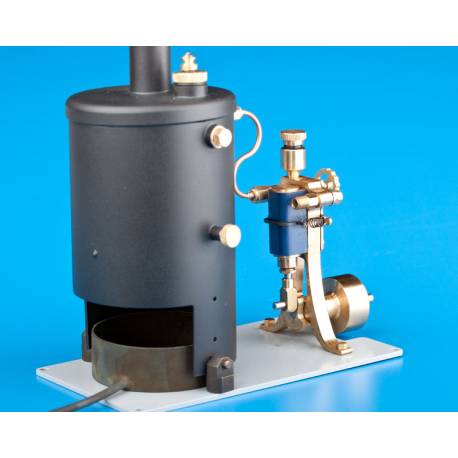

This single-cylinder steam engine was developed primarily as a propulsion system for the Anna 2 steamboat from Krick. With its compact design and vertical boiler, the steam engine is a real eye-catcher and a technical highlight for the small steamboat. Of course, the engine is also suitable for other boat models approximately 50 cm long or weighing 1–2 kg.

The steam engine is delivered fully pre-assembled. The boiler is completely welded, pressure-tested, and painted. The steam line is already installed. Operation has been deliberately kept very simple. Fill the boiler with water, heat it up, and start the engine using the flywheel. The small flywheel allows you to adjust the amount of steam, and off you go. “Esbit” tablets are used as fuel.

 This steam engine is a simple model: it is not radio-controlled, and the speed is adjusted using a small handwheel on the boiler. There is no reverse gear.

What’s included:

• Steam engine with boiler mounted on a base plate
• Burner with handle
• Evaporation tube with Nut-connector
• Steam engine oil
• Syringe for filling with water
• Manual

Technical Specifications:

• Base plate dimensions: approximately 135x70mm
• Total height: approximately 170mm
• Approximate total length: 182mm
• Steam engine height: approx. 83mm
• Width of the steam engine: approximately 54mm
• Empty weight: approx. 600g
• Output shaft diameter: Ø4mm
• Output shaft height measured approximately 15mm from the bottom plate

Recommended accessories:

• "Esbit" fuel tablets
• Steam engine oil
