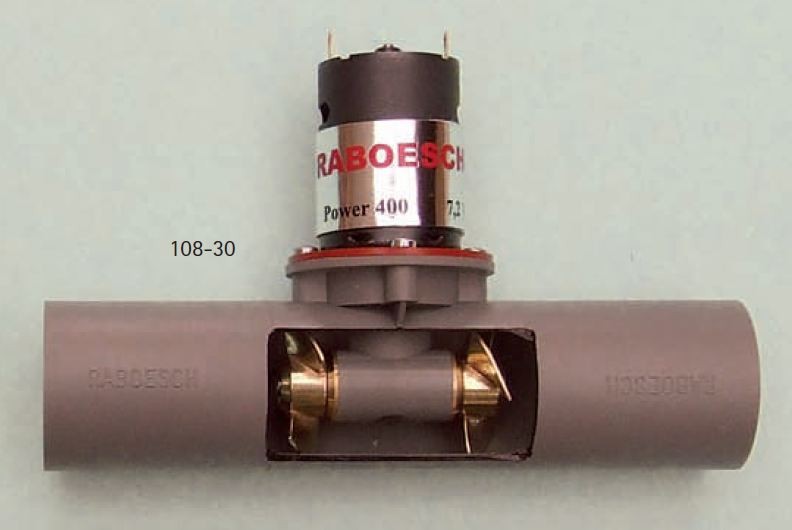

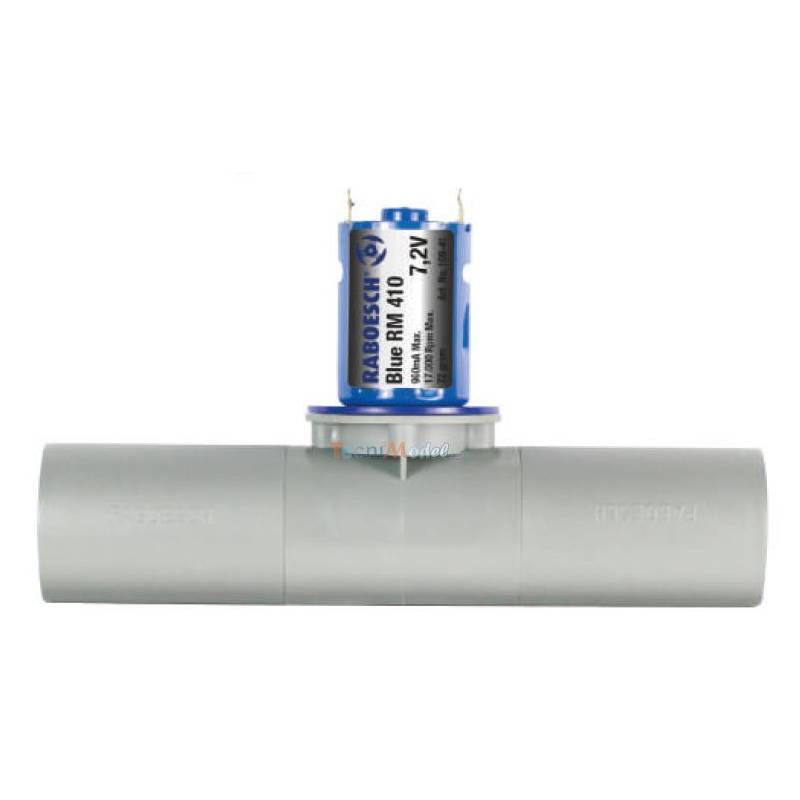

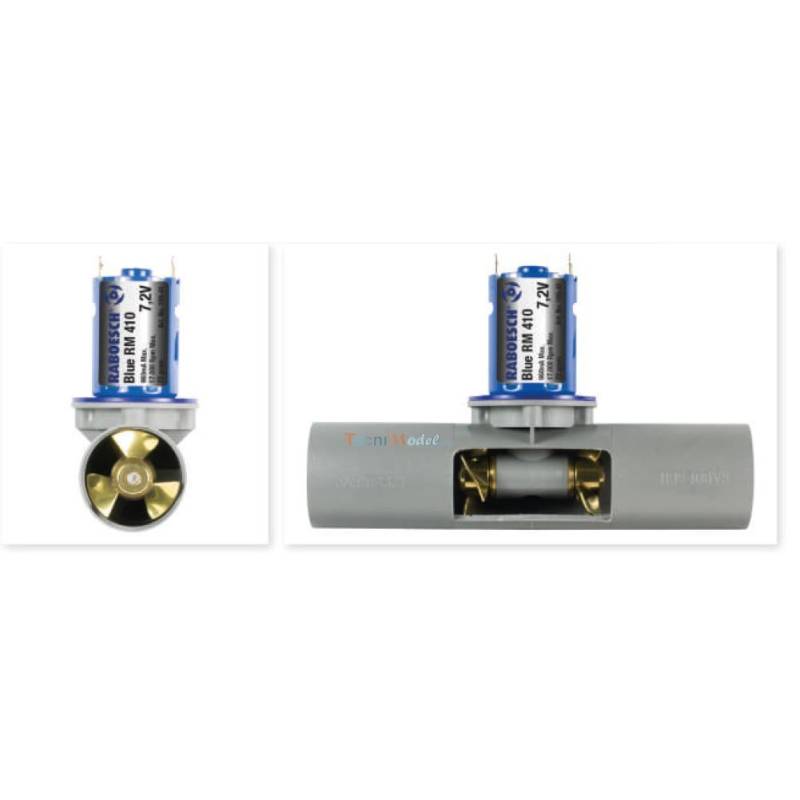

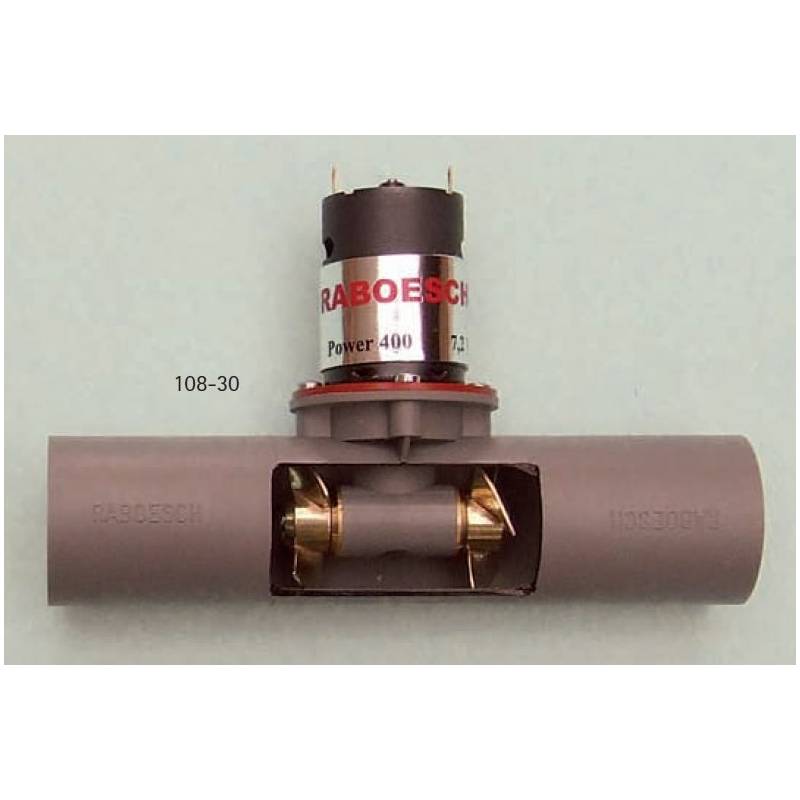

Waterproof bow thruster Ø30mm

Ref Raboesch 108.30

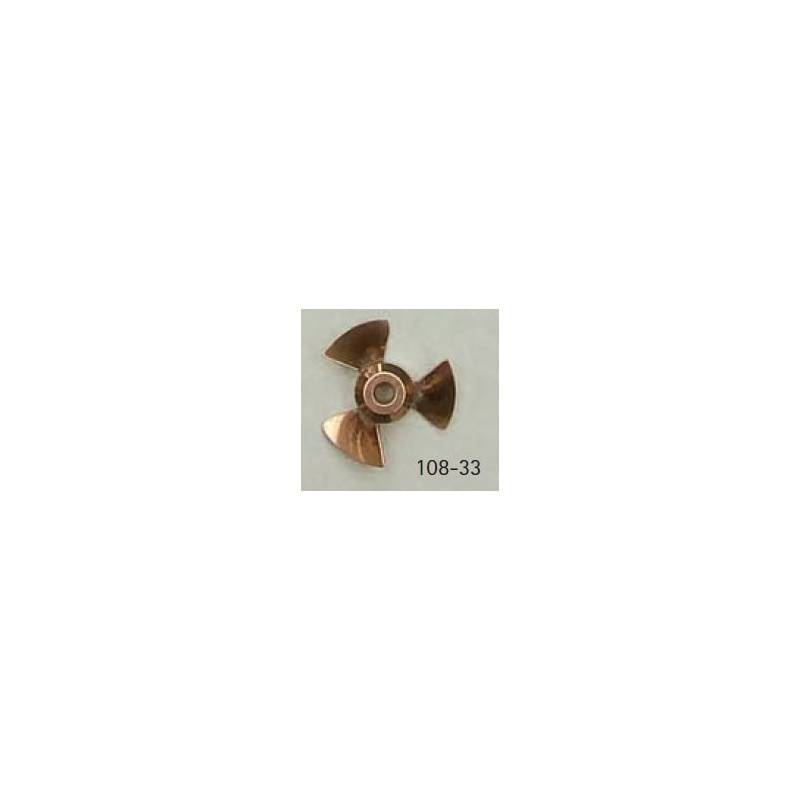

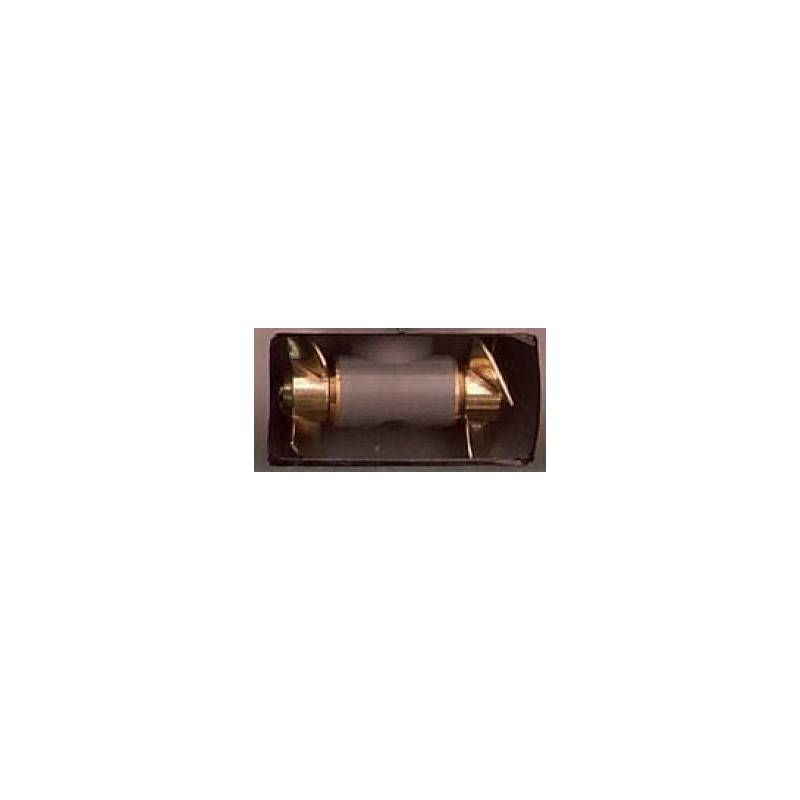

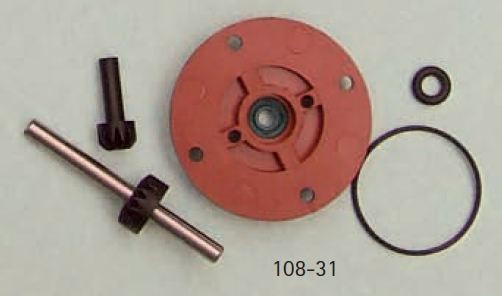

Bow thruster with 2 propellers. Waterproof by gasket G (joint "spi").

Use an Electronic Speed Controller (ESC) to control the motor (Do NOT use an all-or-nothing control)

Do not run the thruster dry which would damage the seal.

Nozzle diameter: 30/33mm.
The gears are lubricated with water.

Engine body length: 48mm.

Total length: 148mm.

Total height: 65mm.

Weight 150 gr.

Power supply: 6 to 7.2v

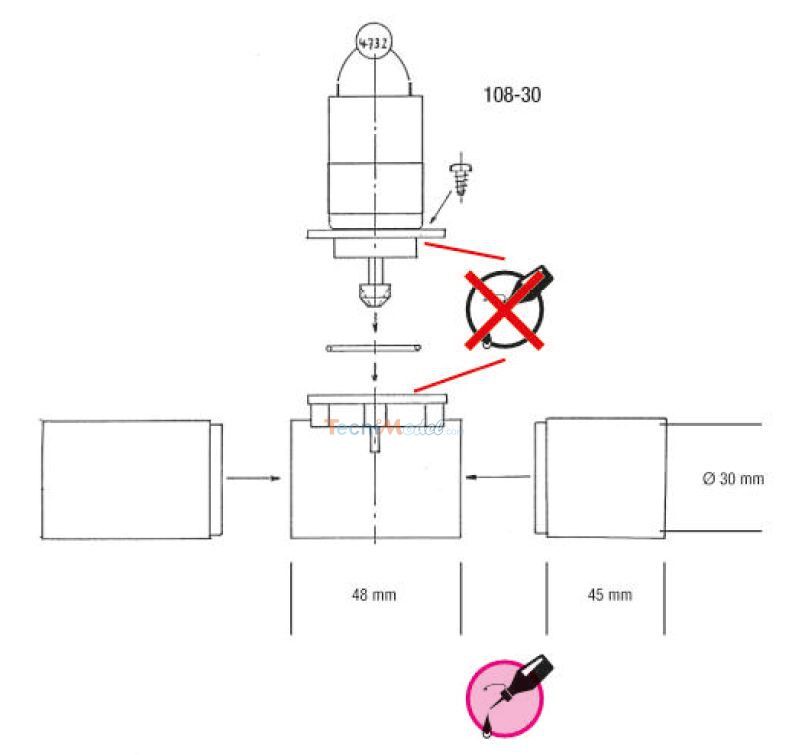

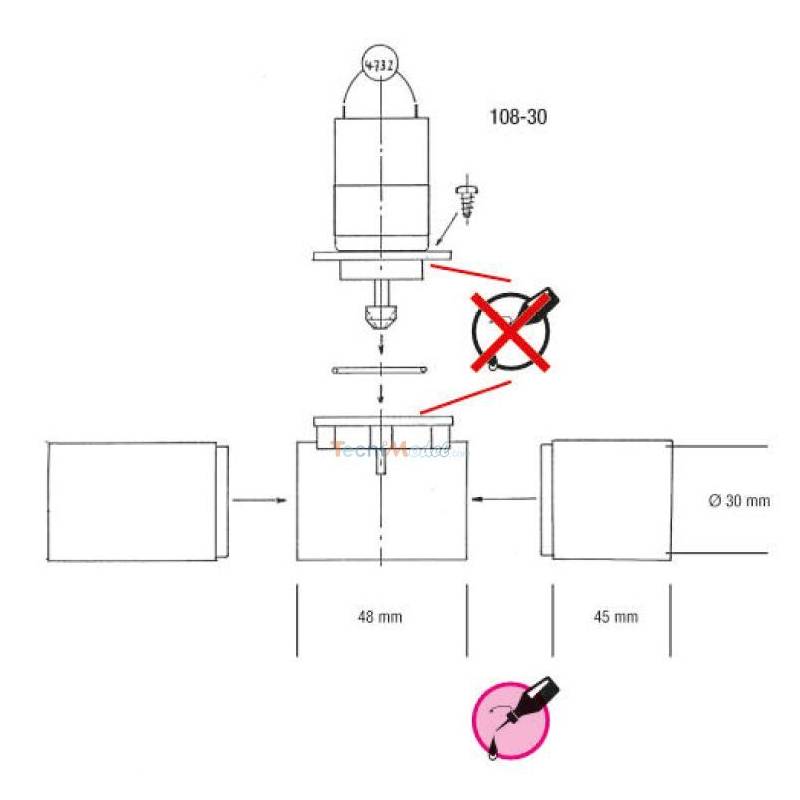

See download file for full dimensions.

Power 400 electric motor (7,2v):
RPM 17.000 – off load.
Intensity : 0.5 Amps – Blocking intensity: 20 Amps.
Yield: 78%.
Engine axis: 2.3 x 12 mm.
Weight: 72 Grams.

Aero-Naut 702028 reference
