MAX Marine S282 3500KV brushless motor
MAX Marine S282 3500KV brushless motor
Reference : MOKR42441
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB02
MAX Marine S282 3500KV brushless motor
Krick 42441
High-speed MAX Marine brushless motor suitable for direct drive boat models.
Suitable as a drive motor for Mini-Jet 20 propulsion ref: ACKR65355 at 7.2-7.4V. For operation at 11.1-12V, care must be taken to ensure adequate cooling during operation.
The MAX Marine motor series has been specially designed for boat models, and with their fan function for additional air cooling, these motors dispense with water cooling.
Technical specifications:
- Type MAX Marine S282
- Voltage range: 6 - 14.4V
- Speed (rpm/Volt): 3500rpm/V

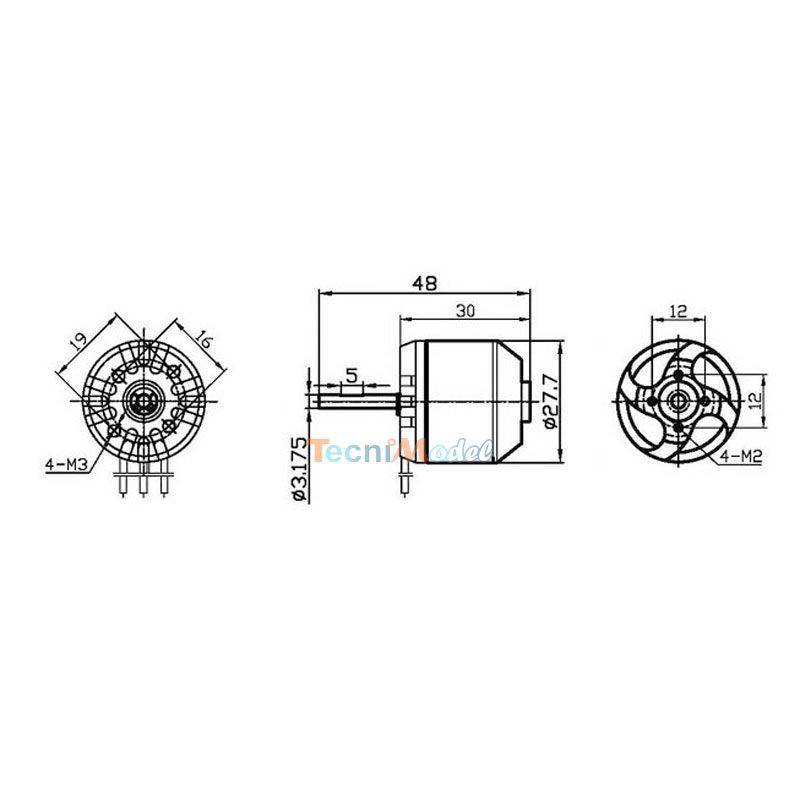

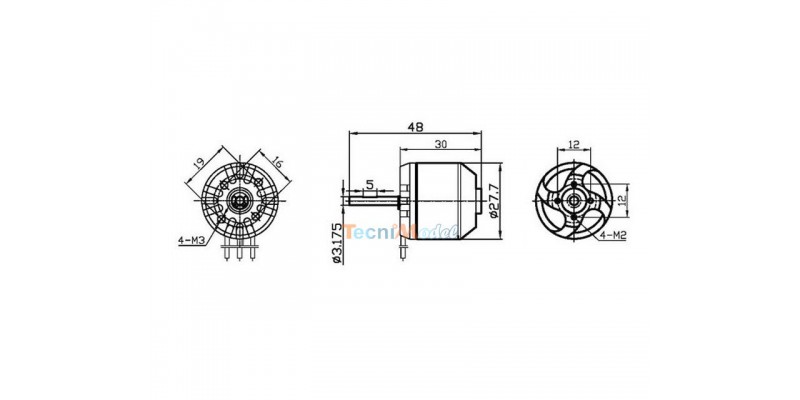

- Housing dimensions: Ø28x35mm
- Shaft dimensions: Ø3,17x15mm
- Mounting hole spacing: 16 and 19mm (+ 33mm cross adapter) (M3 thread)
- Connection: 3 cylindrical gold contacts Ø3.5mm
- Weight: approx 67g with cables
- Controller: 30A at 7.2-7.4V / 40A at 11.1-12V
| Shaft diameter | Ø3.17/Ø3.2mm (1/8'') |
|---|---|
| Turns/Volt (KV) | 3500 |
| Brushless type | OutRunner |
