ROXXY Outrunner 5055/06 760kv brushless motor
ROXXY Brushless Outrunner 5055/06 760kv motor, 14-pole brushless motor with Ø50 mm outer diameter.
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)

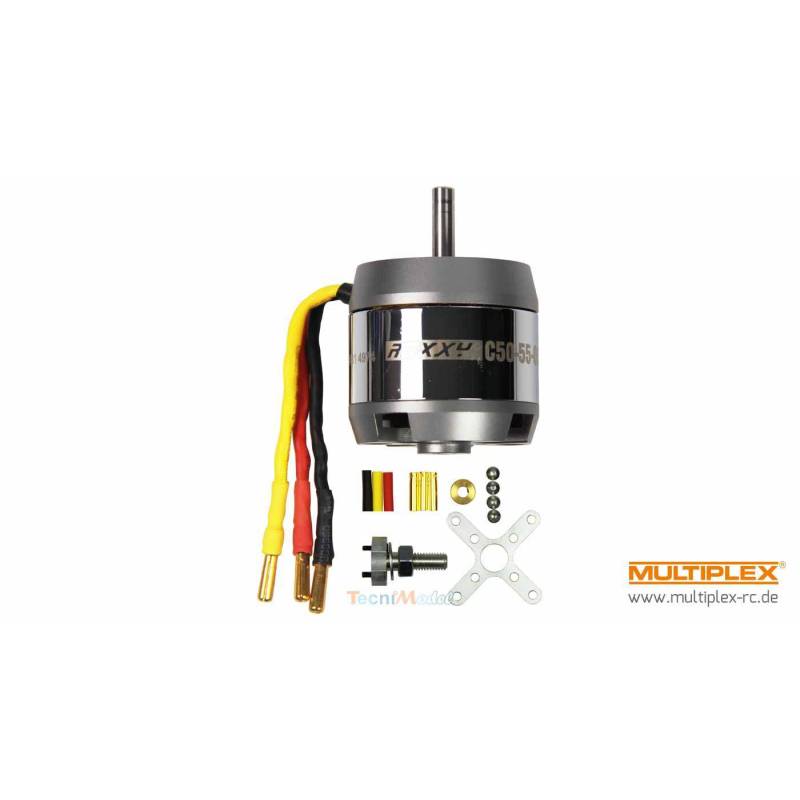

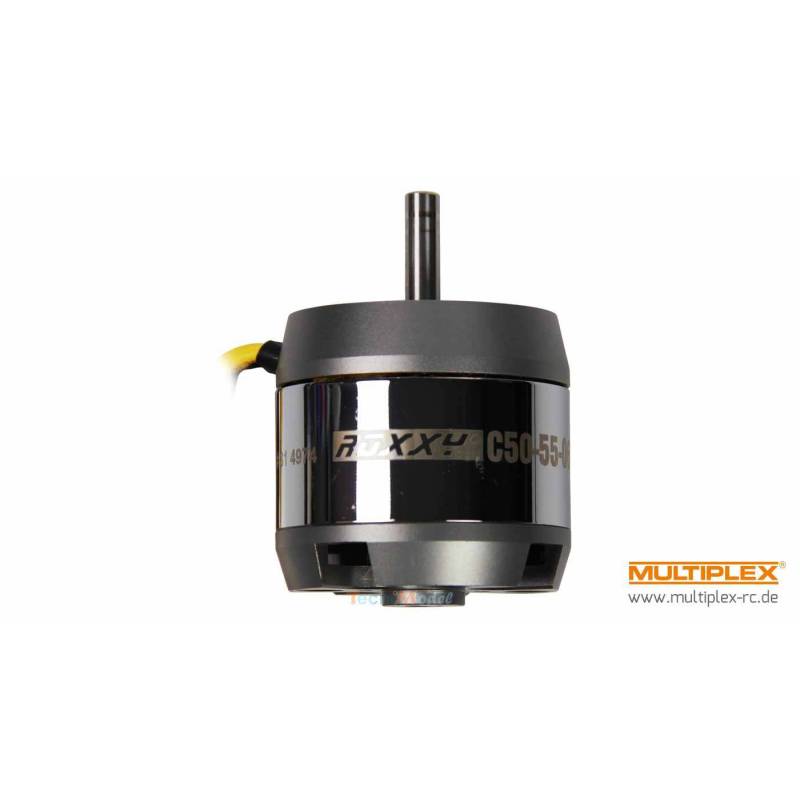

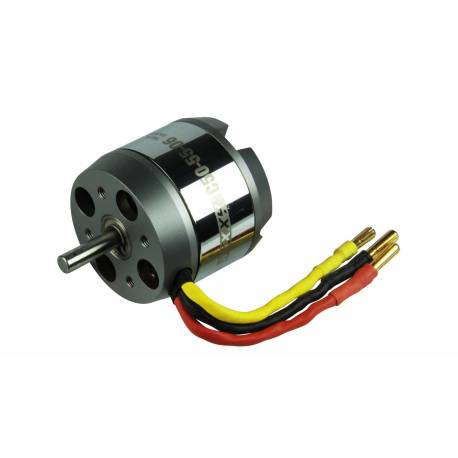

ROXXY Brushless Outrunner 5055/06 760kv motor
Roxxy 314974
14-pole brushless motor with rotating cage and Ø50 mm outer diameter.
ROXXY® brushless motors with neodymium magnets are state-of-the-art electric motors. Thanks in particular to their external rotor, which eliminates the need for a reduction system, they are motors with very high torque and efficiency, and are available for a wide performance range. Thanks to their design, external-rotor motors, without gearboxes, can drive large aerial or boat propellers.
- High efficiency due to maximum copper fill ratio and the use of high-quality neodymium magnets.
- Extremely smooth running thanks to large precision ball bearings
- Two-sided installation possible
Features
- Diameter: Ø50 mm
- length: 51 mm
- Weight: 0.276 kg
- Motor type: brushless with rotating cage
- Revolutions per volt (KV): 760
- Motor shaft diameter in mm: Ø6mm
- Permissible voltage range (in V): 7-20V
- Motor power in watts (Max): 1100 W
- Battery recommendation 3-5s LiPo
- 14-pin

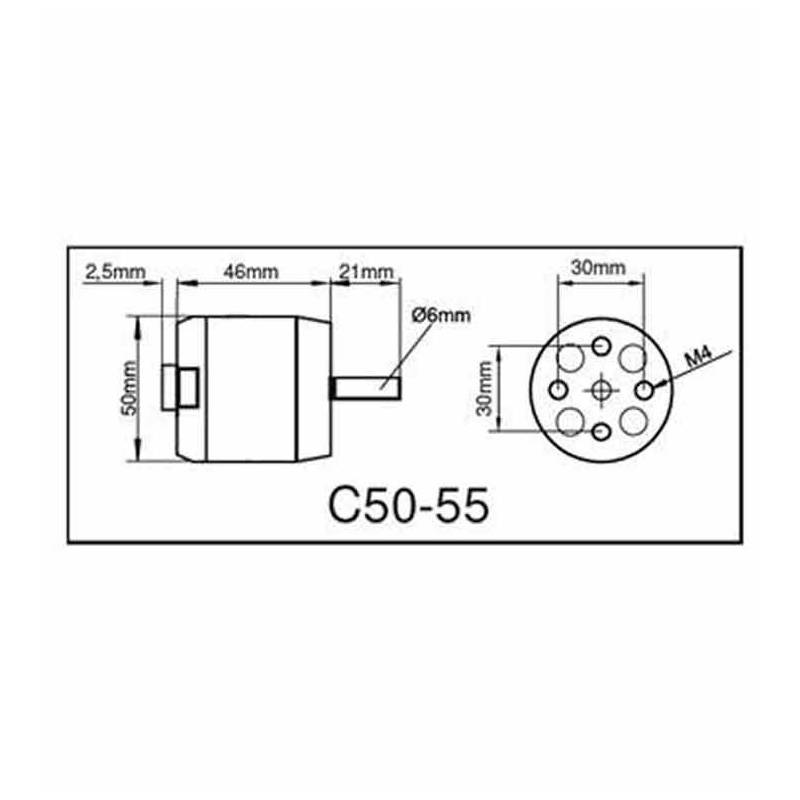

Dimensions:
| Shaft diameter | Ø6mm |
|---|---|
| Turns/Volt (KV) | 760 |
| Brushless type | OutRunner |
