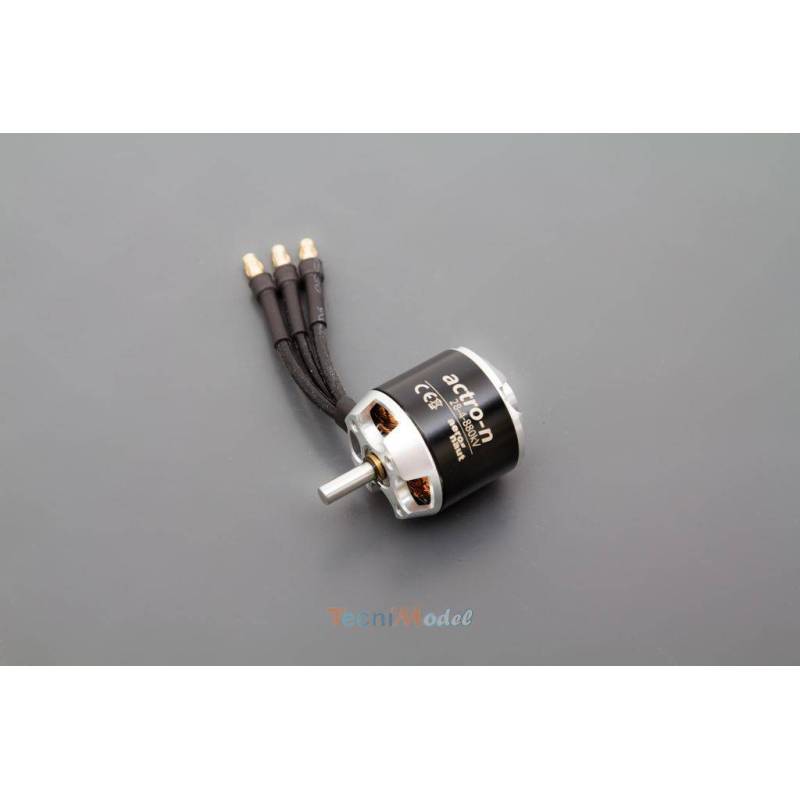

Brushless motor Ø28mm Actro-N 28-4-880
Brushless motor Ø28mm Actro-N 28-4-880.
Reference : MOAE700304
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA17
Brushless motor Ø28mm Actro-N 28-4-880
Aero-Naut 7003/04
The new Actro-N motors are suitable for a wide range of model aircraft on the market. This series offers powerful electric motors from Ø28 to Ø50mm, with speeds and torques suitable for boats and aircraft.
Ø28mm motors are suitable for boats up to approx. 80cm in length at hull.
Ø35mm motors are suitable for boats of 80cm and over, and also for training aircraft with a maximum wingspan of around 1.6m and a maximum take-off weight of 2.5kg.
The Ø50mm series is suitable for larger boats such as the Comtesse (ref: KBAE308500 or PAC308500).

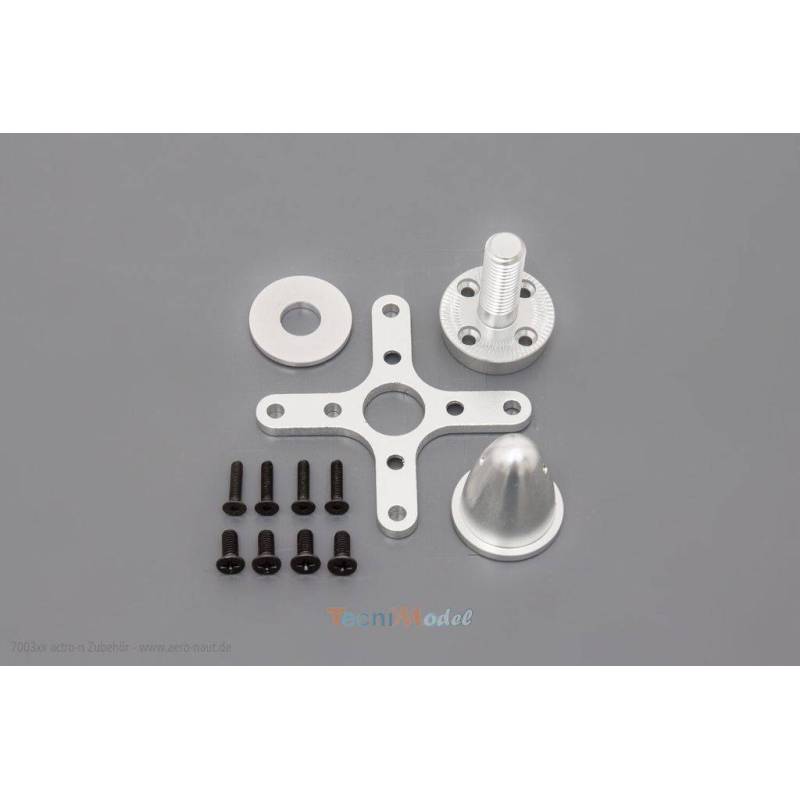

Supplied with cross mount and aircraft propeller mount.

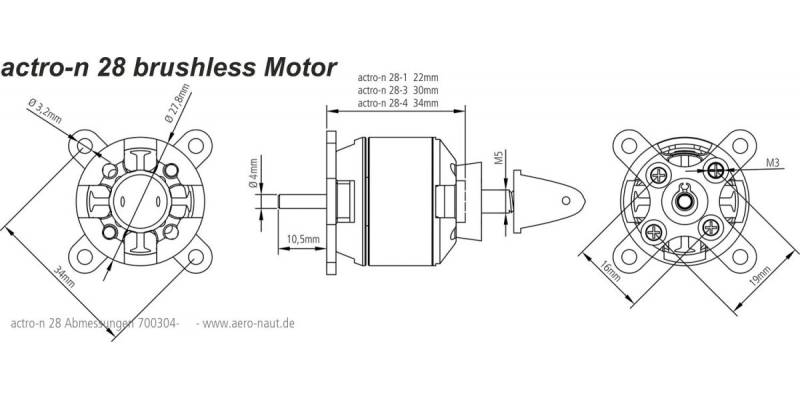

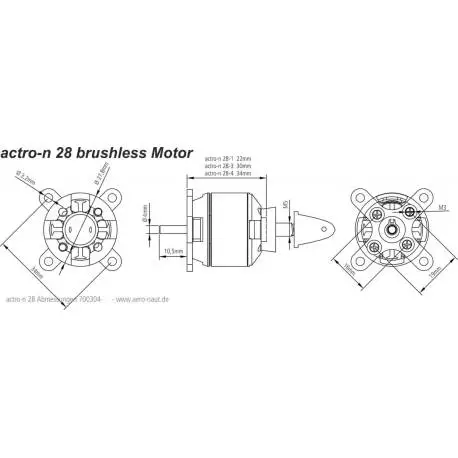

Technical specifications
- Cage diameter: 28 mm
- Height without shaft: 33.2 mm
- Shaft free length: 11.4 mm
- Total length approx. 43.5 mm
- Shaft diameter: 4 mm
- Supply voltages: 7.4V (2S) - 14.8V (4S)
- Max. current: 22A
- Revs/Volts (kv): 880
- Number of poles: 14
- Type: rotating cage (Outrunner)
- Weight, approx.: 66 g
- Fixing screw centres: 16mm and 19mm
Recommended accessories:
| Shaft diameter | Ø4mm |
|---|---|
| Number of Li-ion battery cells | 2S - 4S |
| Voltage (V) | 7.4V - 14.8V |
| Turns/Volt (KV) | 880 |
| Brushless type | OutRunner |
