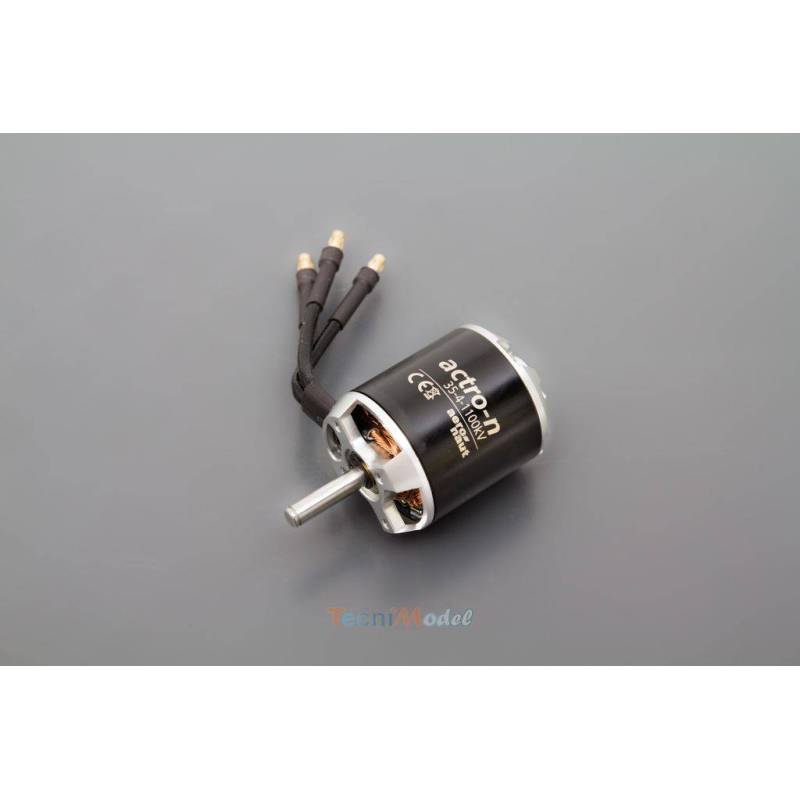

Brushless Motor Actro-N 35-4-1100 Ø35mm
Brushless Motor Actro-N 35-4-1100 Ø35mm.
Reference : MOAE700310
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA17
Brushless Motor Actro-N 35-4-1100 Ø35mm
Aero-Naut 7003/10
The new Actro-N motors are suitable for a wide range of model aircraft on the market. This series offers powerful electric motors from Ø28 to Ø50mm, with speeds and torques suitable for boats and aircraft.
Ø28mm motors are suitable for boats up to approx. 80cm in length at hull.
Ø35mm motors are suitable for boats of 80cm and over, and also for training aircraft with a maximum wingspan of around 1.6m and a maximum take-off weight of 2.5kg.
The Ø50mm series is suitable for larger boats such as the Comtesse (ref: KBAE308500 or PAC308500).

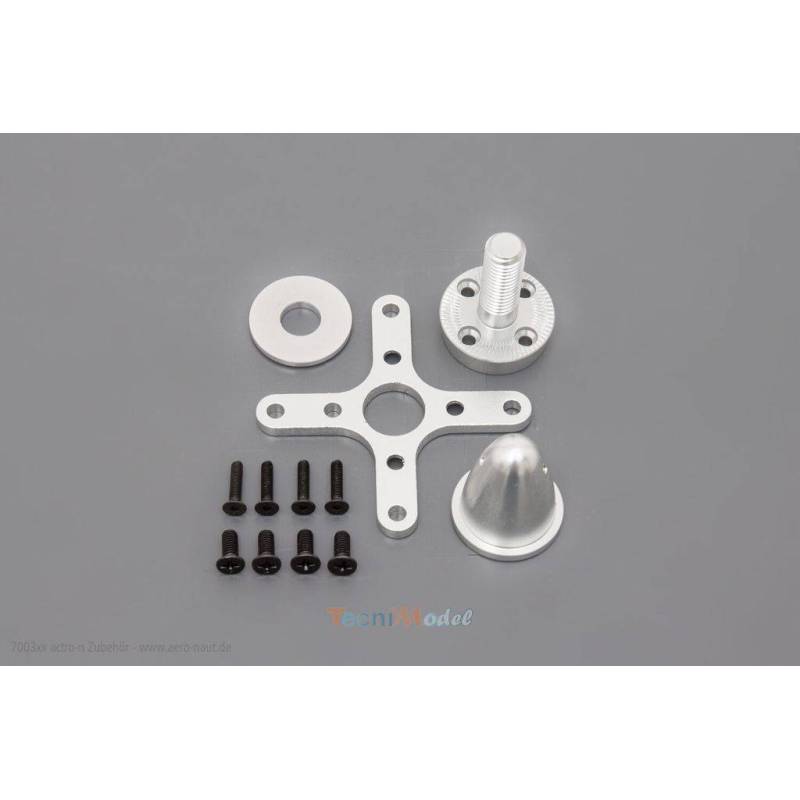

Supplied with cross bracket and aircraft propeller mount.

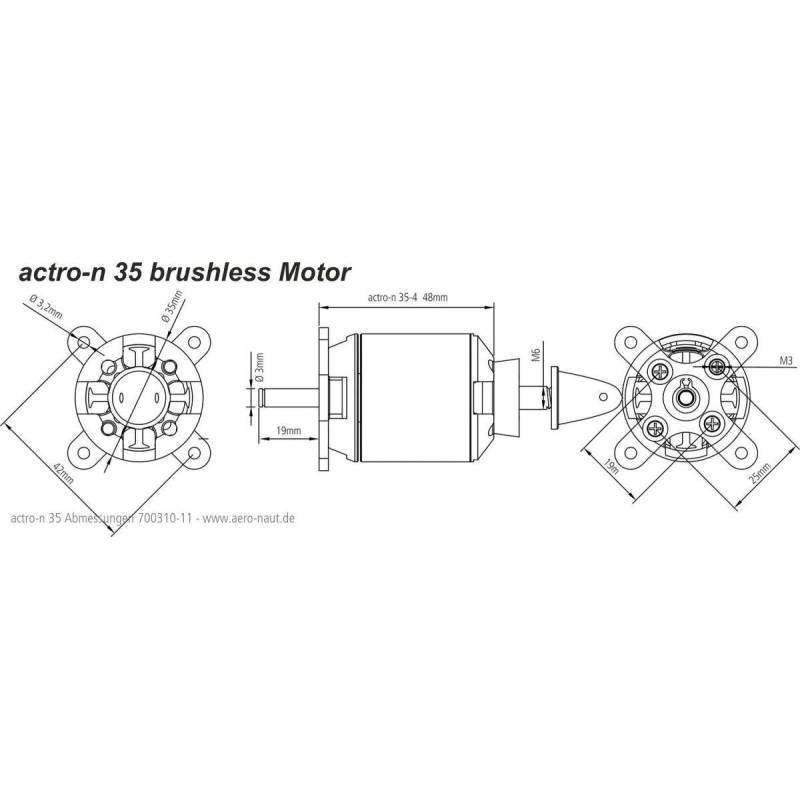

Technical specifications :
- Cage diameter: 35 mm
- Length without shaft: 47mm
- Shaft free length: 19.5mm
- Total length approx. 66.5mm
- Shaft diameter: Ø5mm
- Supply voltages: 11.1V (3S) - 18.5V (5S)
- Max. current: 50A
- Turns/Volts (kv): 1100
- Number of poles: 14
- Type: rotating cage (Outrunner)
- Weight: approx. 158g
- Fixing screw centres: 19mm and 25mm
- Motor connectors: Ø3.5mm
Recommended accessories:
| Shaft diameter | Ø5mm |
|---|---|
| Number of Li-ion battery cells | 3S - 5S |
| Voltage (V) | 11.1V - 18.5V |
| Turns/Volt (KV) | 1100 |
| Brushless type | OutRunner |
