ROXXY Brushless Outrunner Motor C35-30-800kV NAVY
Brushless motor Multiplex ROXXY BL Outrunner C35-30-800kV NAVY
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB09
Multiplex ROXXY BL Outrunner C35-30-800kV NAVY
Slow, torquey brushless motor specially designed for model boat propulsion.
Modern 14-pole ROXXY® brushless motor with external armature for model boats.
Due to its construction, this motor does not require a mechanism. It is a very powerful torque motor with high efficiency and a wide performance range, enabling it to drive large propellers.
Ideal for direct drive.
- High efficiency thanks to maximum copper filling and the use of high-quality neodymium magnets.
- Smooth rotation thanks to precision ball bearings.
Application:
Boat models from 2000 to 6000 g
Replaces Mini-Navy Kompakt gearmotor
Example of use:
Voltage 7.2v - 35 mm three-blade propeller - power consumption 3.6A thrust: 800 g
Voltage 7.2v - 40 mm three-blade propeller - power consumption 4.2A thrust: 900 g
Specifications:
Voltage: from 7 to 12 v
Speed (Kv): 800 rpm/V
Permissible current (5min/120°c) 13A
Max. charging current (60s): 18A

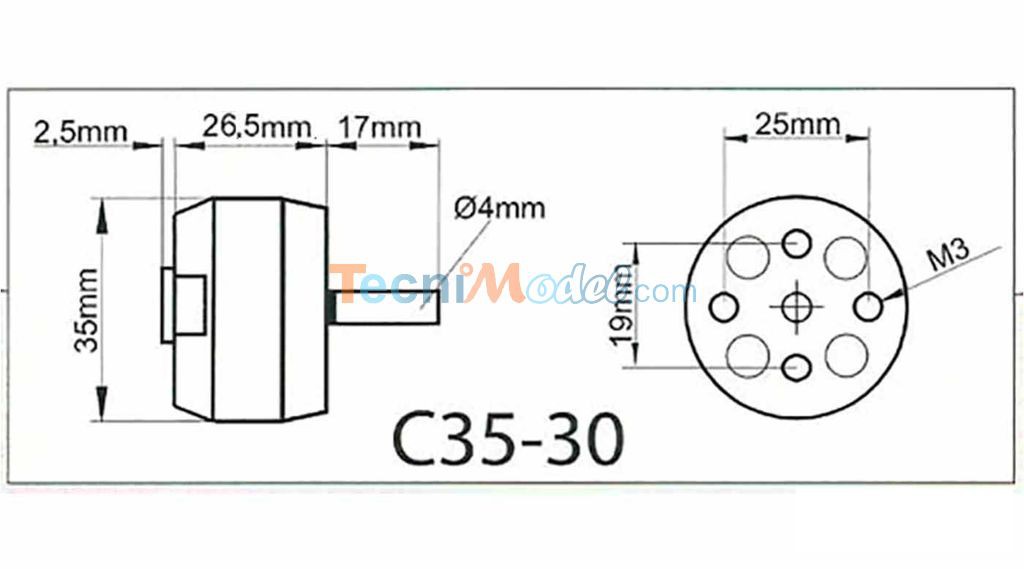

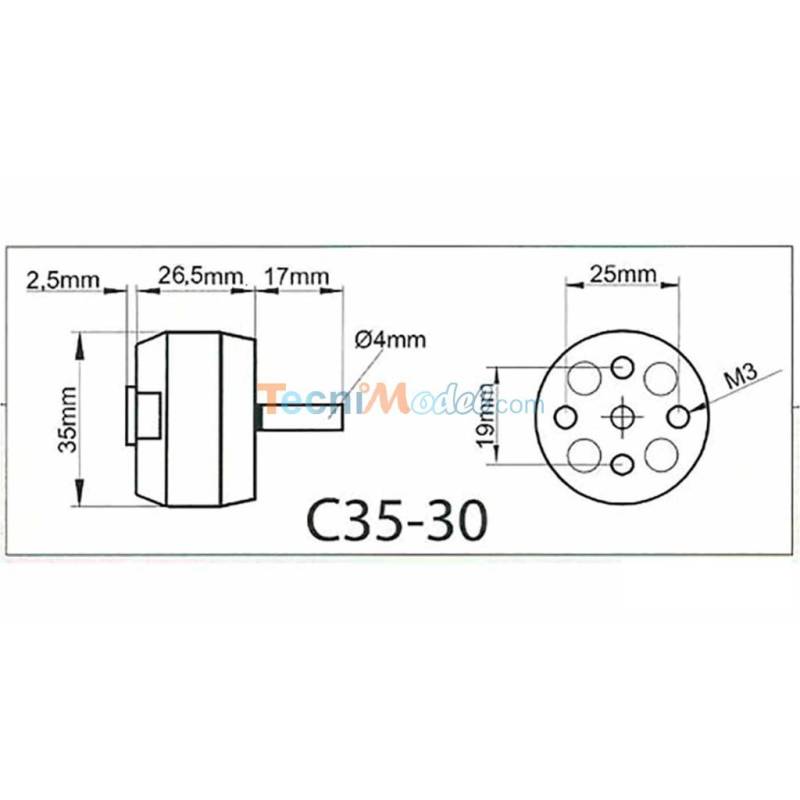

Overall dimensions: Ø35mm x 29mm
Approximate weight: 78g
Shaft diameter: 4mm
Power 130w
Recommended accessories:
| Shaft diameter | Ø4mm |
|---|---|
| Turns/Volt (KV) | 800 |
| Brushless type | OutRunner |
