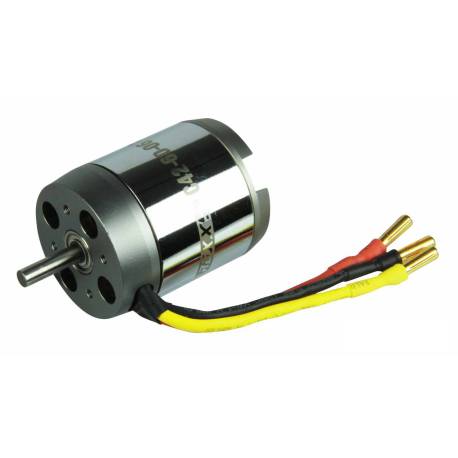

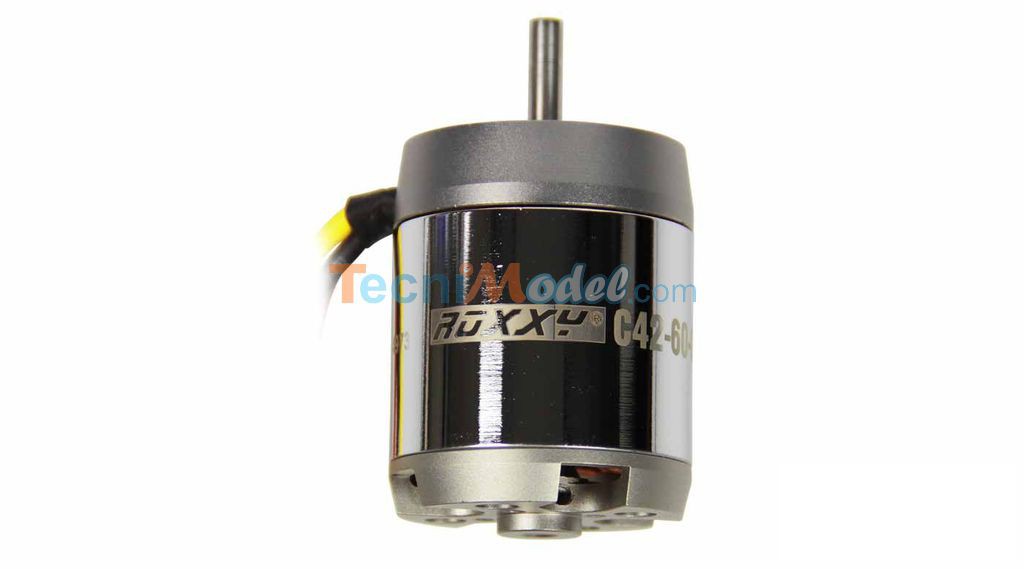

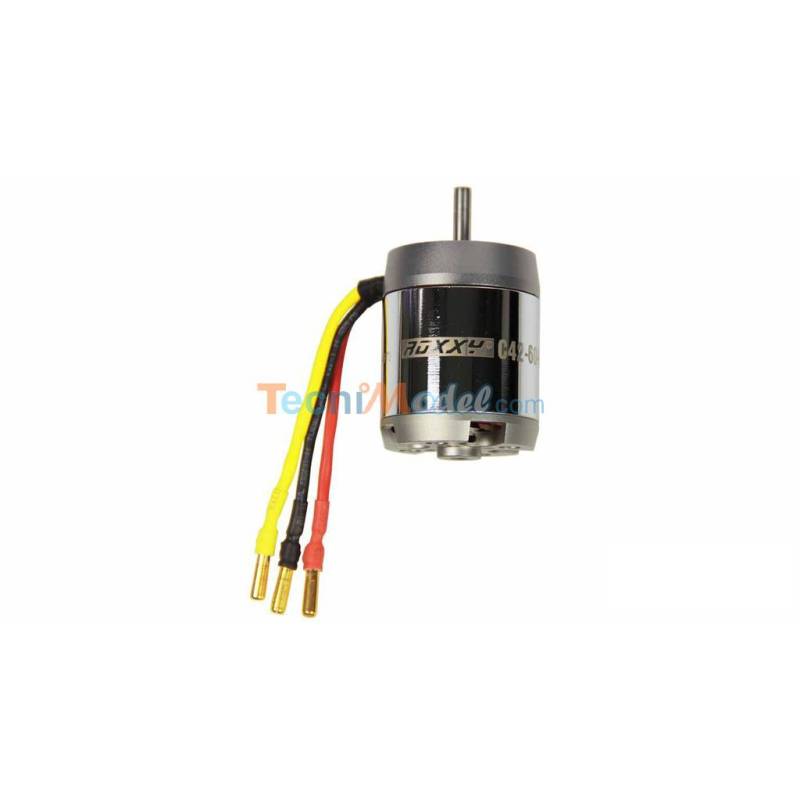

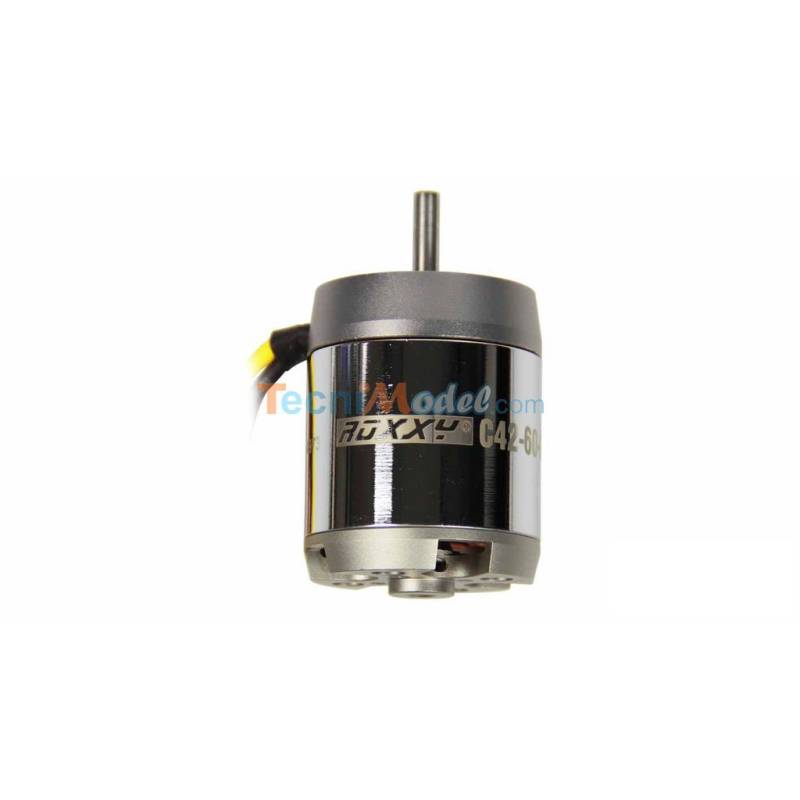

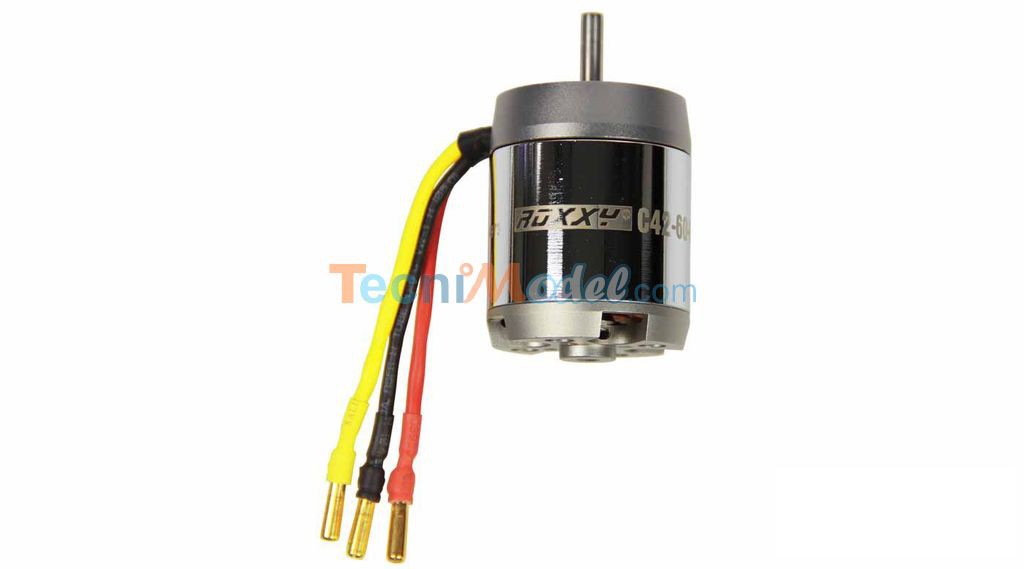

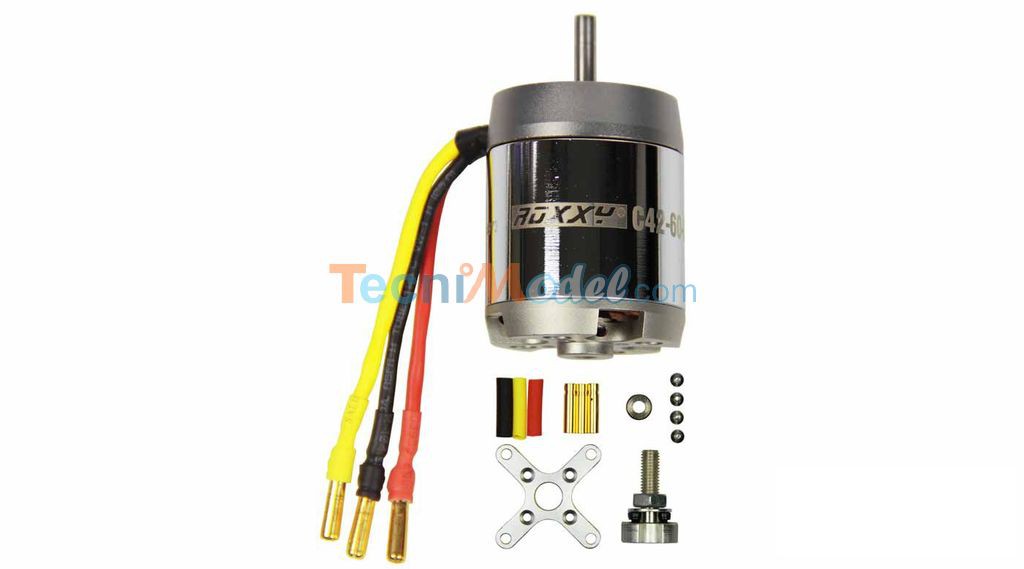

ROXXY Outrunner Brushless Motor C42-60-600kV

Multiplex ROXXY Outrunner Brushless Motor C42-60-600kV

Slow, torquey brushless motor suitable for model boat propulsion.
Modern 14-pole ROXXY® brushless motor with external armature for model boats.

Due to its construction, this motor does not require a gearbox. It is a high-torque motor with high efficiency and a wide performance range, enabling it to drive large propellers.

Ideal for direct drive.
- High efficiency thanks to maximum copper filling and the use of high-quality neodymium magnets.
- Smooth rotation thanks to precision ball bearings.

Motor suitable for direct drive of large boat propellers ( Ø70 to Ø 90mm direct drive)

Technical data :

• Speed (Kv): 600 rpm/V
• Voltage: 10...20 Volts
• Maximum current under load (5 min/120°c): 47 A
• Maximum current (60s): 75A
• Maximum power ( 20v 5 min/120°c): 1000W
• Max power ( 20v 60 sec.): 1600W

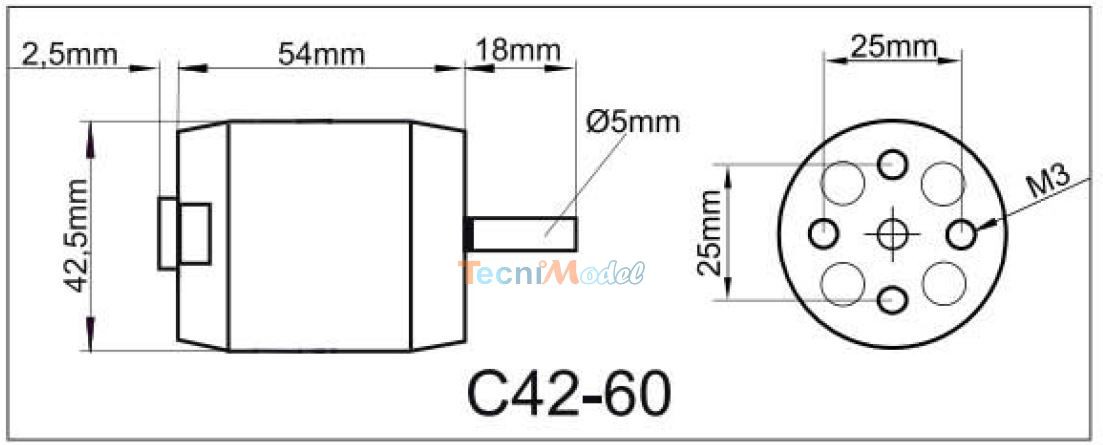

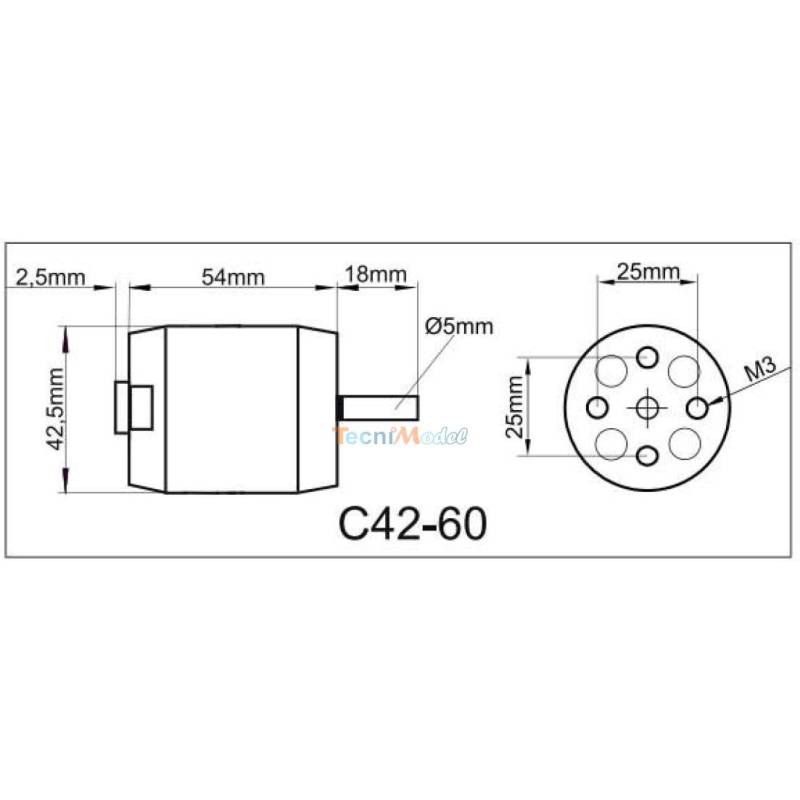

• Body diameter: Ø42 mm
• Length: 56 mm
• Shaft diameter: Ø5 mm

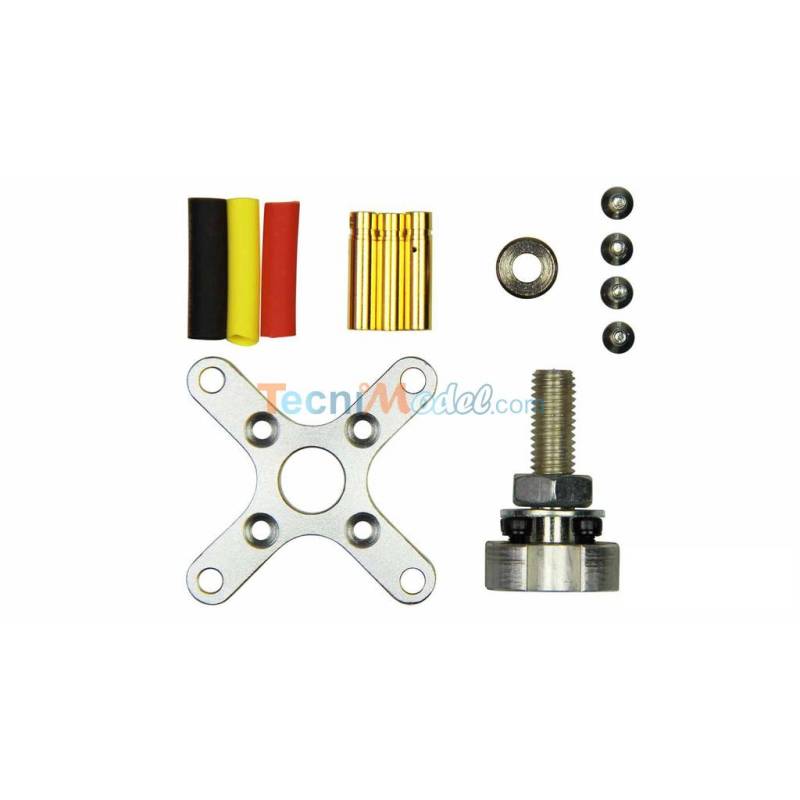

• Total weight with cord/adapter: 262 g
• Number of poles: 14
