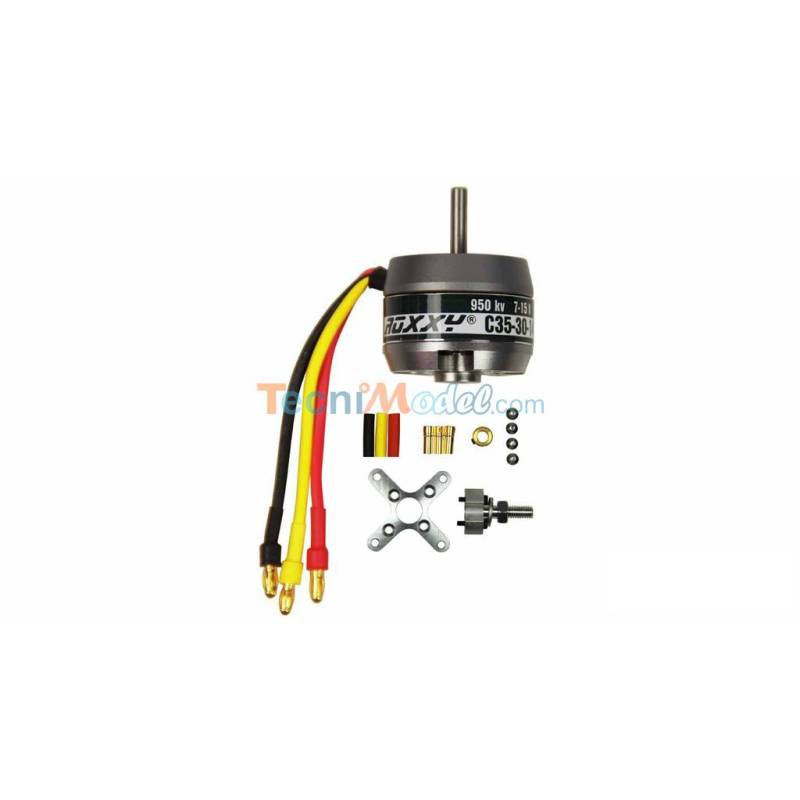

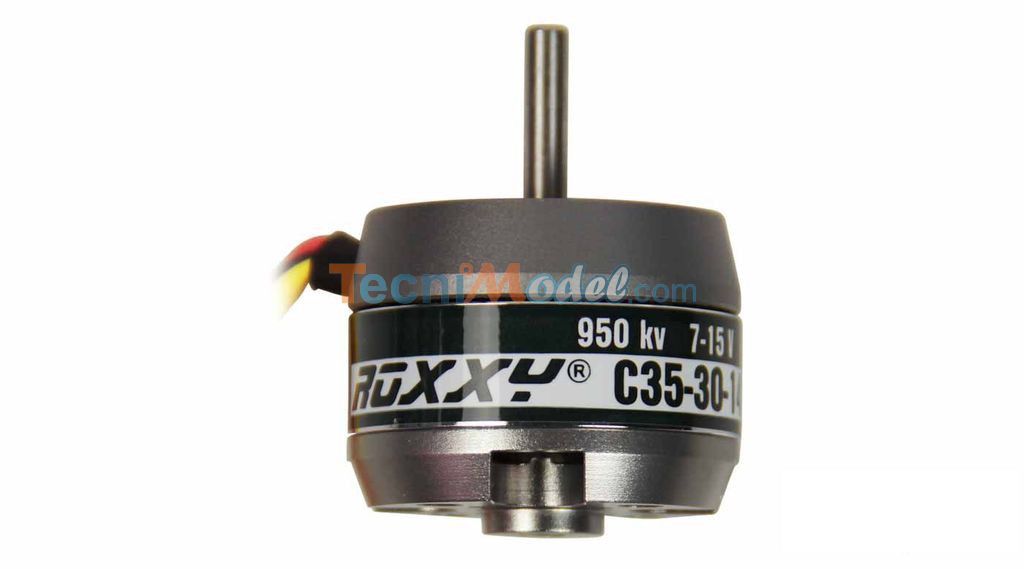

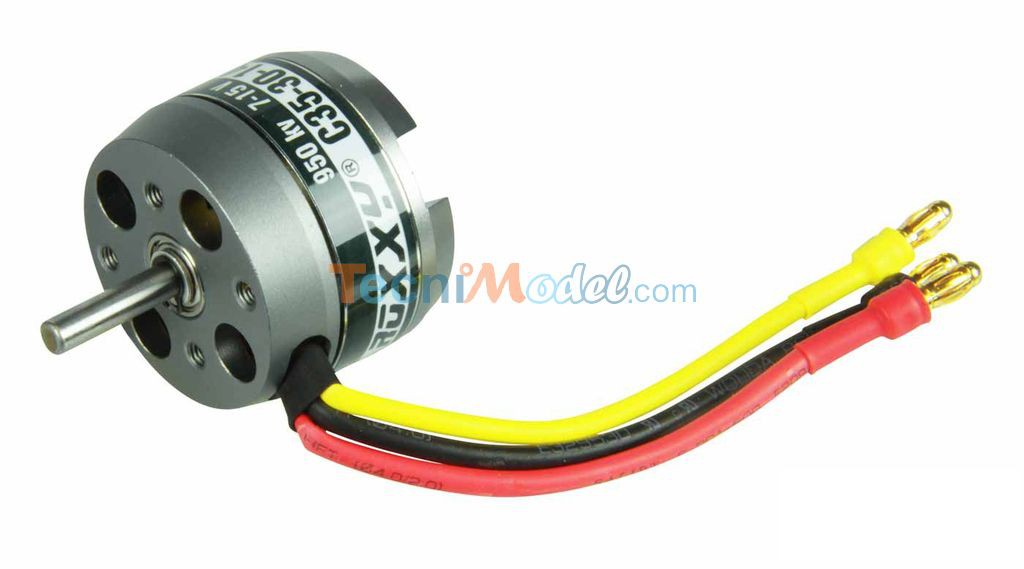

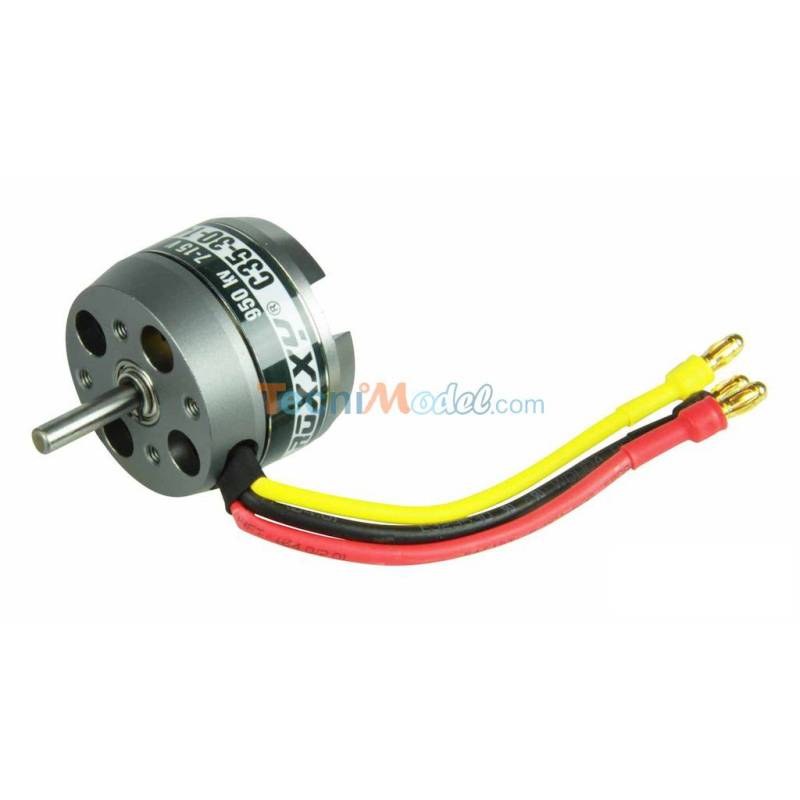

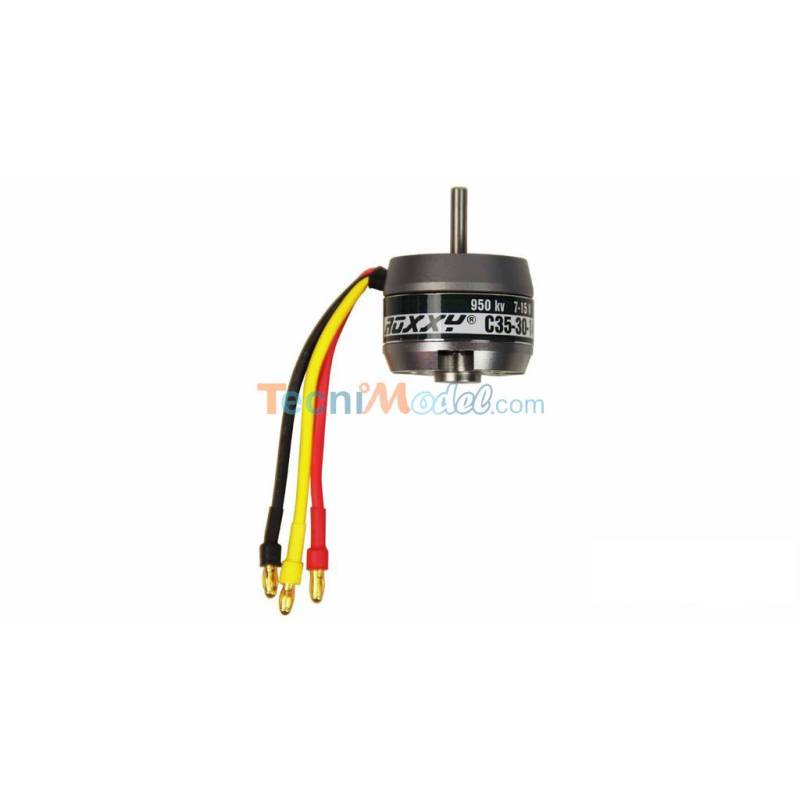

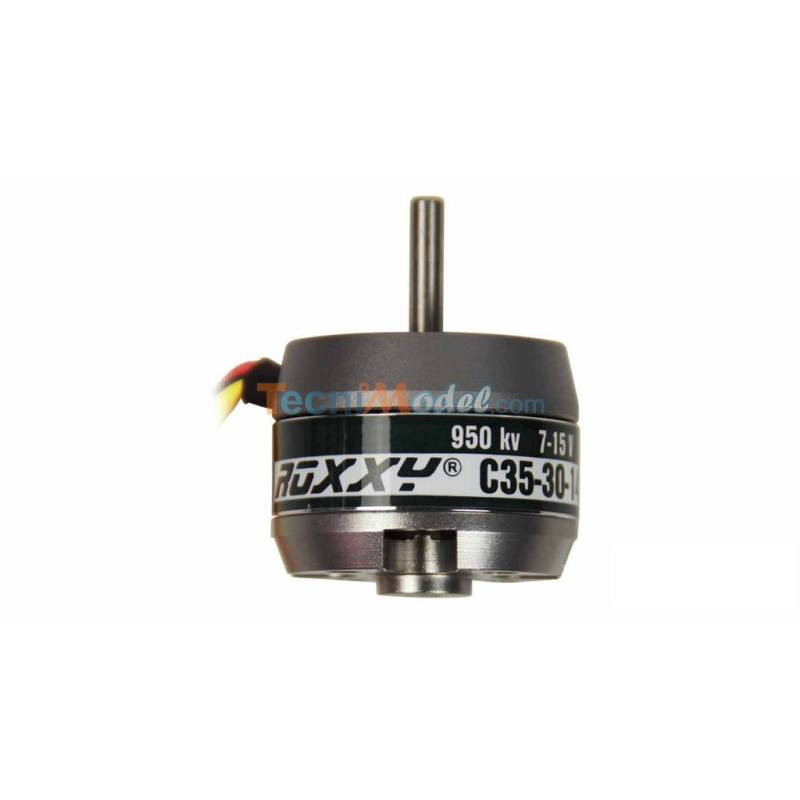

ROXXY Brushless Outrunner Motor C35-30-950kV

ROXXY Brushless Outrunner Motor C35-30-950kV

Multiplex 314962

Outrunner Brushless motor with a rotation speed of 950 rpm/Volt.

These motors feature excellent efficiency and high torque.

Due to their design structure, motors with external armature (rotating cage) can drive large propellers without the use of gears. This makes them ideal for direct drives:
- Very high efficiency thanks to the maximum filling coefficient of copper and the use of neodymium magnets.
- High rotational flexibility thanks to large precision ball bearings.
- Can be mounted on both sides.
ROXXY brushless motors are available in a wide range of performance classes.

• Kv: 950 rpm
• Permissible voltage range: 7 - 15v
• Max. current (during max. 120s): < 20A
• Max. current (for max. 60s): 30A
• Max. continuous power (W)(5 min/120° C): 270W
• Max. power (60 sec.): 310W

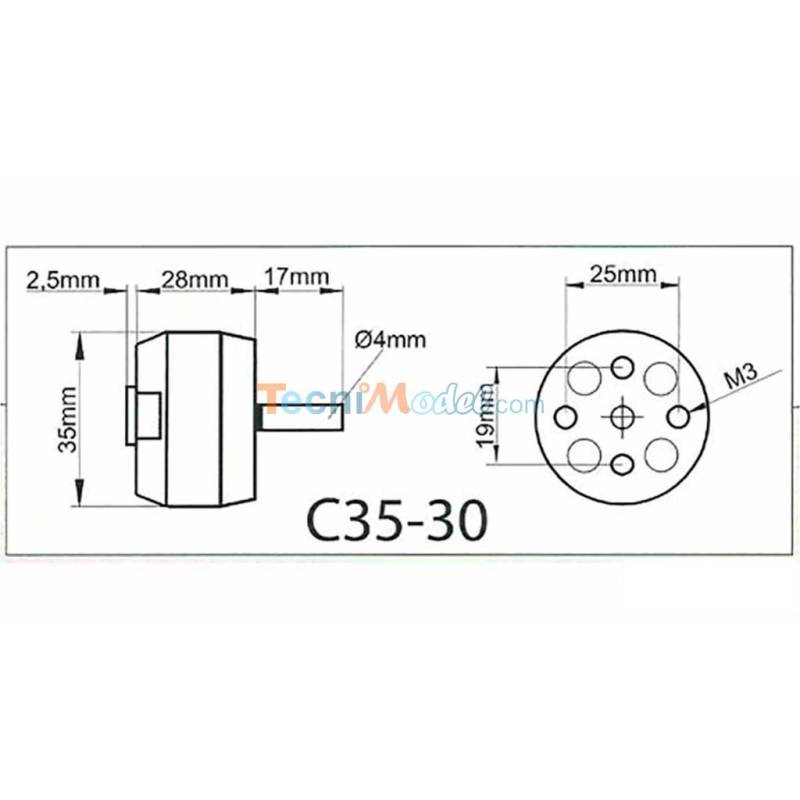

• Dimensions: Ø35 x 30mm
• Weight: 78g
• Shaft diameter: Ø4mm
• Number of poles: 14
