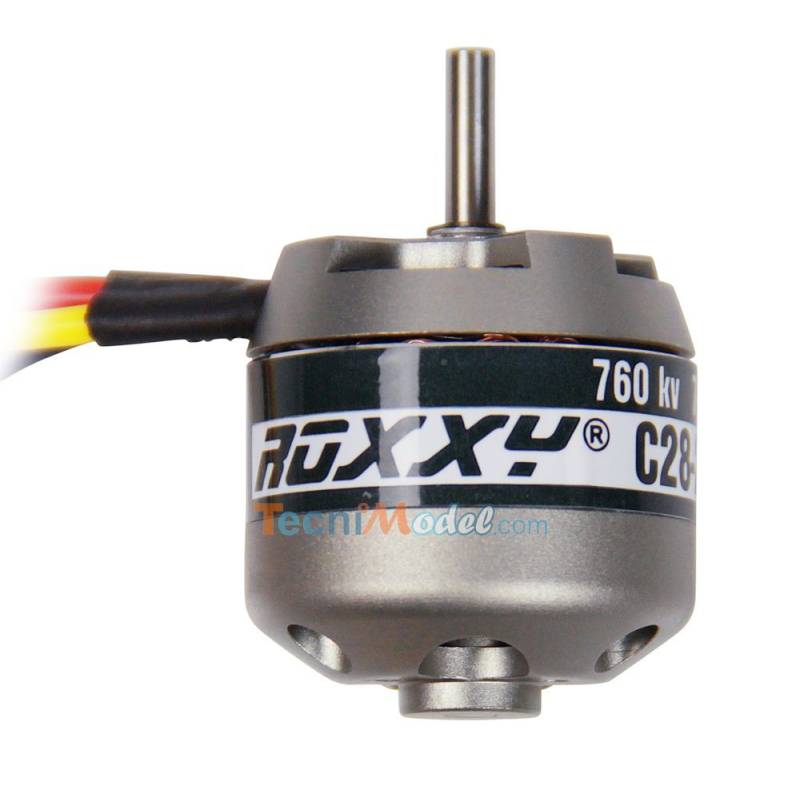

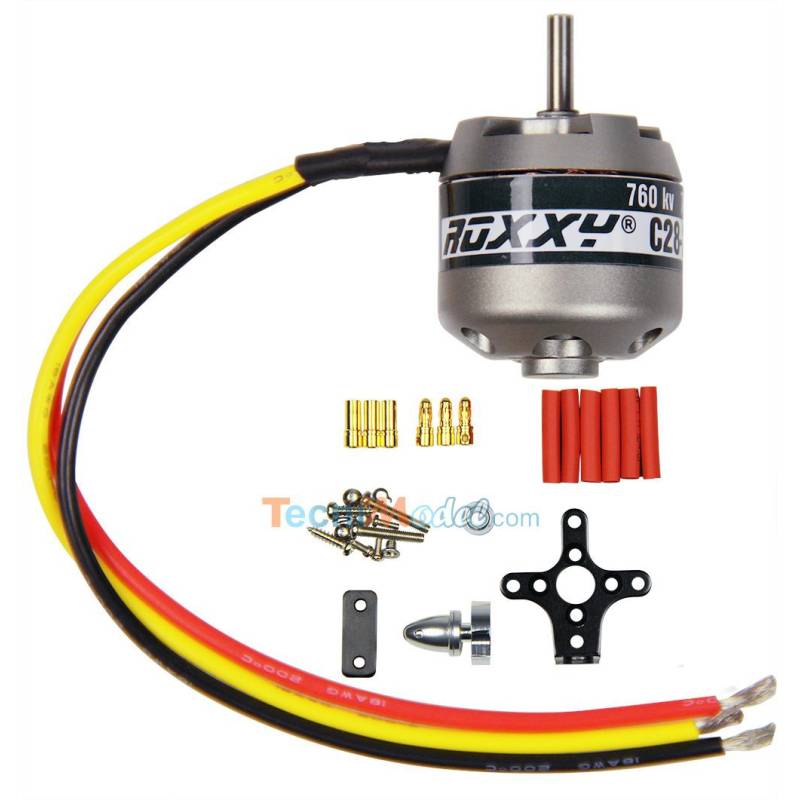

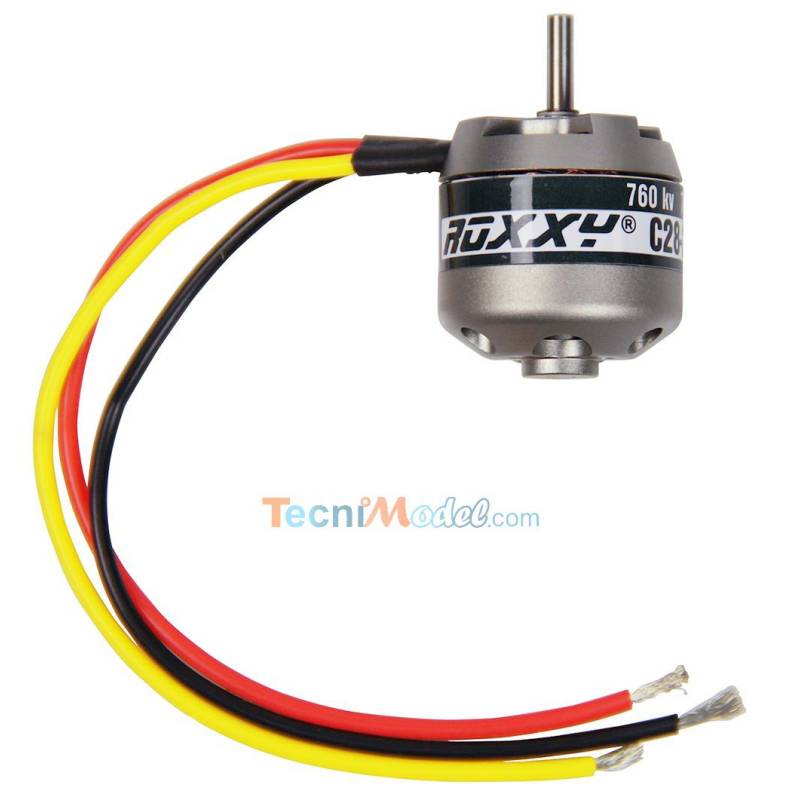

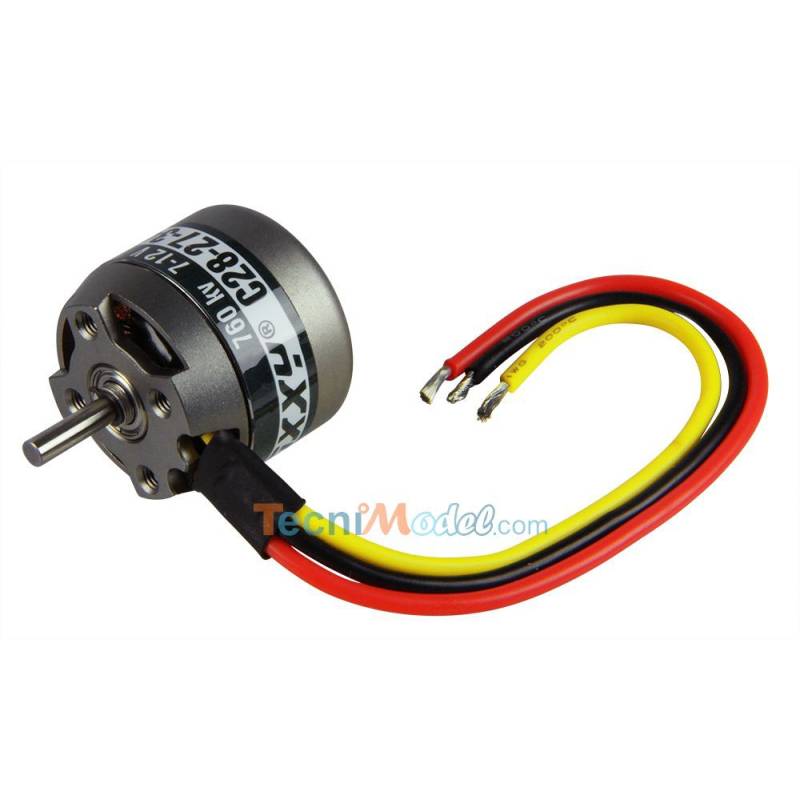

Multiplex ROXXY Brushless Outrunner Motor C28-27-760kV
Ref Roxxy 315080
Modern ROXXY® 14-pole brushless motor with external armature (rotating cage) for model boats.
Motor speed 760 rpm.
These motors feature excellent efficiency and high torque.
Technical specifications:
- Kv: 760 rpm
- Permissible voltage range: 7 - 12v
- Max. current (during max. 120s): < 9A
- Max. current (during max. 60s): 10
- Max. continuous power (W)(5 min/120° C): 110W
- Max power (60 sec.): 170W

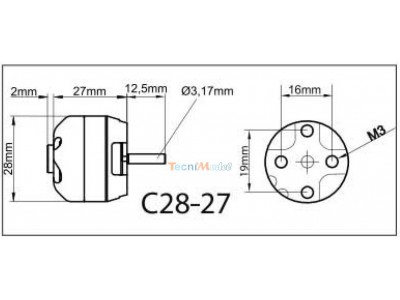

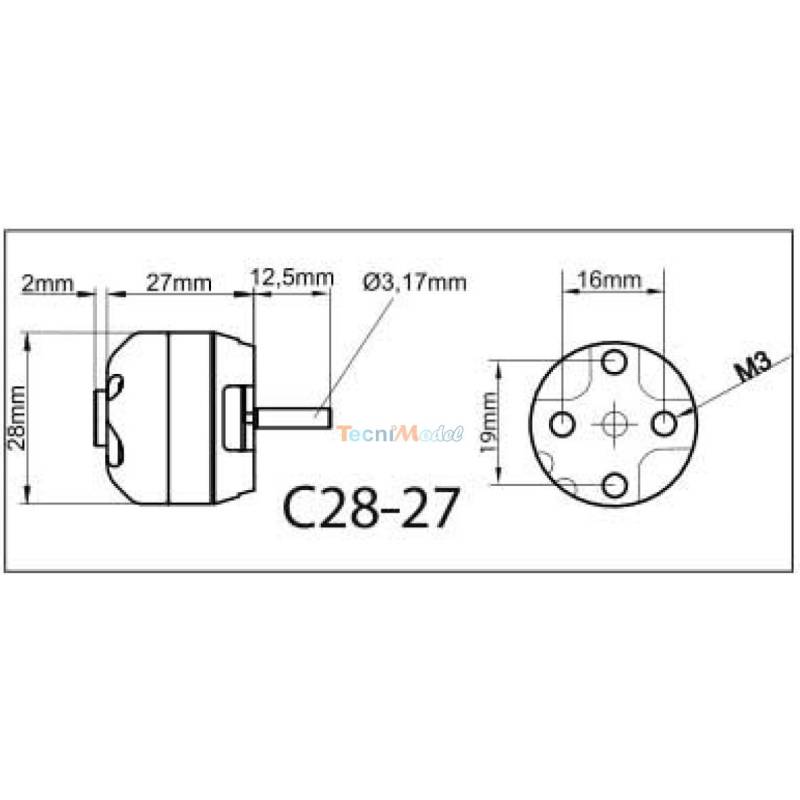

- Dimensions: Ø28 x 29mm
- Weight: 57g
- Shaft diameter: Ø3.2mm
- Number of poles: 14
Recommended accessories:
| Shaft diameter | Ø3.2mm |
|---|---|
| Turns/Volt (KV) | 760 |
| Brushless type | OutRunner |
