ROXXY Brushless Outrunner Motor C22-20-1330kV NAVY

Multiplex ROXXY Brushless Outrunner Motor C22-20-1330kV NAVY

Multiplex 314949

Slow, torquey brushless motor especially for boat propulsion

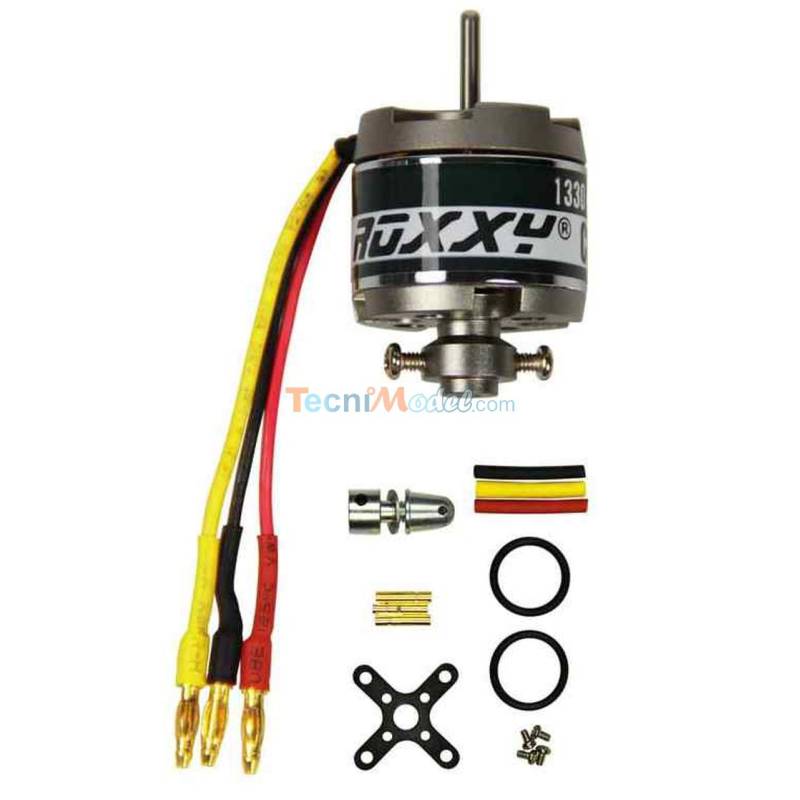

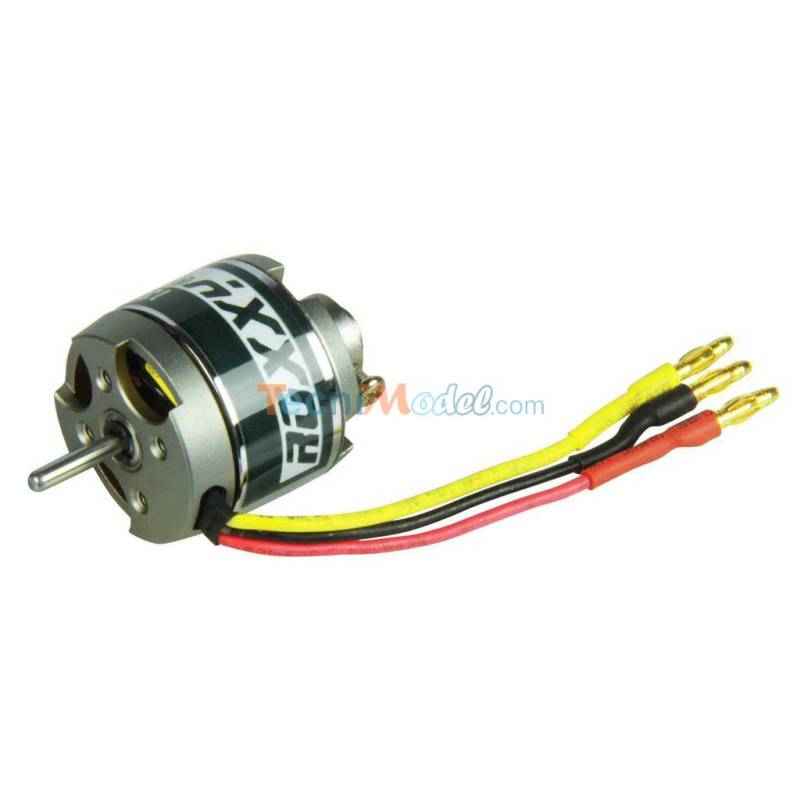

Modern 14-pole ROXXY® brushless motor with external armature for model boats.

Due to its construction, this motor does not require a gearbox. It is a very high-torque motor for its size, with high efficiency and a wide performance range, enabling it to drive boat propellers directly.

Ideal for direct drive.
- High efficiency thanks to maximum copper filling and the use of high-quality neodymium magnets.
- Smooth rotation thanks to precision ball bearings.

Application example:

For boat propellers up to 40mm in diameter.

Technical data:

• KV : 1330 t/V
• Input voltage: 7 - 12 V
• Number of LIPo elements: 2 - 3
• No-load current: 0.4 A
• Load current (5min/120°C): 8 A

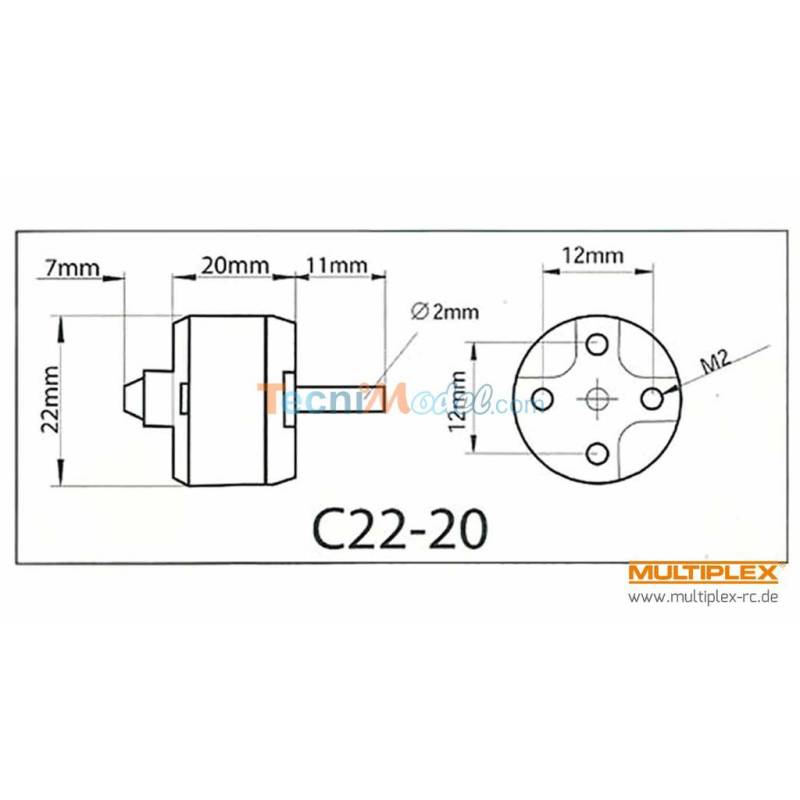

• Dimensions: diam. 22 mm x 20 mm
• Approx. weight: 28 g
• Shaft diameter: 2 mm
• Free shaft length: 11 mm
• Max. load current (60s): 10 A
• Power: 60W continuous / 110W pdt 60s. max
