ROXXY Brushless Outrunner Motor C22-16-800kV NAVY
Brushless motor Multiplex ROXXY BL Outrunner C22-16-800kV NAVY.
Reference : MORO314986
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Multiplex ROXXY BL Outrunner C22-16-800kV NAVY
Roxxy 314986
Slow, torquey brushless motor for boat propulsion. Modern 14-pole ROXXY® brushless motor with external armature for model boats.
Due to its construction, this motor does not require a gearbox. It is a high-torque motor for its size, with high efficiency and a wide performance range, enabling it to drive boat propellers directly.
- Ideal for direct drive
- High efficiency thanks to maximum copper fill and high-quality neodymium magnets
- Smooth rotation thanks to precision ball bearings
Application example:
For boat propellers up to 40mm in diameter
Technical data:
- KV: 800 rpm
- Input voltage: 10v to 25v (3 - 6S Lixx)
- Load current (5min/120°C): 3A

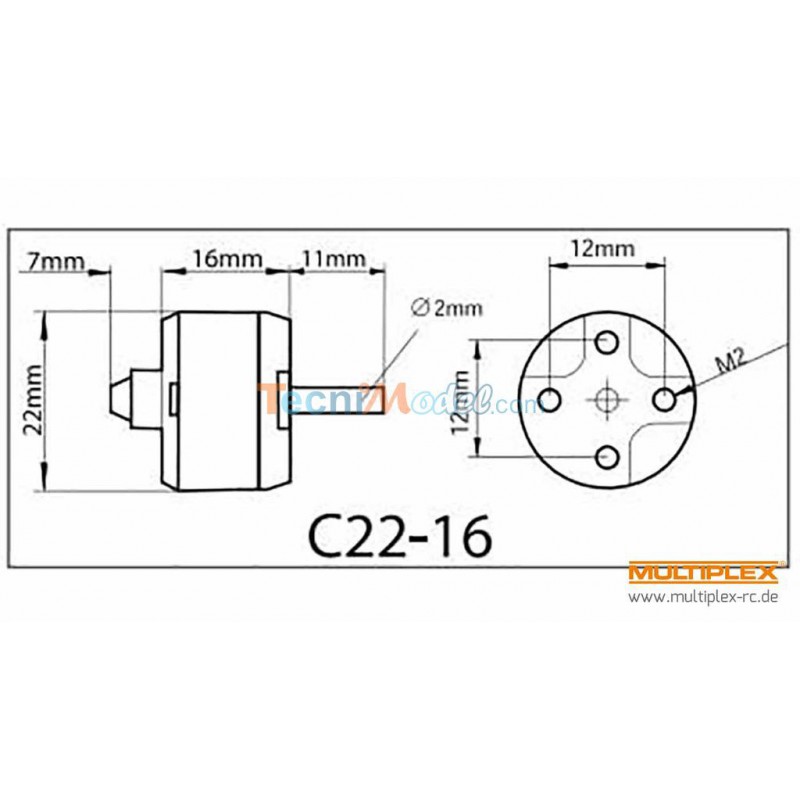

- Dimensions: Ø22x23mm
- Weight: approx. 19g
- Shaft diameter: Ø2mm
- Free shaft length: 11mm
- Max. charging current (60s): 5.3A
- Power: 45W for 5mn./120°C / 60W for 60sec.
| Shaft diameter | Ø2mm |
|---|---|
| Turns/Volt (KV) | 800 |
| Brushless type | OutRunner |
