Set of 5 white LEDs with resistors (3V to 14V)
Set of 5 white LEDs with resistors for power supplies from 3V to 14V.
Reference : ACAE567751
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AK04
Set of 5 white LEDs with resistors (3V to 14V)
Aero-Naut 567751

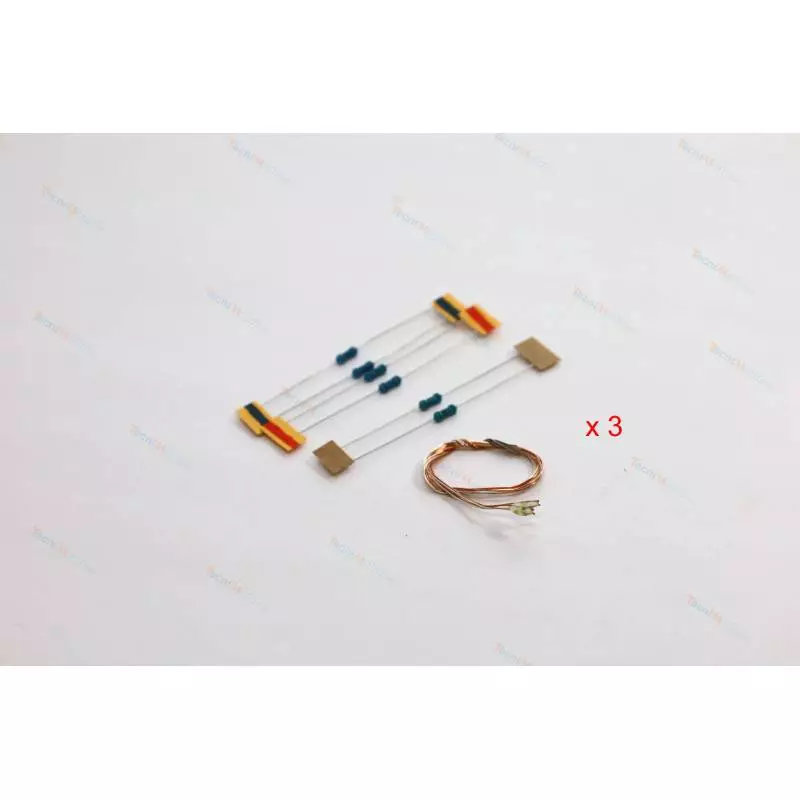

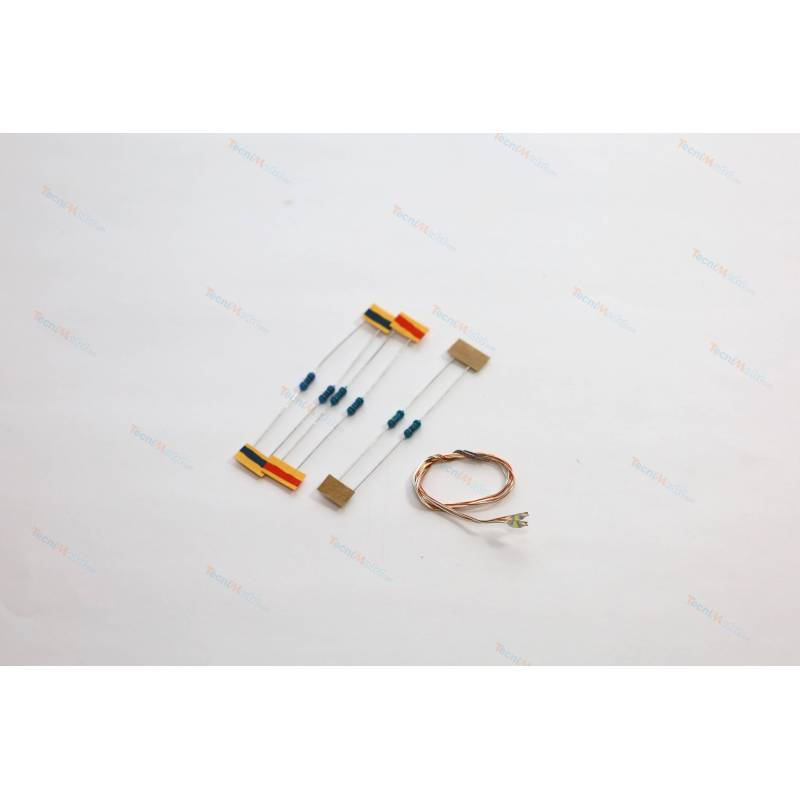

Pack of 5 wired white SMD LEDs, molded in a drop of resin to allow installation in place of bulbs. Supply voltage: 3V to 14V
- Diameter: approx. Ø2.5mm
- Length: approx. 5mm
Insulate wires if installing on a metal support.

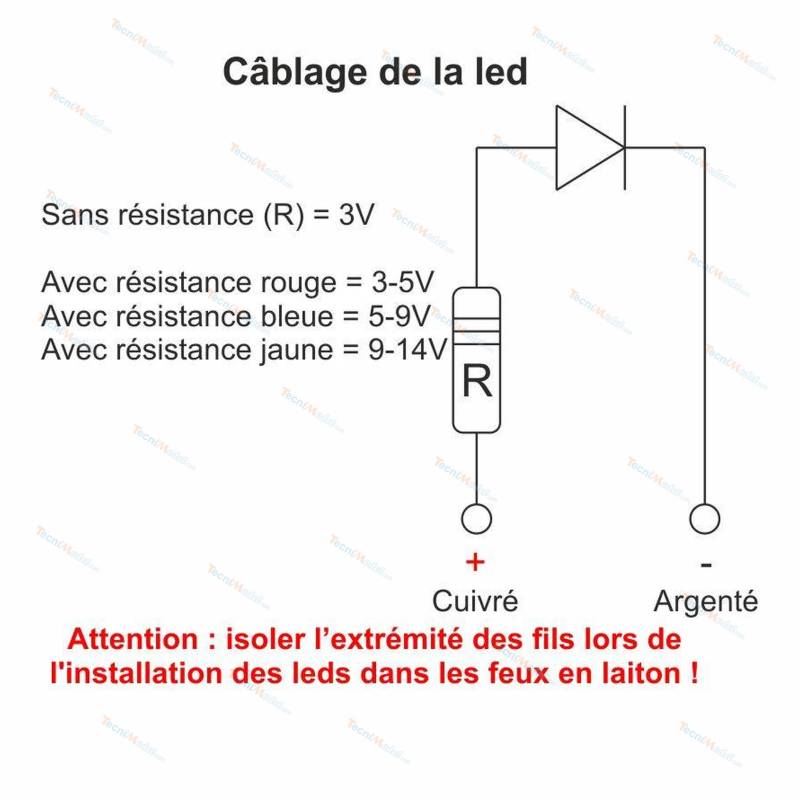

A set of resistors is supplied to adapt the installation to the voltage (take into account the maximum voltage of the charged battery) :
- Use without resistors: 3V power supply
- Resistors marked in red: power supply from 3V to 5V
- Resistors marked in blue: power supply from 5V to 9V
- Resistors identified without color: power supply from 9V to 14V
| LED diameter | 3mm |
|---|---|
| Color | White / White |
| LED voltage | 3v to 14v |
