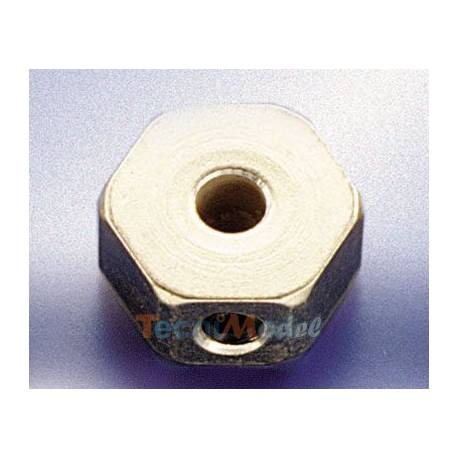

A Ø3.17mm insert for a semi-rigid Makrolon coupling
Krick 63832
These inserts are used when the boat shaft and/or the motor shaft have a diameter of Ø3.17mm.
The brass part is slid into the coupling and secured using the provided set screw.
Important: A complete semi-rigid coupling consists of a connecting piece (part no.: ACKR63800) and two shaft inserts.
Specifications:
- Inner diameter: Ø3.17 mm
- Hex: 10mm
- Width: 5mm
- Lock screw thread: M3
Recommended accessories:
| Diameter Coupling | Ø3.2mm Ø3.17mm |
|---|
