Smoke generator module for RC models
Smoke generator module for RC models, to liven up all your radio-controlled models.
Easy to install and use.
The smoke generator is supplied with two threaded spacers and the M3 screws required for installation.
The T-Dean power interface (red plug) is designed to be connected to a battery (voltage between 7.2V and 12V) on the input side, with the option of connecting a ESC or brushless controller on the output side.
The servo-type connector (black plug) can be connected in parallel with the receiver's motor channel, using a Y-cord (Y-cord not included).

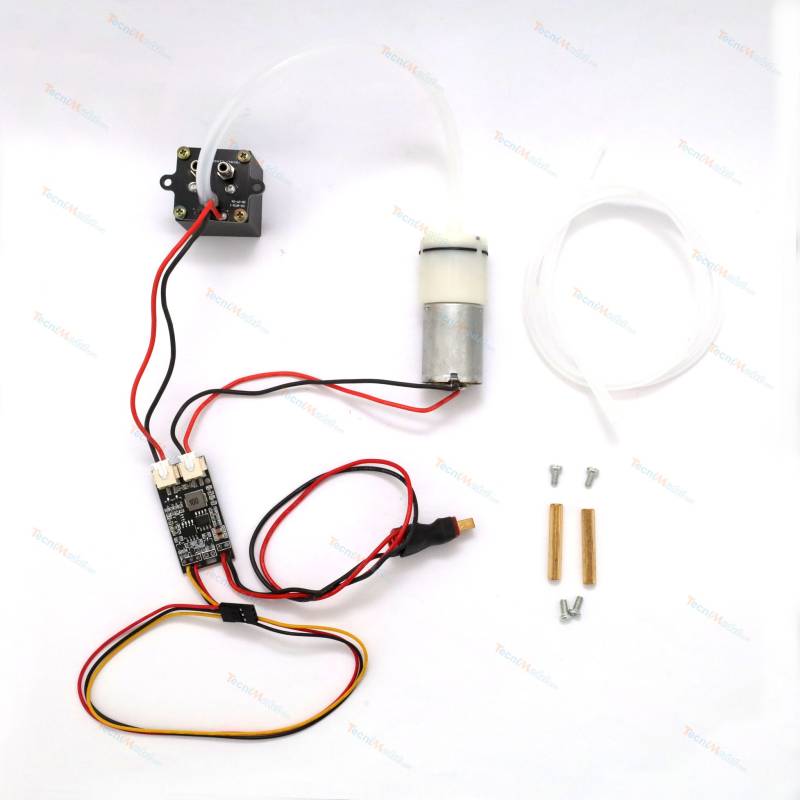

Delivery: 1 smoke generator + 1 pump + 1 electronic board (pump and generator control) + two threaded spacers with M3 screws + silicone hose
Features :
- Overall dimensions
- Smoke box: 28x40x38mm
- Pump: Ø27x68mm
- Electronic board: 46x22x8mm
- Power supply: 7.2V to 12V
- Battery connector: T-Dean plug
- Battery input: T-Dean male
- Output to ESC/controller: T-Dean female
- Receiver connector: Universal socket type Graupner/JR
- Smoke fluid tank capacity: approximately 5 to 6 ml
Recommended accessories:
| Manufacturer | Tecnimodel |
|---|---|
| Voltage (V) | 7.2 V - 12 V |
| Connector | T-Dean |
