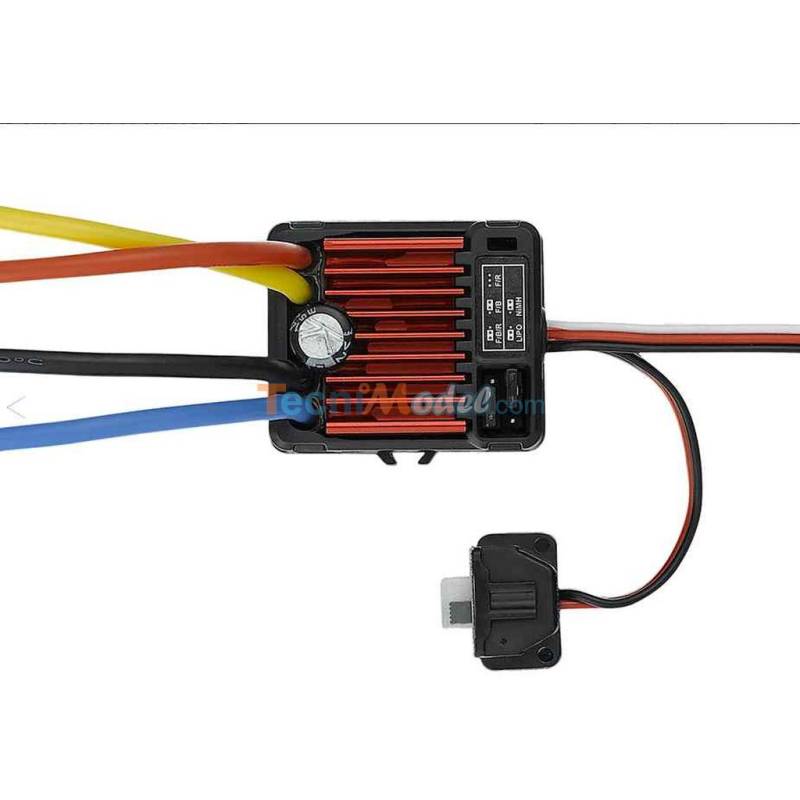

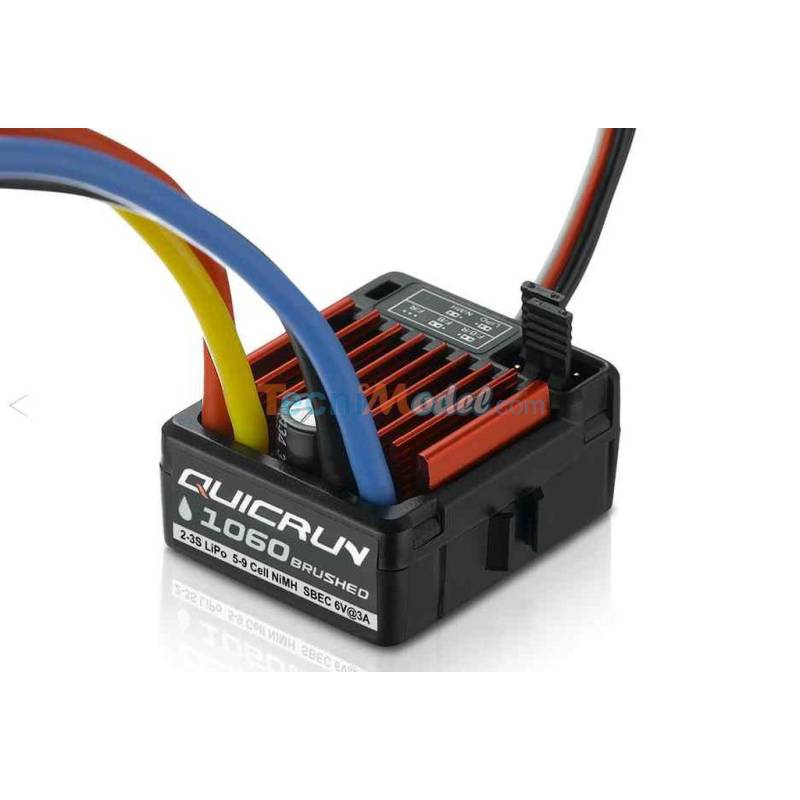

HobbyWing 1060 Quicrun Lipo 2S and 3S compatible ESC with Tamiya connector
HobbyWing 1060 Quicrun ESC, compatible with 2S and 3S LiPo batteries, with connector Tamiya
Reference : VAHW30120201
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA03
HobbyWing 1060 Quicrun Lipo 2S and 3S compatible ESC with Tamiya connector
HobbyWing 30120201
Electronic speed controller for brushed motors designed to be powered by LiPo or NiMh batteries. Can also be powered by 6V and 12V lead-acid batteries, but may trigger the "low battery" safety feature prematurely with 6-volt batteries.
Features:
- 3 Operating modes (set via jumper):
- Forward / Brake / Reverse
- Forward / Brake
- Forward / Reverse (motor braked in neutral)
- Permissible current limits:
- Forward: 60A
- Reverse: 30A (speed reduced by half in reverse)
- Permissible voltage range: 7.2V to 12V = 2S–3S LiPo or 6 to 9 NiMH cells
- BEC: 6V - 3A
- Internal resistance:
- Front = 0.001Ω
- Rear = 0.002Ω
- Splash-proof
- Dimensions: 36.5x32x18mm
- Weight: 39g
- Battery connector: Tamiya plug
- Motor connector: Ø4mm round pins (standard brushed motor)
- Receiver connector: Standard servo plug Graupner / JR
| Voltage (V) | 7.2 V - 12 V |
|---|---|
| Connector | Tamiya |
