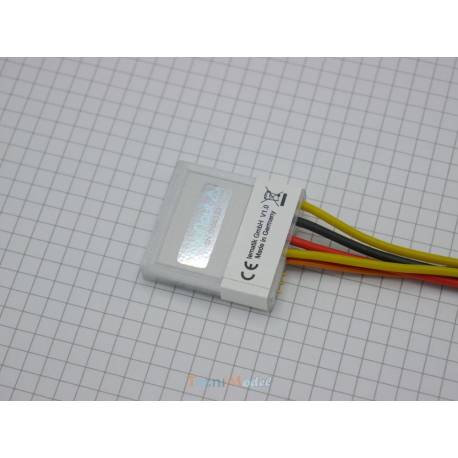

Compact Servonaut MQX ESC

Compact Servonaut MQX ESC

Manufactured by Servonaut

Servonaut MQX ESC for brushed motors for special functions or servomotor function.

This ESC for brushed motors can be used as a classic ESC (Electronic Speed Controller), but it can also be used with limit switches or with a feedback potentiometer to create a "super servo".

It can be used to control the motorization of any system fitted with a geared motor: bucket lifting, turret rotation, etc...

Compared with the Servonaut MFX ESC, it provides a higher current rating (12A for MQX instead of 8A for MFX) and has all cables on the same side, making it easier to install in certain conditions.

It also features a setting to adjust acceleration and braking characteristics.

Features :

• Power supply: 5 to 10 Nimh or 2S/3S Lipo cells
• Powerful electromagnetic brake
• Sampling frequency: 16Kz
• Continuous power consumption: 12A
• As ESC for limit switch function: can be connected to limit switches to stop the motor at the end of movement
• As a "super-servo" associated with a 2K or 5K feedback potentiometer (not included) (indications are provided in the enclosed manual)
• Operating status indicated by LED
• Protections: temperature, overload, undervoltage
• Dimensions: 36x33x8mm
• This ESC is NOT equipped with a BEC system
• French manual by Tecnimodel coming soon
