HobbyWing 1060 Quicrun Lipo 2S and 3S compatible ESC with T-DEAN connector
HobbyWing 30120203

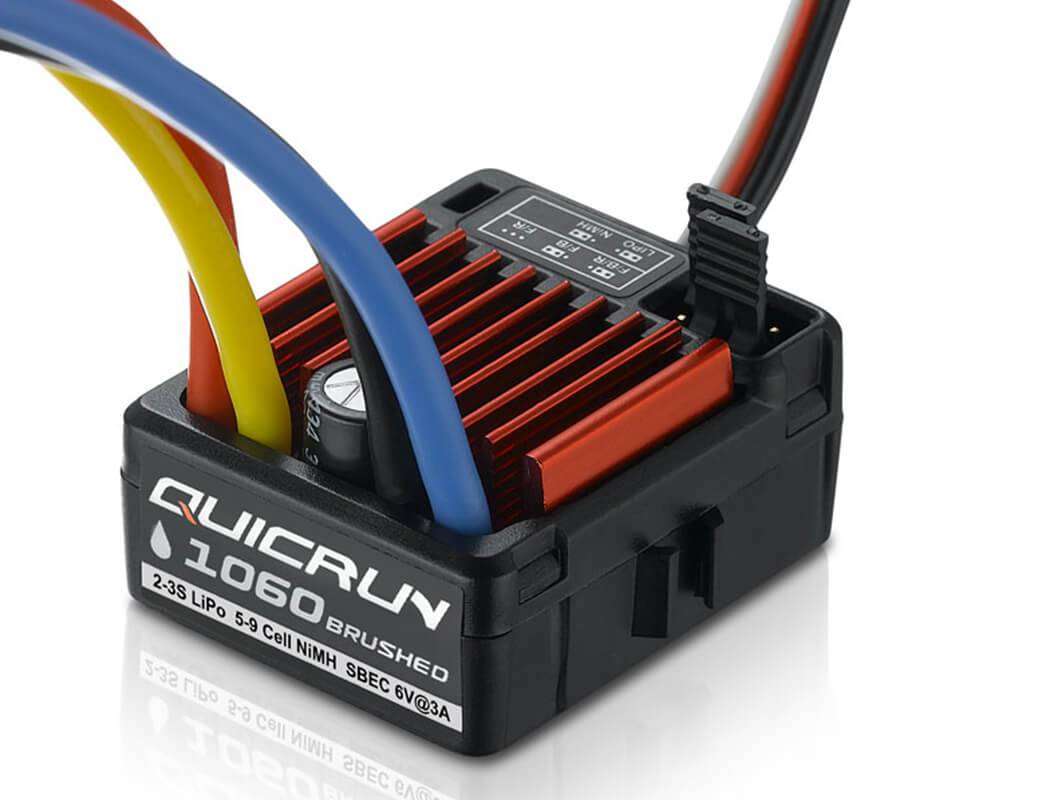

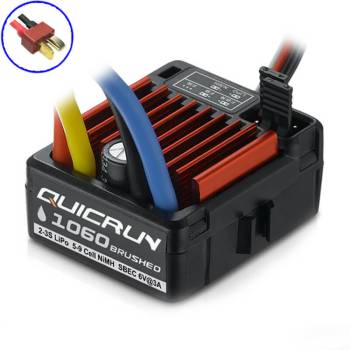

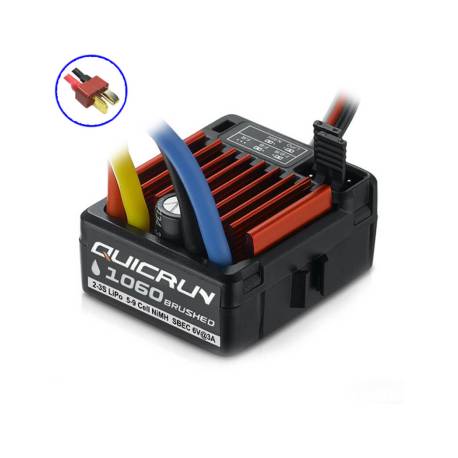

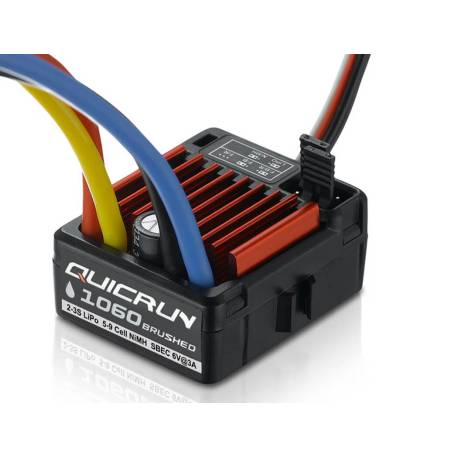

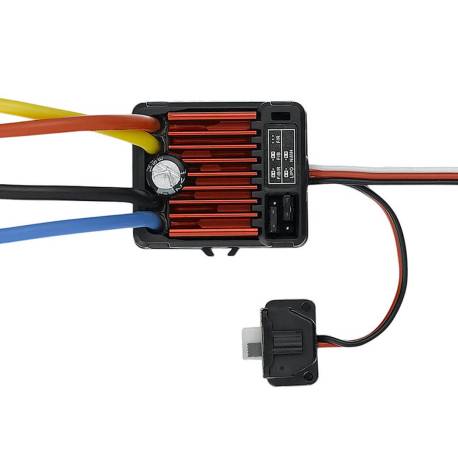

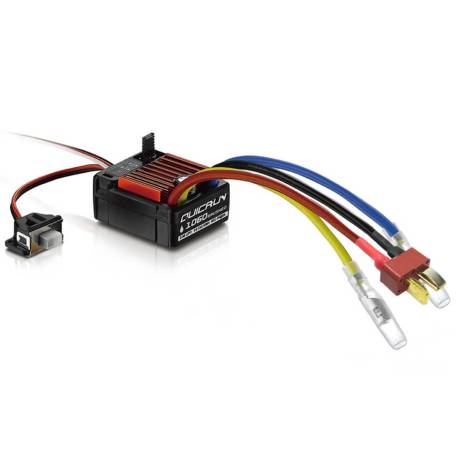

Electronic speed controller for brushed motors designed to be powered by LiPo or NiMh batteries. Can also be powered by 6V and 12V lead-acid batteries, but may trigger the "low battery" safety feature prematurely with 6-volt batteries.
Features:
- 3 Operating modes (set via jumper):
- Forward / Brake / Reverse
- Forward / Brake
- Forward / Reverse (motor braked in neutral)
- Permissible current limits:
- Forward: 60A
- Reverse: 30A (speed reduced by half in reverse)
- Permissible voltage range: 7.2V to 12V = 2S–3S LiPo or 6 to 9 NiMH cells
- BEC: 6V - 3A
- Internal resistance:
- Front = 0.001Ω
- Rear = 0.002Ω
- Splash-proof
- Dimensions: 36.5x32x18mm
- Weight: 39g
- Battery connector: T-Dean plug
- Motor connector: Ø4mm round pins (standard brushed motor)
- Receiver connector: Standard servo plug Graupner / JR
| Voltage (V) | 7.2 V - 12 V |
|---|---|
| Connector | T-Dean |
