THOR15HC 16A 16v ESC

THOR15HC 16A 16v ESC

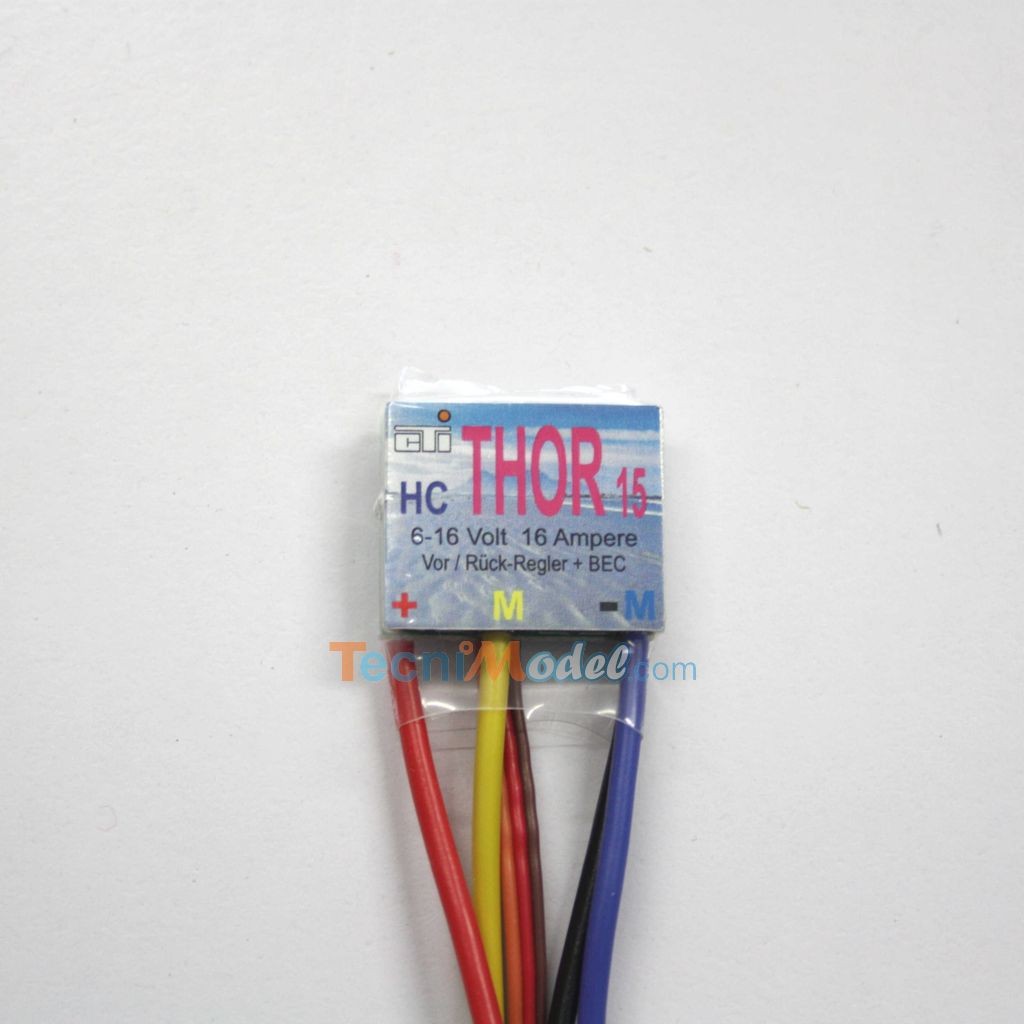

CTI THOR15HC

Variable speed drive for brushed motors and NiMh/Lead batteries, suitable for controlling downsized motors for slow propulsion (e.g. construction equipment)

With forward/reverse

Voltage: 6v - 12 v. (6 to 10-cell NiMh or 12v lead battery)
Internal resistance: 25 milliohms.
Maximum current: 16 amps.

Silicone cables 1mm² without plugs are supplied for battery and motor connection.
Dimensions: 24 * 20 * 6 mm

French manual

Note for BEC system (reception power supply):

BEC system for receiver and servos(max. power supply 9.6v, above this deactivate the BEC)
The 5 V and 1A BEC function provides thermal and short-circuit protection.
(With a 6v power supply, the BEC voltage is reduced)
When using several servos, the power of the BEC system may be exceeded, causing reception interruptions. In this case, deactivate the BEC by disconnecting the red wire from the cable linking the ESC to the receiver, then power the receiver with a dedicated "Ubec" module.
