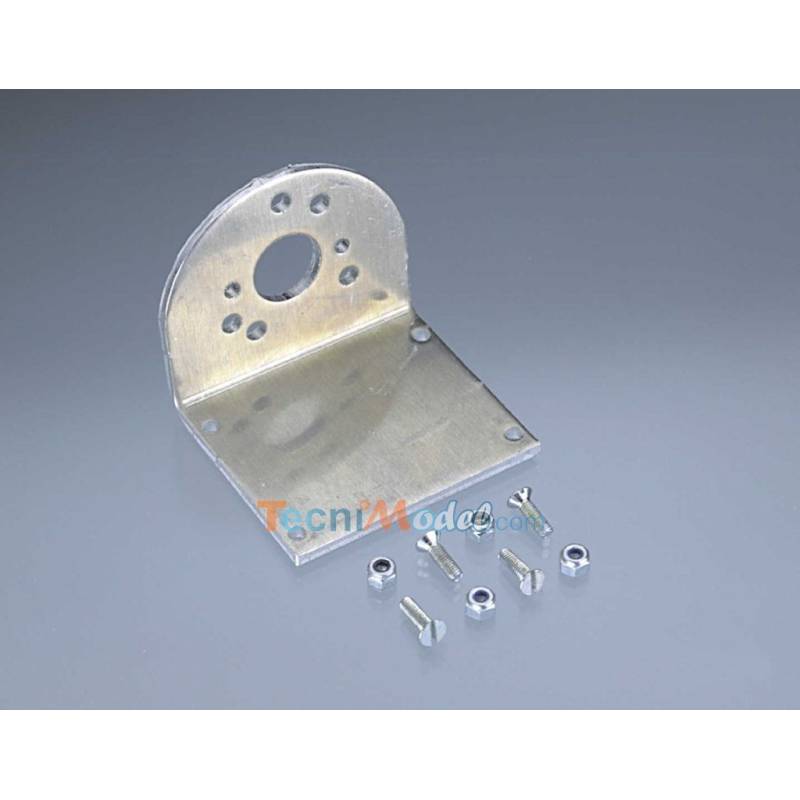

Motor mount for 500 to 800 size motor

Motor mount for 500 to 800 size motor

Krick ro1415

Very robust motor support, aluminum thickness 3mm, with several drilling in different entraxes to adapt to different types of motors. Possible engines from type 500 to type 800.

Central diameter: Ø15mm

Possible distance for motor fixing screws: 25mm and 29mm

More fixing possible by three screws of distance 27mm.

Note: The engine mount is not a 90° bracket: its angle is approximately 97° to tilt the motor towards the shaft.

Width: 55mm

Height: 45mm

Base length: 50mm
