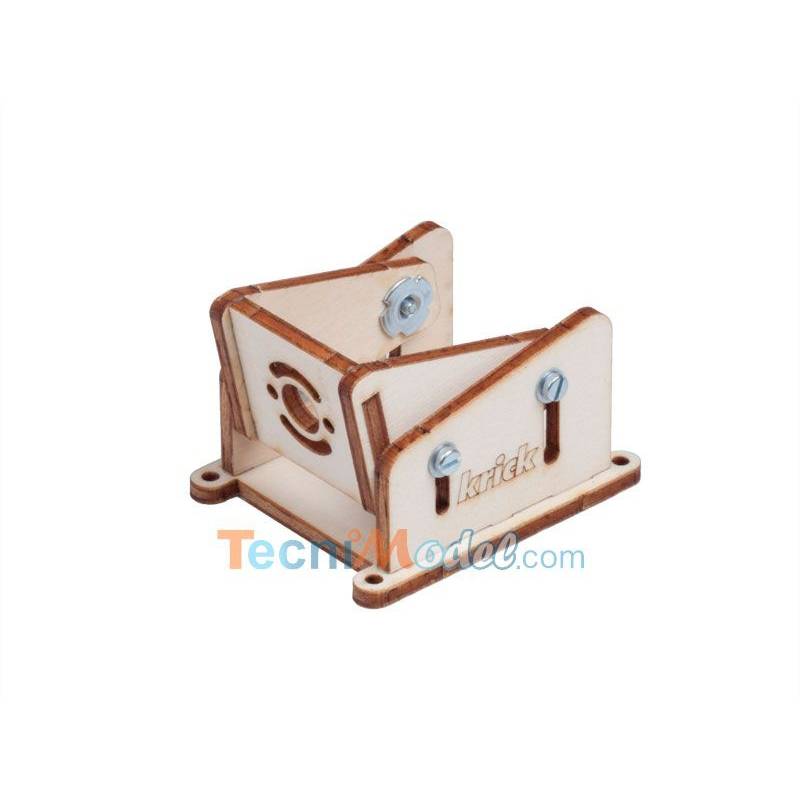

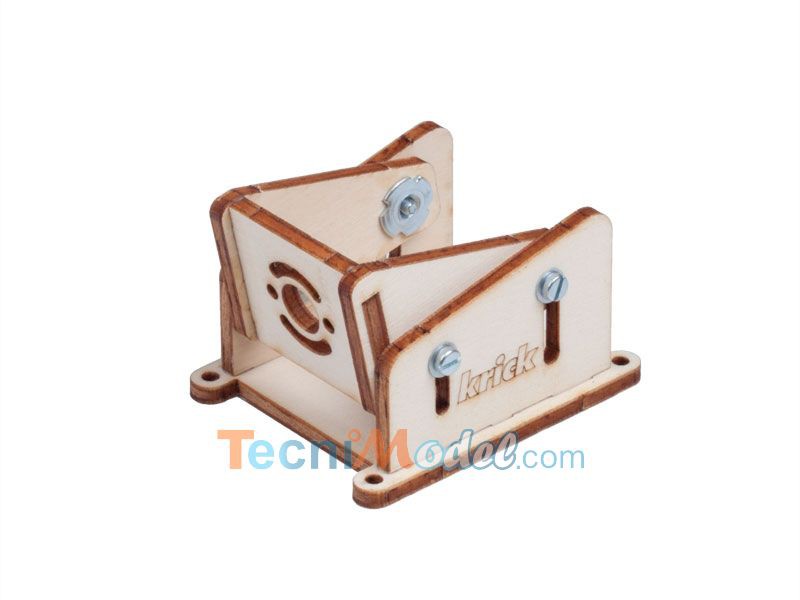

Adjustable motor mount for 500-600 size motor

Adjustable motor mount for 500-600 size motor

Wooden support, to mount.
Universal motor support for the attachment of an electric motor of size 500/540/600/650. Ideal for use in boat models. The electric motor is screwed head-on into the support. By deseclosing the four side screws, the height and inclination can be changed. Continuously adjustable angle of inclination up to 12 degrees.


Comes with the kit:

• Laser-cut wooden parts, to be assembled by gluing.
• Screws and nuts for the assembly of both parts in a regugable way.

Characteristics:

• Total width 62 mm
• Total length of about 87 mm
• Max height about 54 mm
• Min. height approx. 46 mm

Engine mounting hole spacing: 25 mm
Max electric motor diameter 40 mm
