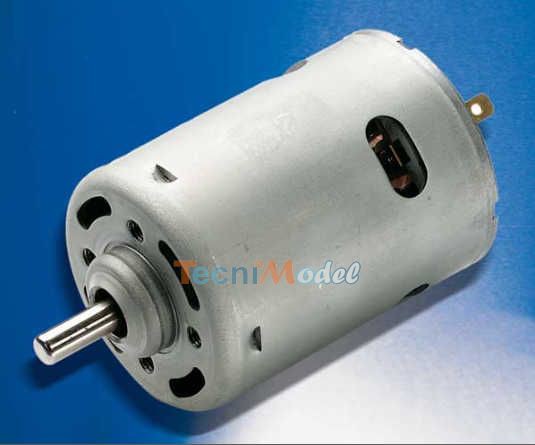

MAX Power 900 motor

MAX Power 900 motor

Ref Krick 42265

Brushed electric motor specially designed for direct drive of propellers (up to 90mm diameter) on large ship models. This motor features very high torque and low rpm.

Features

• Voltage range: 6 to 18 V
• Max. current approx. 5A
• Load speed (12v) 3000 rpm
• Stall current: 20.3 A
• Shaft: Ø6.35mm, length 18mm
• Housing dimensions Ø51.9 mm x 69 mm (diameter x length)
• Total length: 102mm, length (without shaft length): 84mm
• Mounting screw center distance: 32mm, M4 thread (motor mounting screws not supplied)
• Weight 480 g
• Motor supplied without interference suppression
