ExpressLRS Micro TX V2 868Mhz Module + SuperP 14-channel Receiver

ExpressLRS Micro TX V2 Module 868Mhz + SuperP 14-channel receiver package

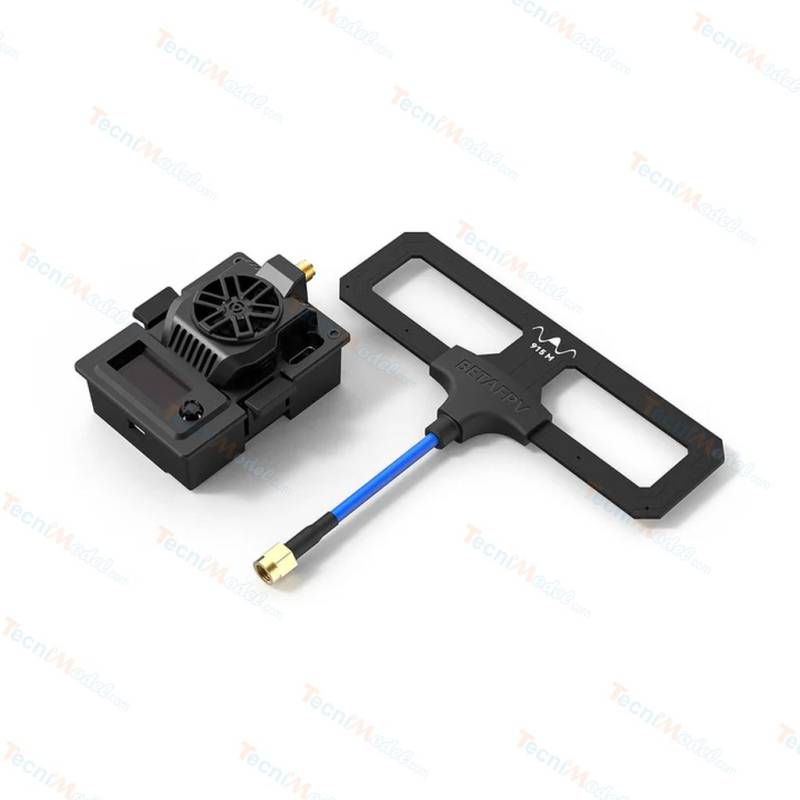

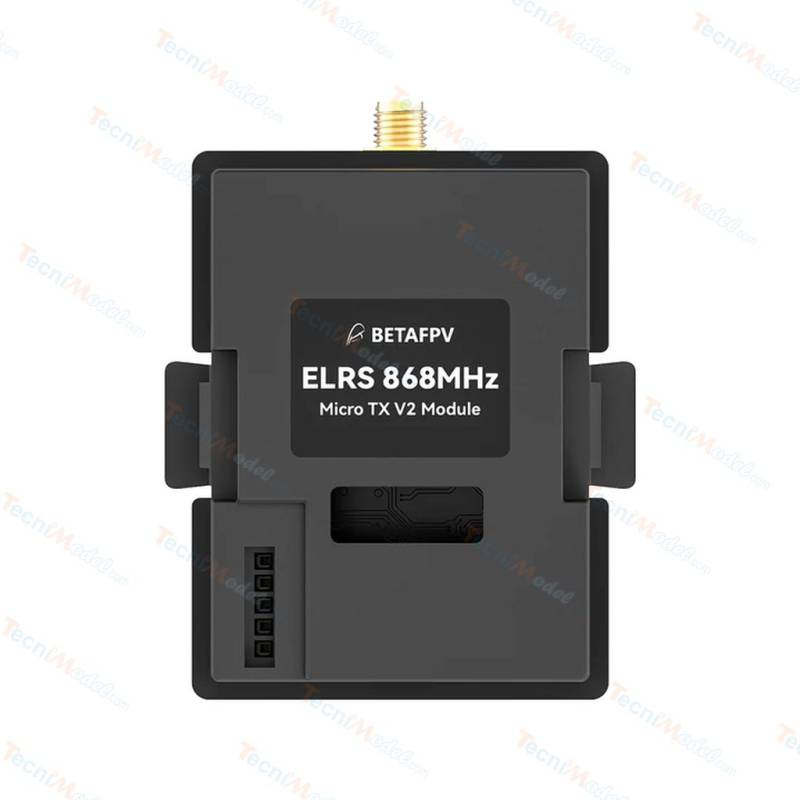

ExpressLRS 868Mhz Micro TX v2 transmitter module

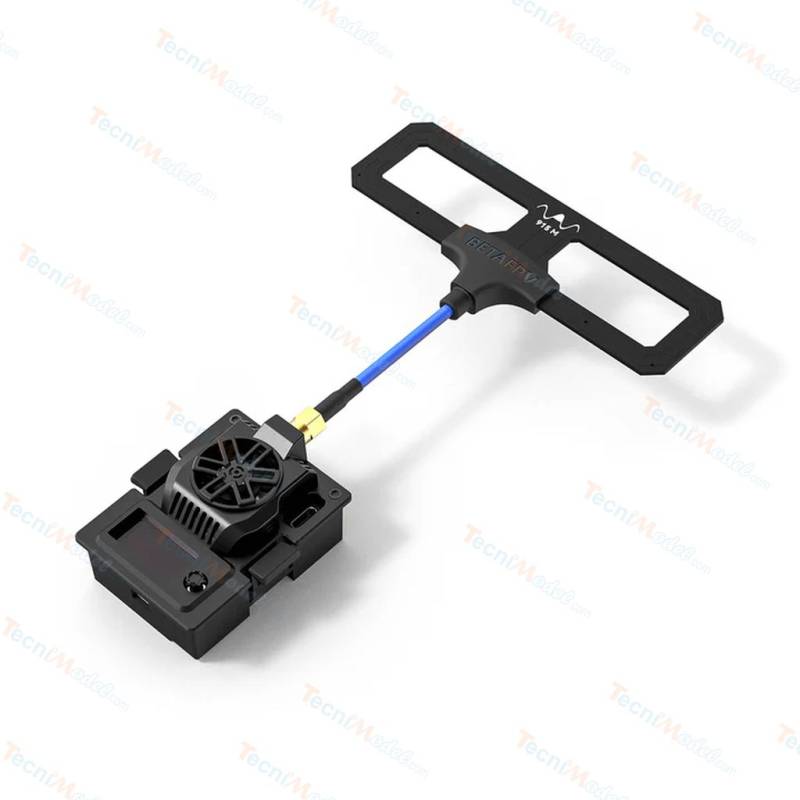

This "Micro" format 868Mhz transmitter module can be installed on the back of any radio control equipped with a "Micro" or Graupner format slot.

The 868Mhz transmission system with ExpressLRS protocol enables signals to be transmitted even at some depth underwater. Our tests showed a control depth of around 1.15m in chlorinated water, and a little more in freshwater. This system is therefore a solution for any modeler wishing to pilot a radio-controlled submarine who doesn't own an FM radio.

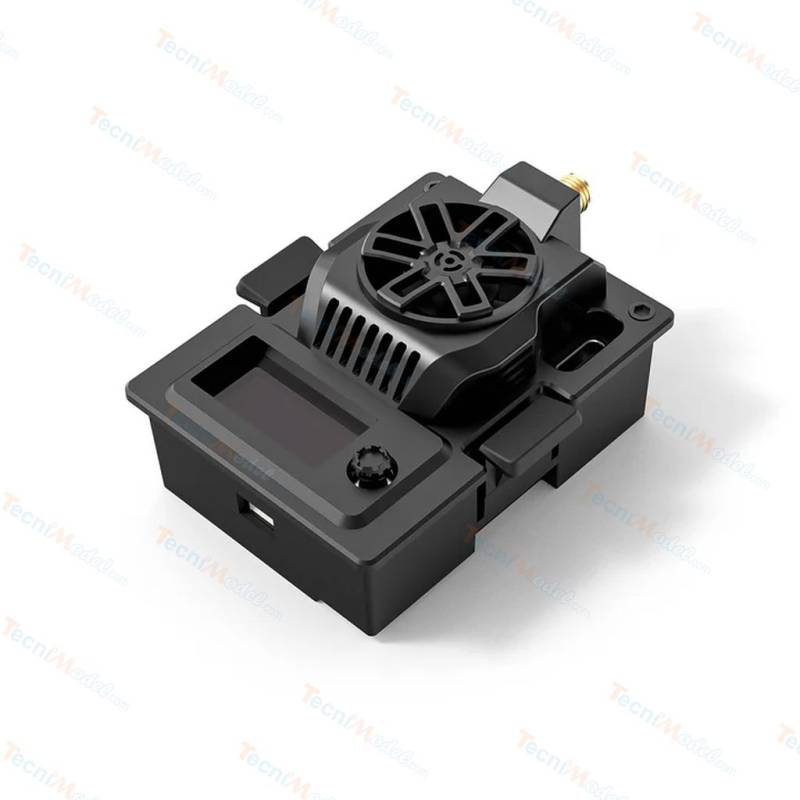

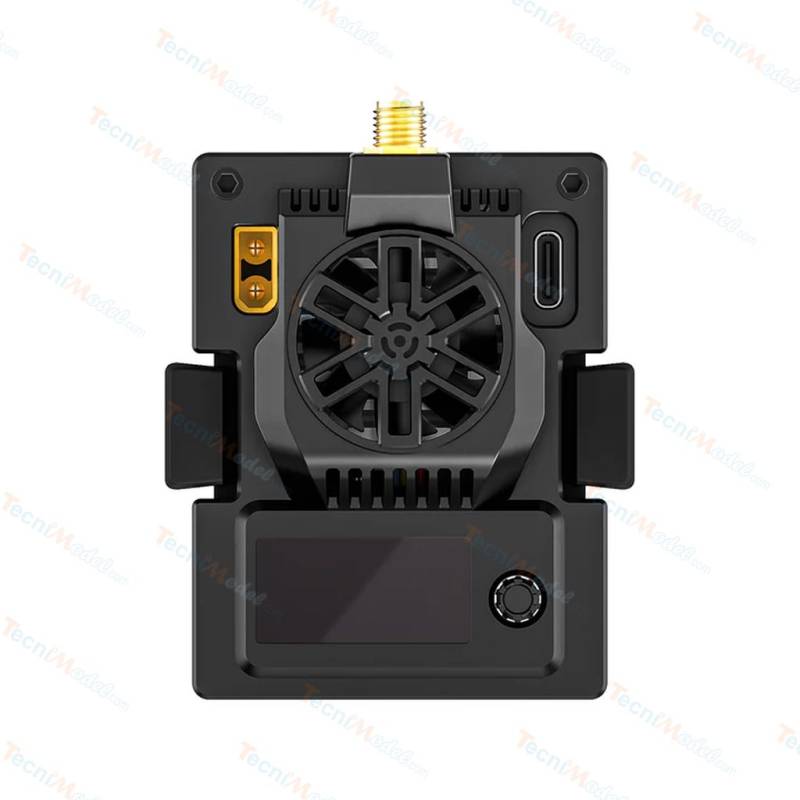

The module features a display and a "5D" button for configuring module parameters. It includes an XT30 socket for an external power supply: depending on the transmitter's configured power, the transmitter module's electrical consumption may require it to be powered by a small battery 7.2-7.4v in order to limit consumption of the transmitter's main battery.

This module is a version 2 of the transmitter module, with several improvements in terms of features:

• Improved transmitting power.
• Increased fan speed.
• Improved transmitter component.
• Increased input voltage range (5-25v)

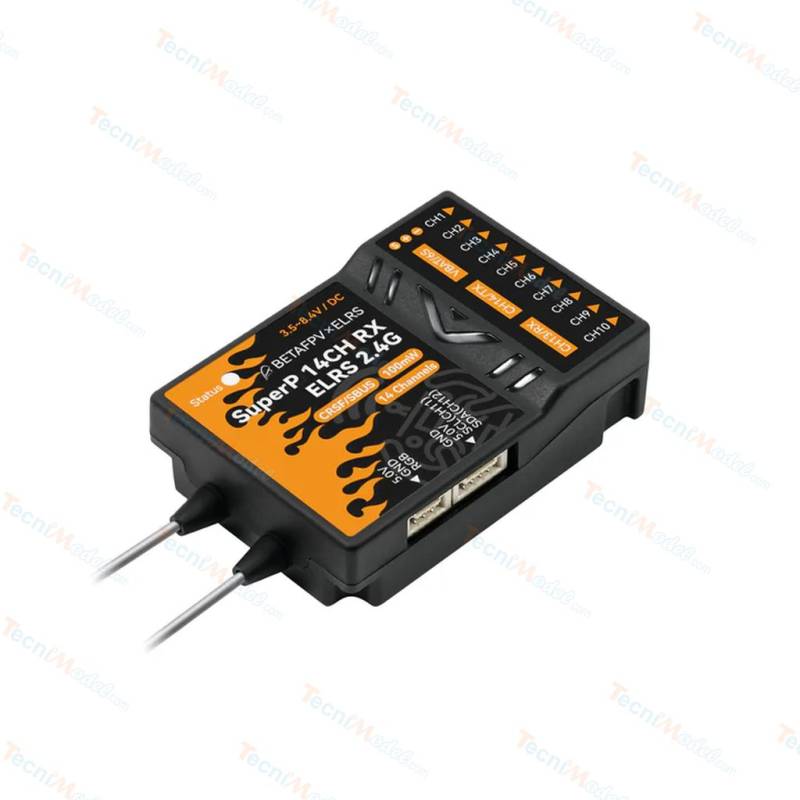

14-channel SuperP 866Mhz receiver.

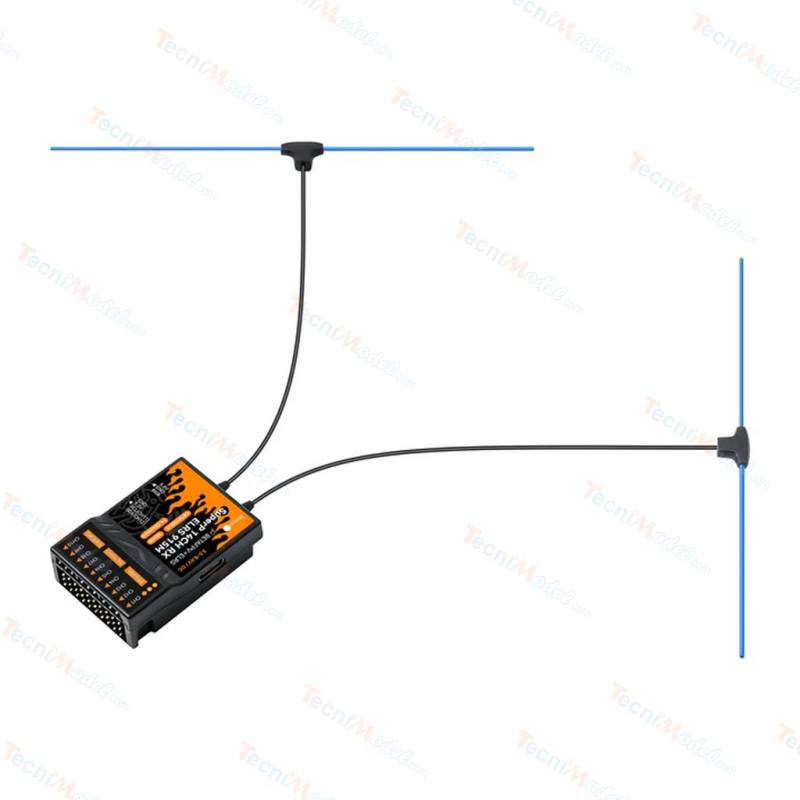

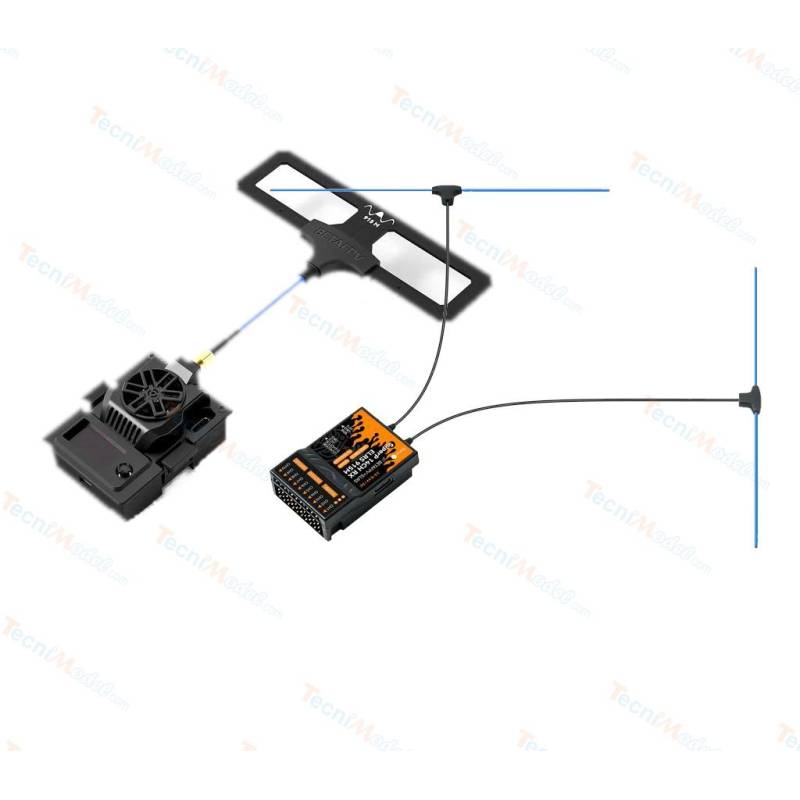

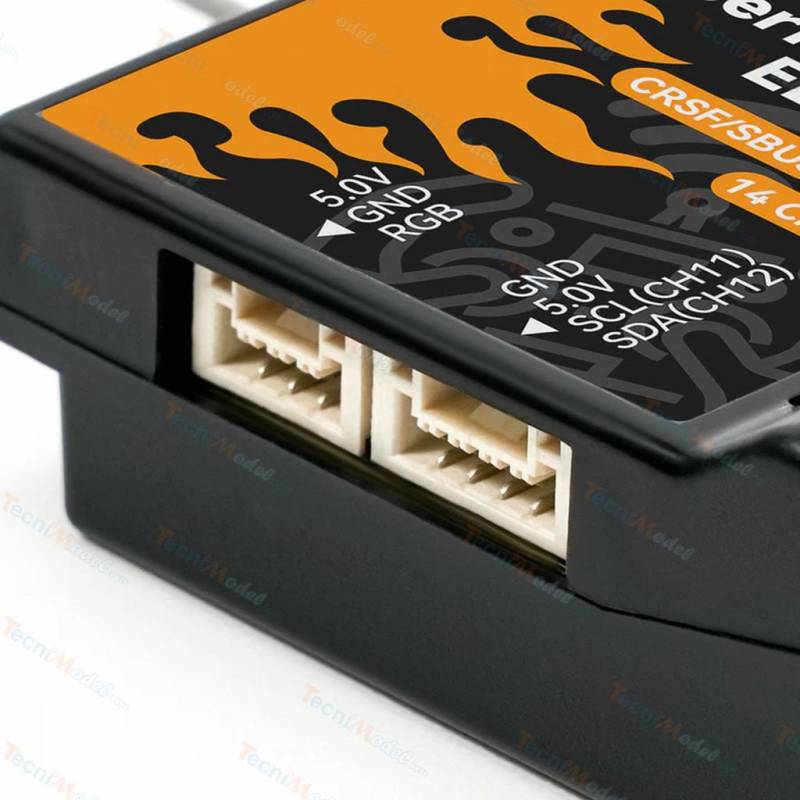

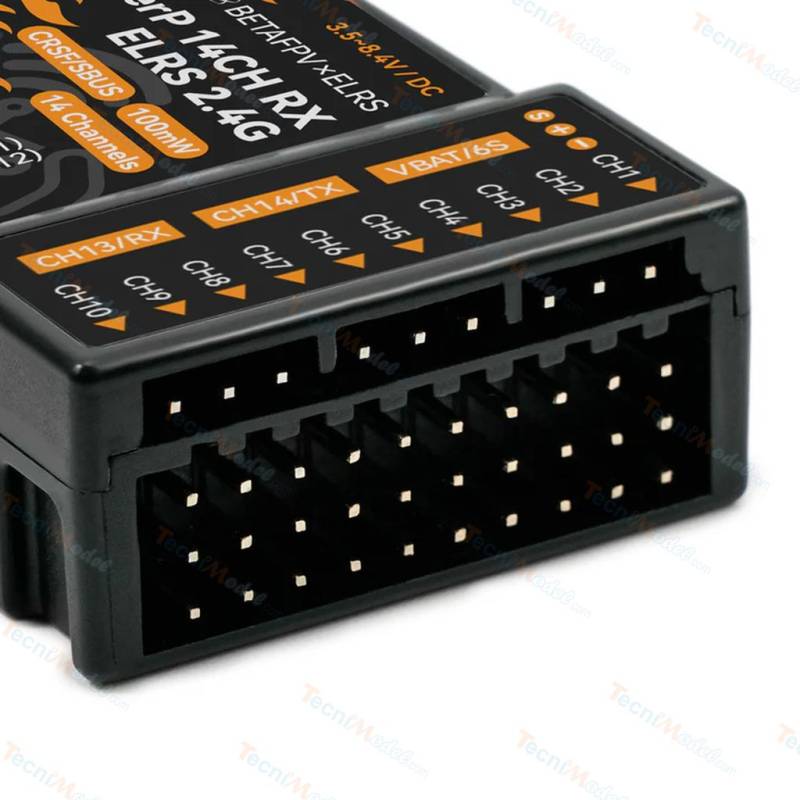

This ExpressLRS 868Mhz receiver features 14 channels (14 PWM outputs). It features two T-shaped antennas that should be placed as far apart and as perpendicular to each other as possible to optimize reception.

Transmitter module specification :

• BETAFPV Micro TX V2 Module | ELRS 915/868MHz
• Weight: 54.8g
• Color: Black
• Antenna Connector: SMA-KE
• RF Power: 10mW/25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
• Packet Rate: 25Hz/50Hz/100Hz/100Hz Full/200Hz/D50
• Frequency Band: 868MHz EU
• Backpack: Support
• Input Voltage: 7V~13V DC
• Rated Current: 10V,1A@2000mW,200Hz, 1:128
• USB Port: Type-C
• Fan Voltage: 5V
• Default Firmware Version: ExpressLRS V3.4.3
• Additional power connector: XT30

Receiver specification:

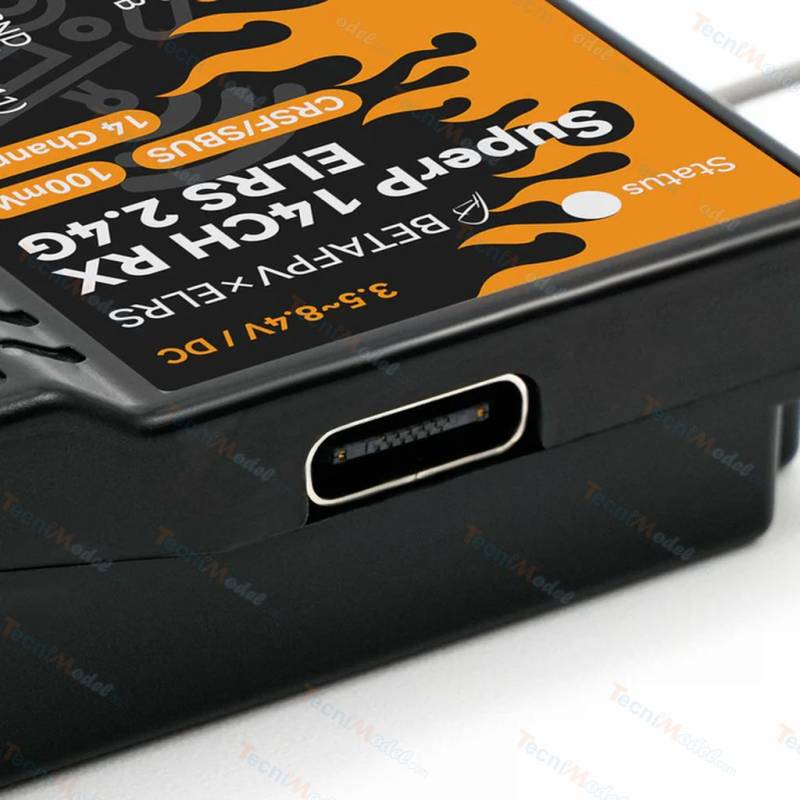

•     Item: BETAFPV SuperP 14CH Diversity Receiver | ELRS 868MHz
•     MCU: ESP32 Pico D4 + 2*SX1276（868MHz）
•     Telemetry Power: 17dBm/50mW (868MHz)
•     Frequency Bands: 868Mhz EU
•     Rated Current: 140mA@5V (868MHz)
•     Weight: 15.8g (868MHz)
•     Default Firmware Version: ExpressLRS V3.3.0
•     Serial Output Protocol: PWM, CRSF or SBUS
•     Antenna: 2* IPEX MHF 1 Antenna
•     Size: 46.9mm*32.7mm*14.6mm
•     Voltage Detector Range: 1~6S
•     Input Voltage: 3.5V~8.4V DC
•     PWM Channel: 14 Channels
•     Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats, RC Submarines, and etc.

Radio control compatibility:

This transmitter module can be installed on a radio control system with a slot for a “Micro” format transmitter module, such as the Fr-Sky X9D and Fr-Sky QX7 radios.

The radio control must be able to communicate with the transmitter module using the CRSF protocol. The module is best configured using a LUA script.

On OpenTX-based Fr-Sky radios, version 2.3.12 or higher is required.
