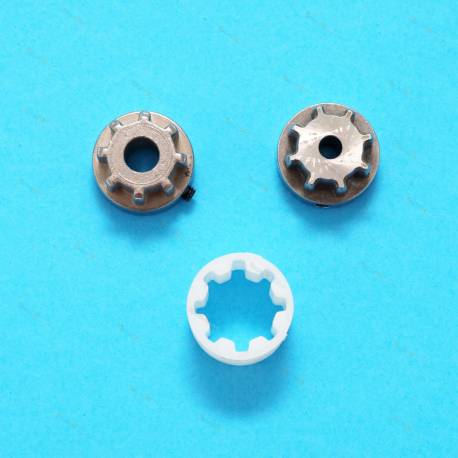

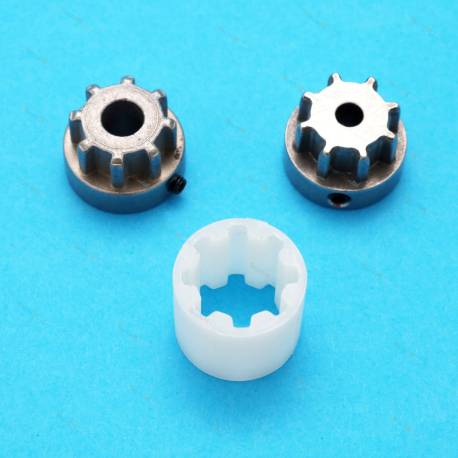

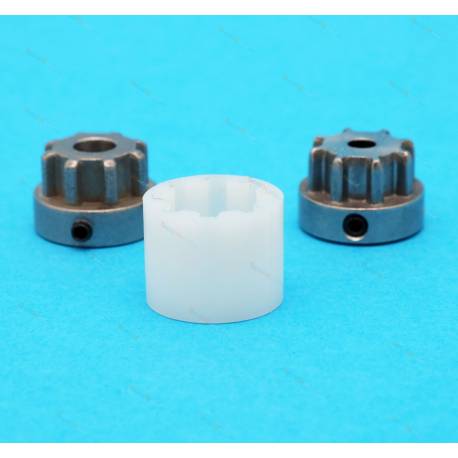

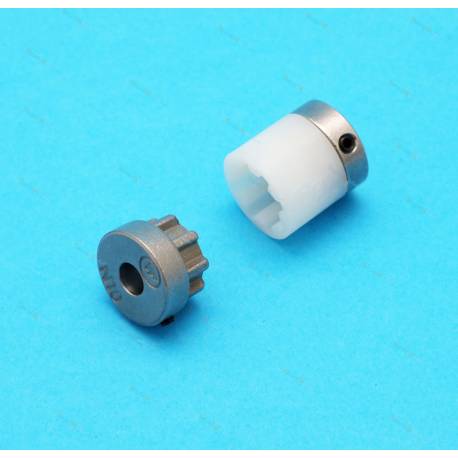

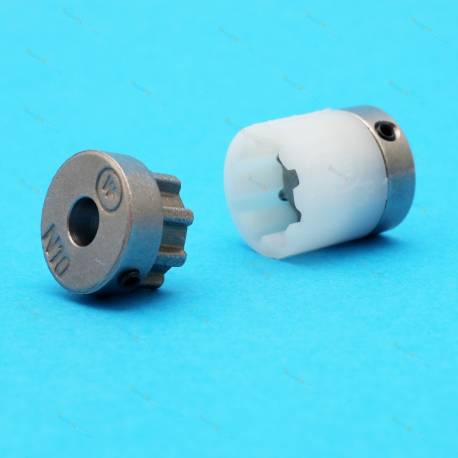

1 Heavy-duty coupling Ø4/Ø6.35mm
Coupling for high-torque transmissions. This coupling requires good alignment between the motor and the driven shaft, but ensures noiseless, vibration-free transmission.
For Ø4mm and Ø6.35mm diameter shafts.
This type of coupling is not suitable for very high rotational speeds. Maximum 16–18,000rpm.
Features :
- Shaft 1 diameter: Ø4mm
- Shaft 2 diameter: Ø6.35mm
- Total length: 26mm
- Outside diameter: Ø18mm
- Span of each insert: 12mm
- Length of flexible sleeve: 14mm
| Shaft diameter | Ø4mm Ø6.35mm (Ø1/4") |
|---|
