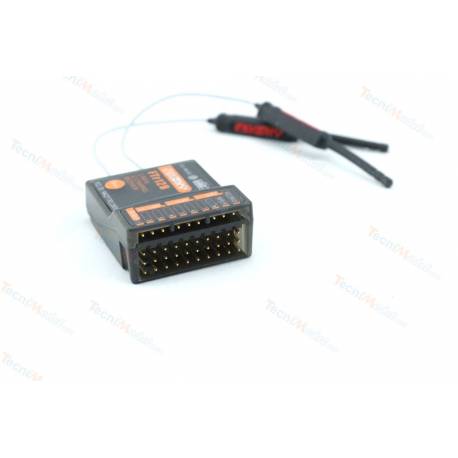

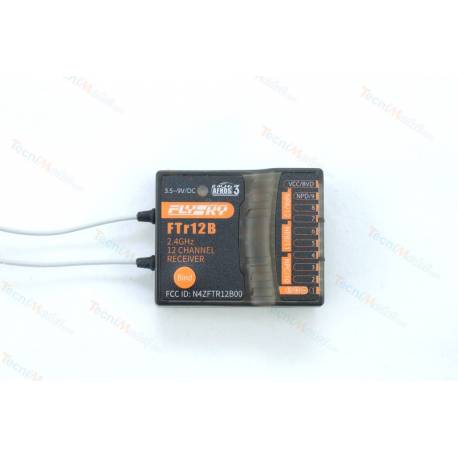

FLYSKY FTR12B AFHDS3 12-channel receiver

12-channel receiver FTR12B AFHDS3 from FLYSKY

FLYSKY FTr12B 12-channel receiver in AFHDS3, for radios using the AFHDS3 communication protocol ( Paladin radios ).

Features:

• Product designation : FTr12B
• Compatible transmitters: all AFHDS3 transmitters and RF modules (PL18, NB4, NB4 Lite, etc.)
• Model types: fixed wing, glider, helicopter, delta wing, trucks and construction machinery, etc.
• PWM channels: 12
• RF: 2.4GHz
• 2.4Ghz communication protocol: AFHDS3
• Antenna: Dual antennas
• Supply voltage: 3.5v - 9v
• Data output : PWM / PPM / i.BUS/S.BUS output
• Temperature range: -10℃ to +60℃
• Humidity limit: 20% - 95%
• Online update: Yes
• Dimensions: 39*32*15mm
• Weight : 15g
• Certification: CE，FCC ID: N4ZFTR12B00

Pairing procedure.

• Press and hold the "BIND" button on the receiver while powering up the receiver, release the "BIND" button after powering up the receiver, the receiver LED flashes rapidly.
• Put the transmitter into bind mode.
• The binding process is complete when the receiver LED stops flashing and remains permanently lit.
• If a transmitter whose radio frequency (RF Standard) is set to "AFHDS3 1 way" (please refer to your transmitter's user manual) enters pairing mode, the receiver LED flashes slowly. Exit pairing mode on the transmitter, and if the receiver LED stops flashing and remains permanently lit, the pairing process is complete.
• Check that transmitter and receiver functions are working correctly, and repeat steps 1 to 3 (pairing process) if you encounter any problems.
