10-channel receiver iA10B AFHDS2A FLYSKY
10-channel receiver iA10B AFHDS2A FLYSKY
Reference : RAFLIA10B
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AH01

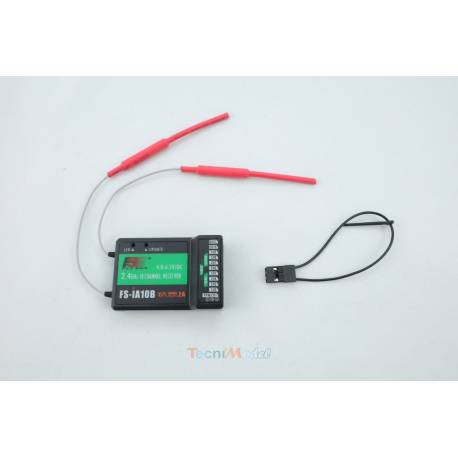

IA10B AFHDS2A FLYSKY 10-channel receiver
FLYSKY 10-channel receiver for FLYSKY FS-i6S radio controls.
Features:
- Model: FS-iA10B
- PWM channels: 10
- Wireless frequency: 2.4GHz
- Wireless protocol: AFHDS2A
- Range: 500 ～ 1500m (in the air)
- Antenna type: Dual copper tube antenna (150mm * 2)
- Supply voltage : 4.0-8.4V
- RSSI: supported
- Data port : PWM / PPM / i.bus / s.bus
- Temperature range: -10 ℃ - + 60 ℃
- Humidity range: 20 % - 95
- Online update: Yes
- Dimensions: 47 * 33.1 * 14.7 mm
- Weight: 19.3 g
- Certification: CE, FCC ID: N4ZFLYSKYIA10
Association procedure.
- Switch on the transmitter, press the icon to select [System], then scroll down and select [RX bind].
- Connect the link cable to the receiver's B/VCC port.
- Connect the power supply to any other port. The indicator starts flashing, indicating that the receiver is in association mode.
- Once successfully linked, the transmitter will automatically exit this menu, then the receiver indicator will stop flashing, indicating that the link has been successful.
- Remove the association cable and power cable from the receiver. Then plug the power cable into port B/VCC.
- Check servo operation. If anything goes wrong, repeat this procedure from the beginning.
