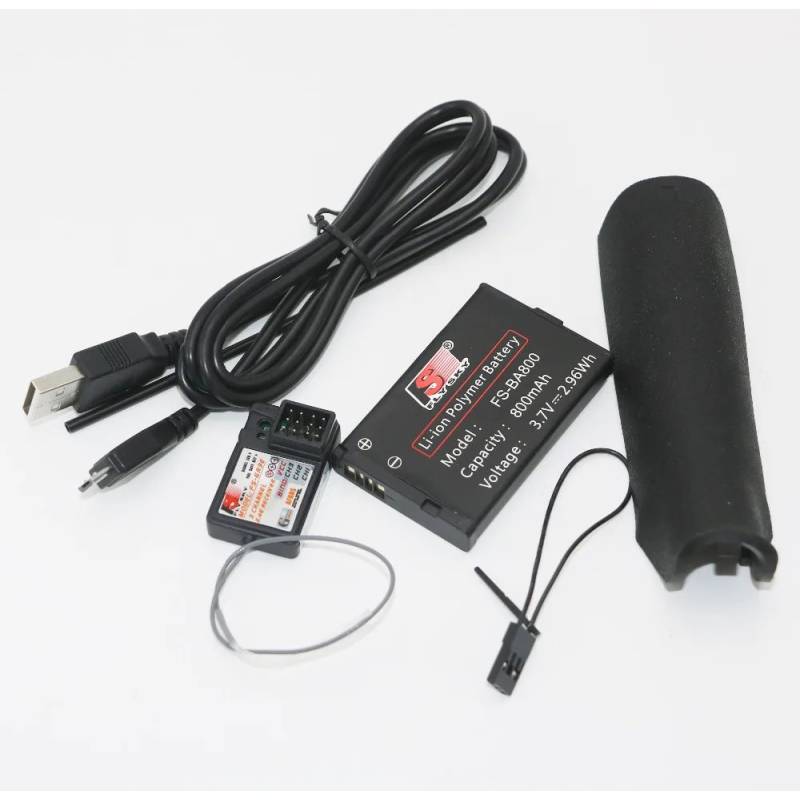

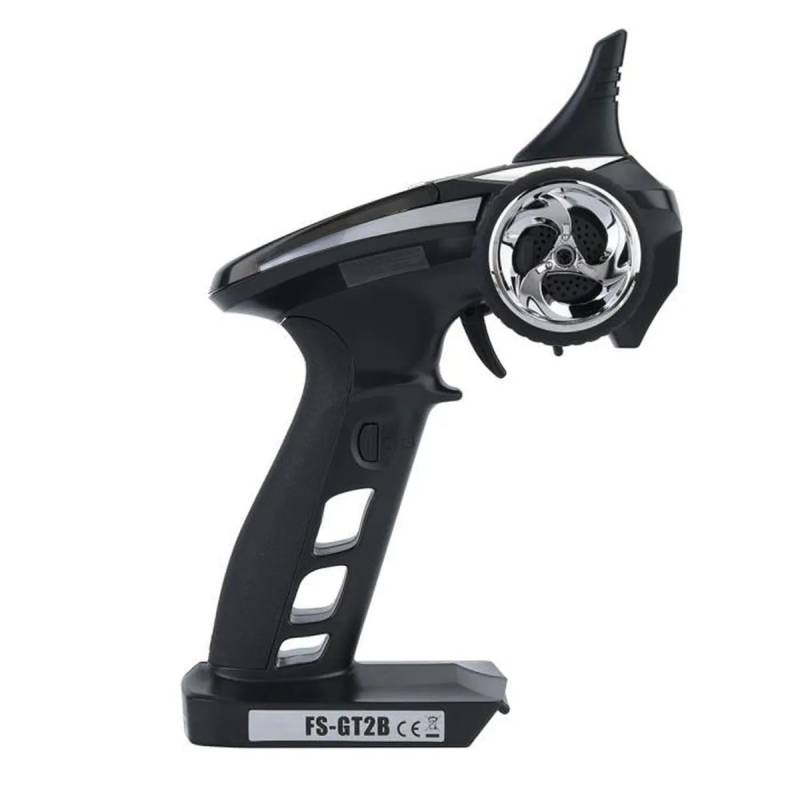

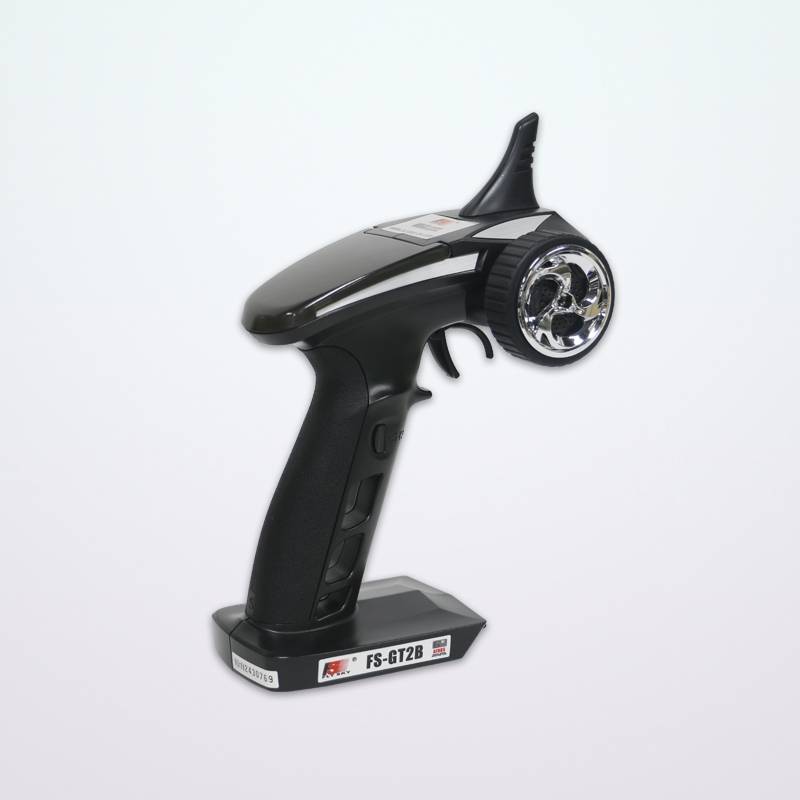

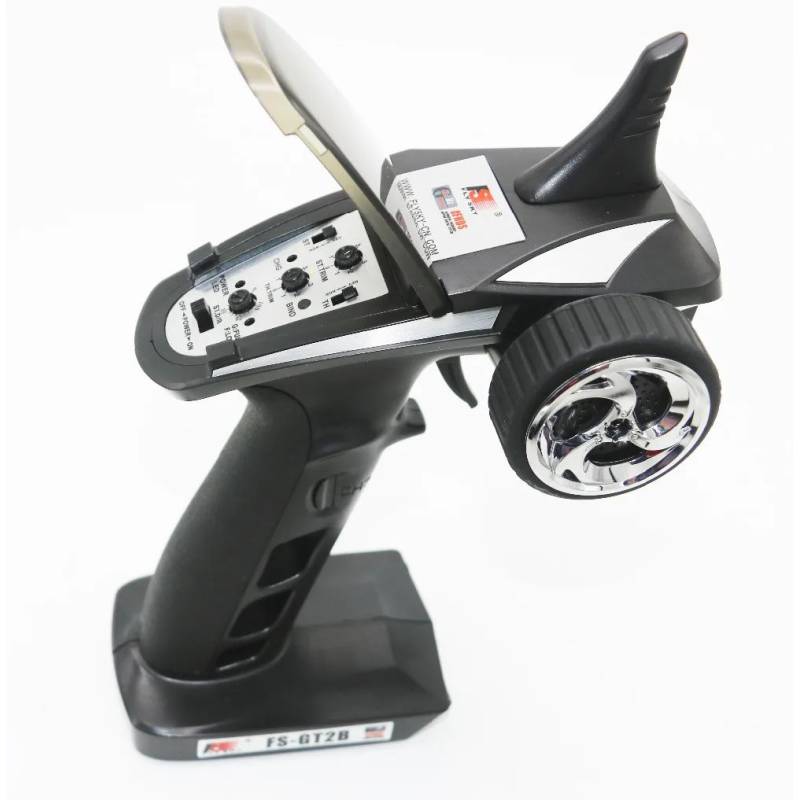

FlySky FS-GT2B 2.4GHz 3-channel transmitter with battery and receiver

FlySky FS-GT2B 2.4GHz 3-channel transmitter with battery and receiver

FlySky FS-GT2B

3-channel 2.4GHz flywheel radio control for car or boat, supplied with battery and receiver.

Technical specifications:

• Product model: FS-GT2B
• Number of channels: 3
• Models: car, boat
• Servo rotation direction reversal
• Fail Safe: on 2 proportional channels
• Dual Rate
• Frequency: 2.4GHz
• Wireless transmission protocol: AFHDS
• Transmission power: <20 dBm
• Range: 100 ～ 200m (at ground level)
• Channel resolution: 1024
• Battery: Li-Ion 1S 800mAh included
• Charging and data port: Micro USB (PPM)
• Low-voltage alarm: ＜3.7V
• Antenna type: compact external antenna
• Temperature range: between 0℃ and 60℃
• Online update: No
• Dimensions: 158x94x233mm
• Weight: 262g
• Certification: CE, FCC ID: N4ZFLYSKYGT2B

Pairing procedure:

Transmitter and receiver have been paired prior to delivery. If you are using a different transmitter or receiver, follow the steps below to link the transmitter and receiver:

1. Install the battery in the transmitter and switch it off.
2. Insert the pairing jumper into the receiver's BIND/CH3 port.
3. Connect receiver battery to VCC port on receiver. The LED flashes red rapidly, indicating that the receiver is pairing.
4. Press and hold the "BIND" button on the transmitter while powering up the radio control system. Observe the LED on the receiver. If the LED stops flashing, pairing has been successfully completed.
5. Switch off transmitter and receiver, then remove the pairing jumper. Install a servo and test its operation.
6. If the test fails, repeat the above operation. If the test is successful, pairing is complete.

This information applies only to the FS-GT2B and FS-GR3E receiver. Other receivers may require a different procedure. Please consult their respective user manuals.

220-volt mains charger available separately (please consult us).
