FLYSKY FS-ST8 8 channels Mode 2 transmitter + FS-SR8A 8 channels ANT receiver

FLYSKY FS-ST8 8 channels Mode 2 transmitter + FS-SR8A 8 channels ANT receiver

FLYSKY FS-ST8

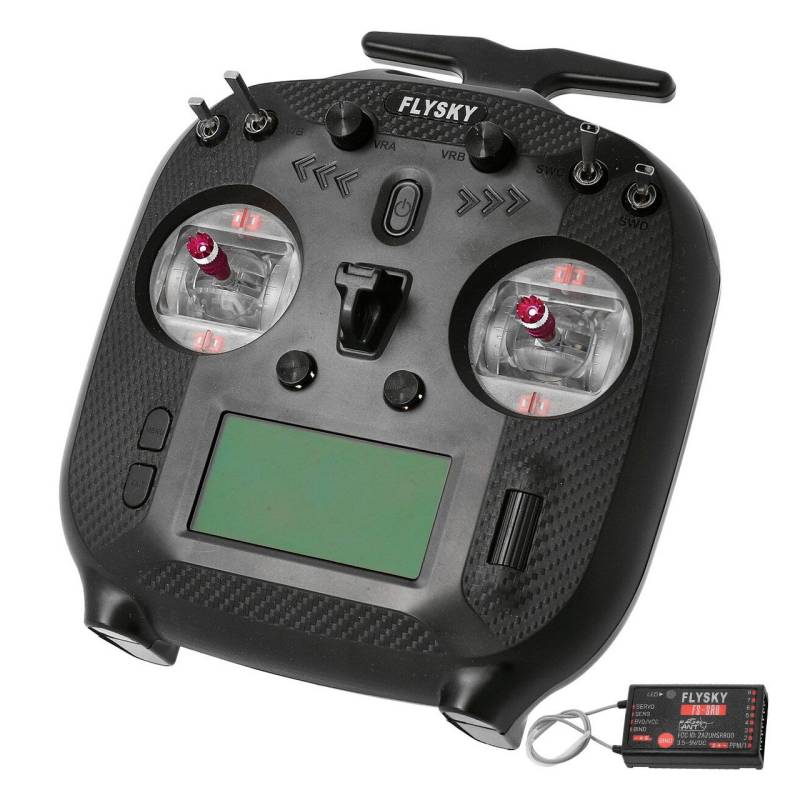

The FlySky FS-ST8 transmitter is a 2.4GHz 12-channel programmable radio controller suitable for all kinds of modelling (trucks, construction equipment, tanks, boats, drones, planes, cars, robots, etc.).

This versatile radio controller is easy to handle, with a good range and precision ideal for beginners or advanced hobbyists. Menu navigation is facilitated by a thumbwheel and 2 buttons.

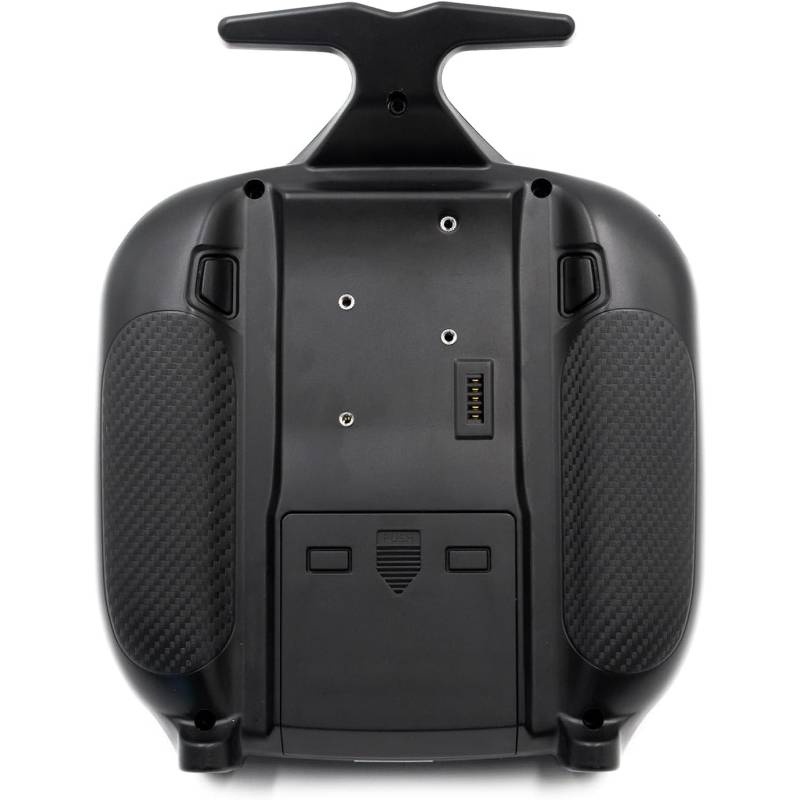

Programming allows custom assignment of switches and potentiometers to the desired outputs. Native features include 2 rotary potentiometers, 3x 2-position switches and 1x 3-position switch. It can be extended to 8 proportional inputs by adding 2 potentiometers with return to neutral on the top edge of the box, controlled by the indexes. The back of the box can also be used to add 2 additional pulse switches.

FlySky allows users to freely customize their device, with provision for additional inputs to be added at a later date. There's also space for an external antenna for a stronger signal.

ANT (Automatic Frequency Hopping) communication protocol provides a stable, long-range link (>1 km in ideal conditions).

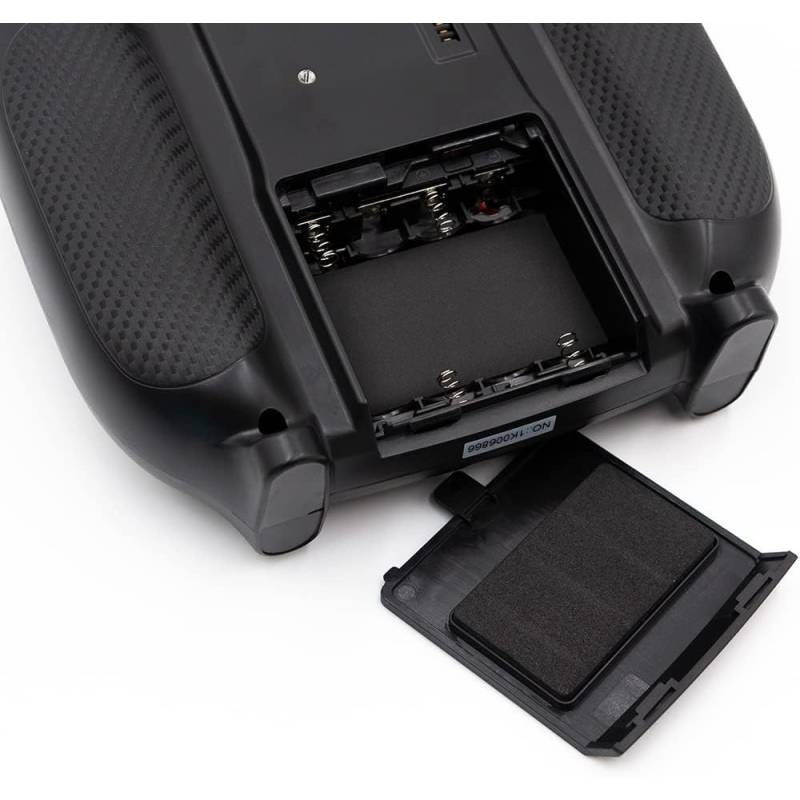

Power is supplied by 4 AA/LR6 batteries or a 2S LiPo battery fitted with a JST/BEC connector (4 x 1300mAh AA/LR6 NiMh batteries provide autonomy of over 10 hours).

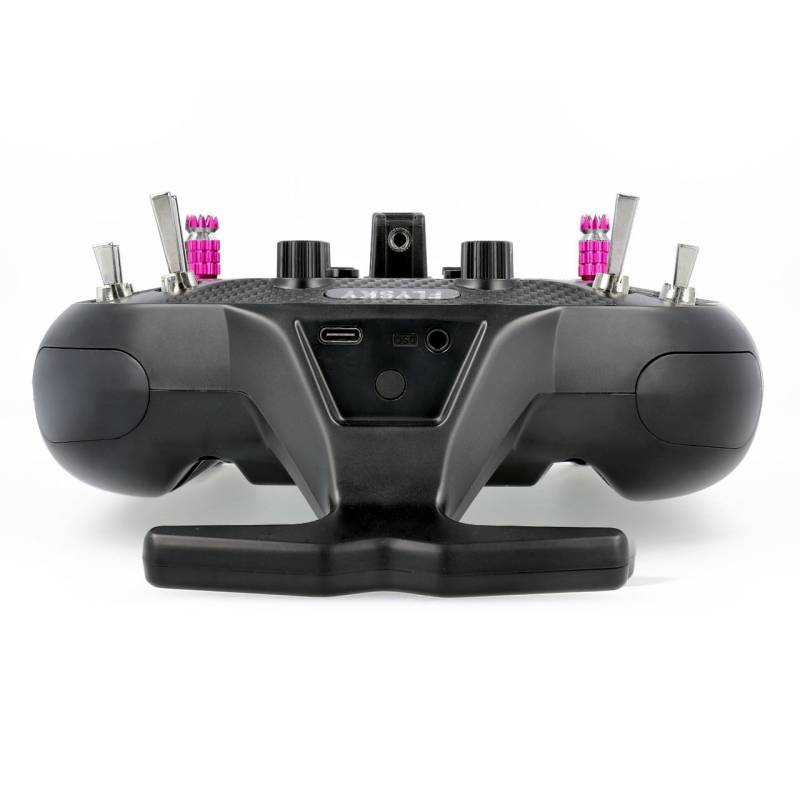

The USB Type-C port can also be used to power the transmitter for simulator use.

The radio control comes as standard in mode 2 (notched stick left), but can easily be converted to mode 1 (notched stick right). A conversion kit for automatic return to neutral of the notched stick is also available as an option (see "accessories" below).

Features :

• Transmitter model: FlySky FS-ST8 in standard configuration
• Channels: 12
• Proportional inputs: 6 in standard configuration
• On/Off inputs: 3
• Model memories: 10
• Mixes: 8 (+ track mix in excavator mode)
• Flight phases: 3
• Wireless frequency: 2.4GHz ISM
• Transmitter power: <20dBm
• Wireless protocol: ANT
• Channel resolution: 4096
• Configurable outputs: PWM, PPM, i-BUS, S.BUS
• Telemetry: Yes
• GPS management: Yes
• Schooling: Yes
• Battery: 4 AA/LR6 1.5V batteries or 2S accumulator (JST)
• Charging port: None
• Low voltage alarm: <4.2V / 7.2V
• Language: English and Chinese
• Antenna type: fixed dual antenna

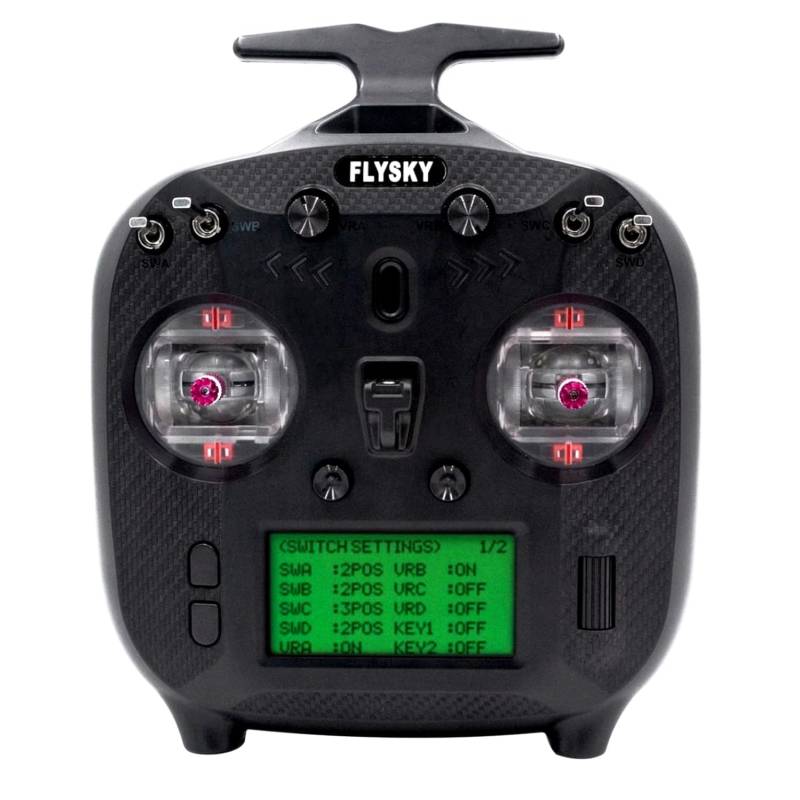

• Display: LCD 128*64
• Communication port: DSC, USB Type C
• Online update: Yes
• FlySky Assistant 3.0 compatibility: Yes
• Color: Black
• Dimensions: 176*210.9*82.5mm
• Weight: 420g

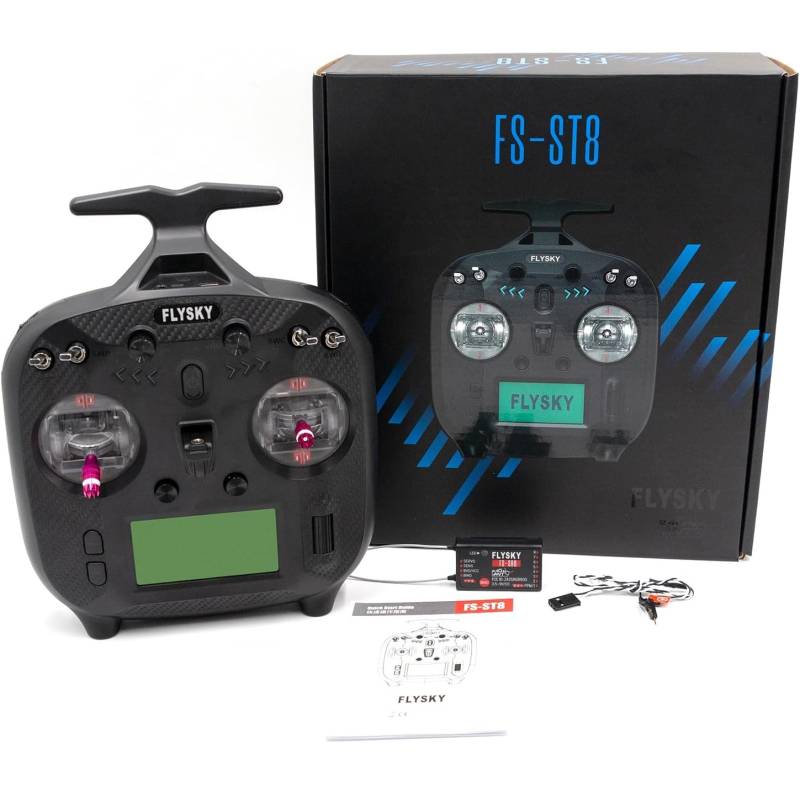

Scope of delivery:

• FS-ST8 12-channel 2.4Ghz transmitter

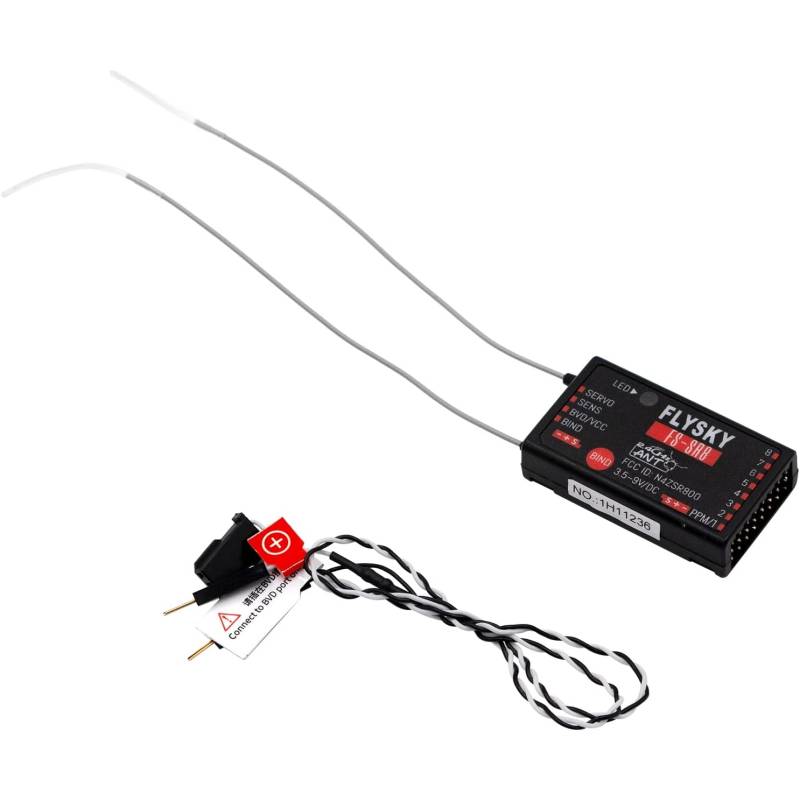

• FS-SR8 8-channel ANT receiver
• BVD cable (for measuring model battery voltage)
