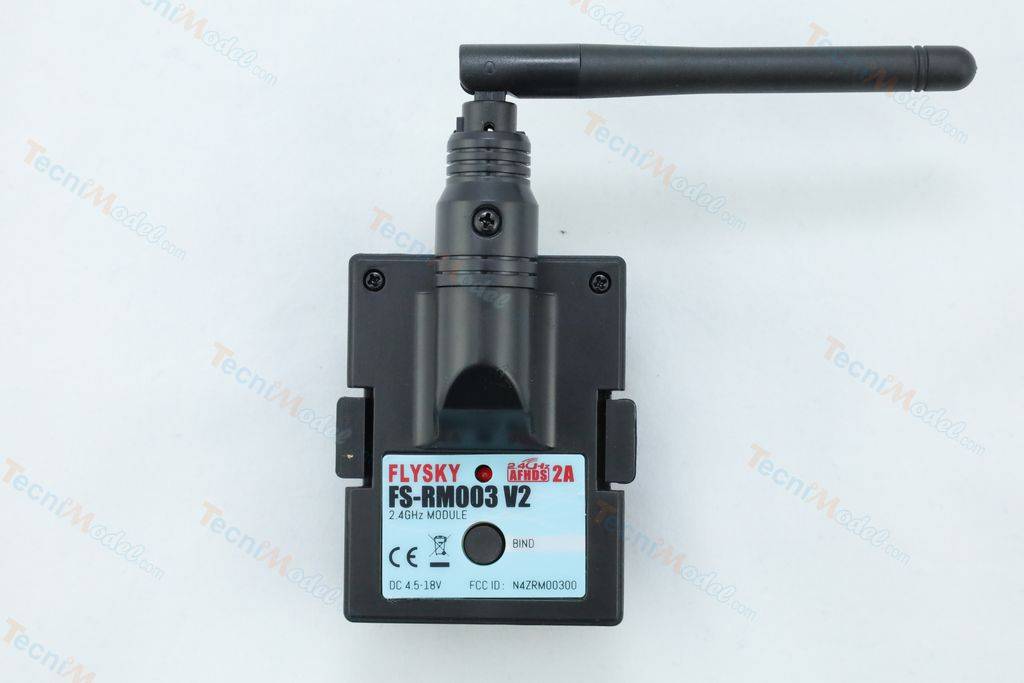

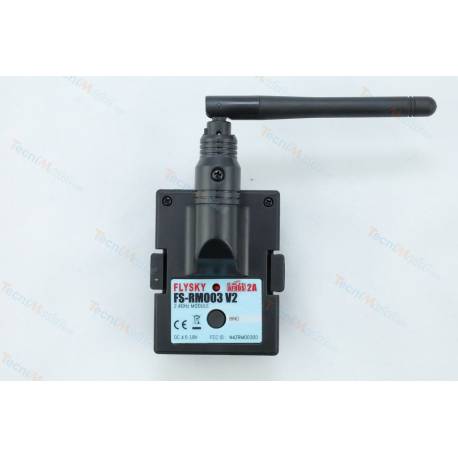

External transmitter module AFHDS2A FS-RM003 v2 by FLYSKY

External transmitter module AFHDS2A FS-RM003 V2 FLYSKY

External transmitter module ( JR format) in AFHDS2A protocol. Compatible with FLYSKY AFHDS2A receivers.

Can be installed in the external slots of X9D and QX7 radios to drive a model equipped with a FLYSKY AFHDS2A receiver such as the iA10B receiver.

• Product model : FS-RM003
• Frequency range: 2.4GHz
• Transmission power: <20dBm
• Wireless protocol: AFHDS2A
• Range: > 800m (air)
• Latency: <15ms
• Antenna type: single external antenna
• Power supply: 4.5V-18V
• Data port : PPM
• Temperature range: -10°C - +60°C
• Humidity range: 20% - 95
• Online update: Yes
• Dimensions: 178 * 52 * 40mm
• Weight: 41g
• Certification: FCC ID: N4ZFRM00300

Configuration in an X9D Fr-Sky radio:

• Install the module in the external port.
• In the model memory, set the external transmit module to PPM.
• Configure the channels assigned to the external module.

Association process with an iA10B receiver:

• Press and hold the "bind" button on the external module and start the radio control system.
• When the remote control has started, release the module's "bind" button.
• The module LED should flash rapidly.
• On the iA10B receiver, place the association jumper on port "B/VCC"
• Start the receiver, its LED will flash and then become steady.
• On the module, the LED will remain steady, the association process is complete.
