FLVS ADV without display: Lipo/Lion/LiFe battery voltage sensor with Smart-Port, for FR-SKY telemetry

FLVS ADV without display: Lipo/Lion/LiFe battery voltage sensor with Smart-Port, for FR-SKY telemetry

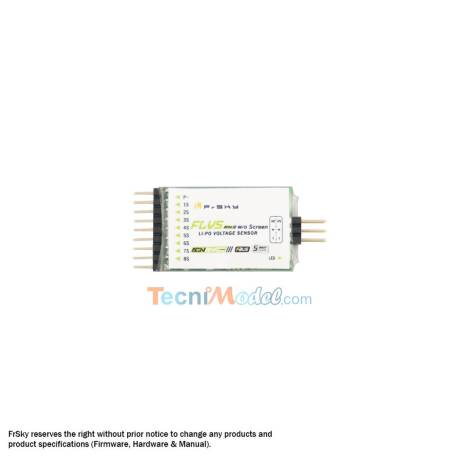

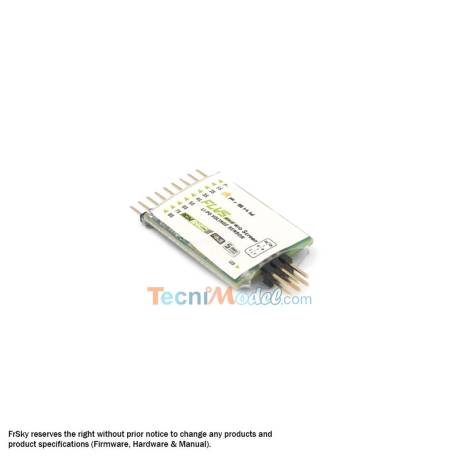

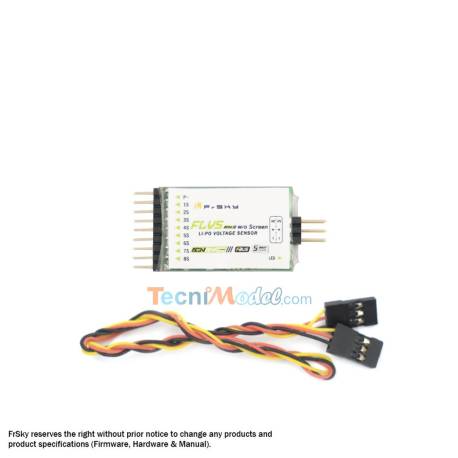

Fr-Sky FLVS ADV w/o Screen

This FRSKY telemetry sensor lets you know the voltage of each individual cell of a Lipo, Li-ion or LiFe battery while it's being used in the model

Connects to the battery balancing socket. Can be used up to 8S!

FrSky has improved the performance and capabilities of its sensors, leading to the development of the new ADVANCE (ADV) sensor series. All ADV sensors fully support the FBUS protocol and are also compatible with S.Port.. Thanks to the FBUS protocol, ADV sensors can be seamlessly linked to an FBUS-compatible receiver, further simplifying model construction.

The FLVS ADV w/o Screen voltage sensor can measure the voltage range of lithium batteries from 2S to 8S with an accuracy of 0.05V. It's the obvious choice for accurate measurement of high-capacity Li-Po batteries.

This version, without its OLED display screen, saves weight and space.

Connection to the Smart-Port or FBus of the FR-SKY receiver.

Features :

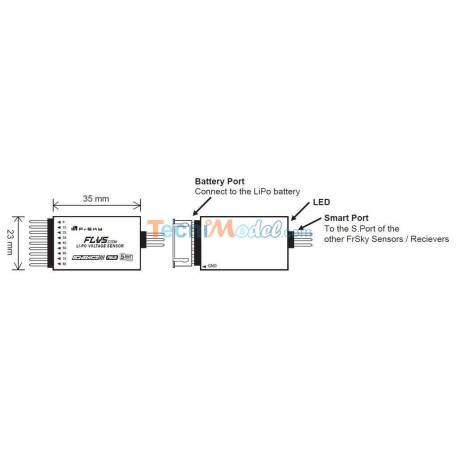

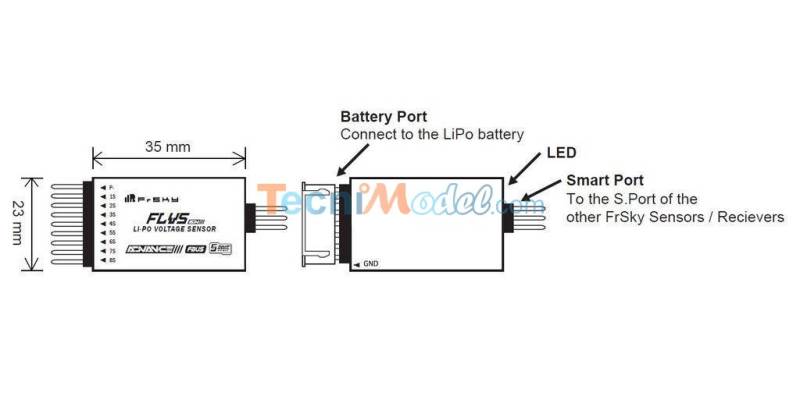

• Dimensions: 52x23.5x5.7mm
• Weight: 5.3g
• Voltage measurement range: 2S to 8S
• Power consumption (S.Port) : 10mA@5V
• Power consumption (battery): 10mA
• Voltage detection accuracy: 0.05V
• Operating temperature: -20 to 60℃
• FBUS/ protocol compatibleS.Port
