FAS100 ADV 100A Ammeter telemetry probe for Smartport
FRSKY FAS100 ADV

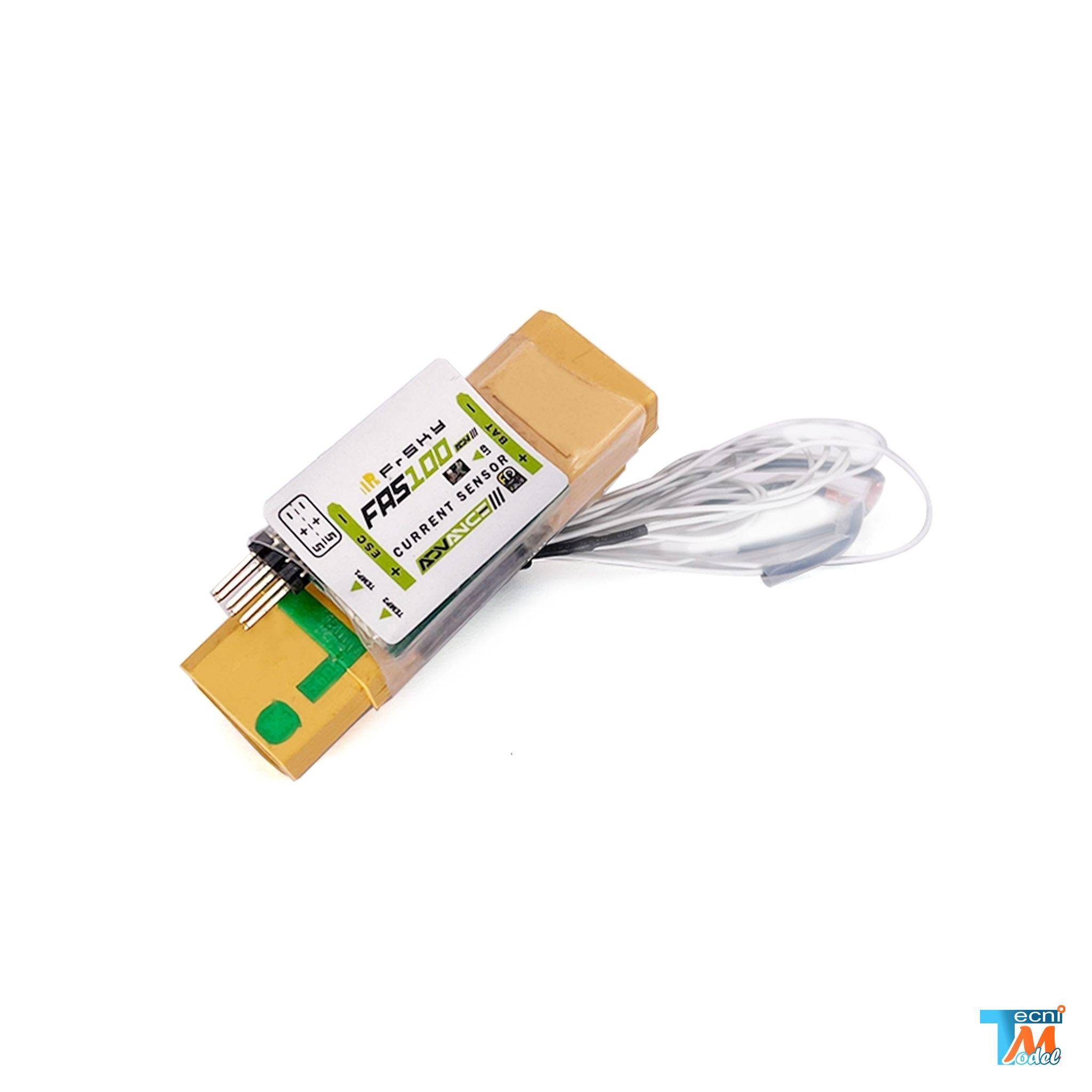

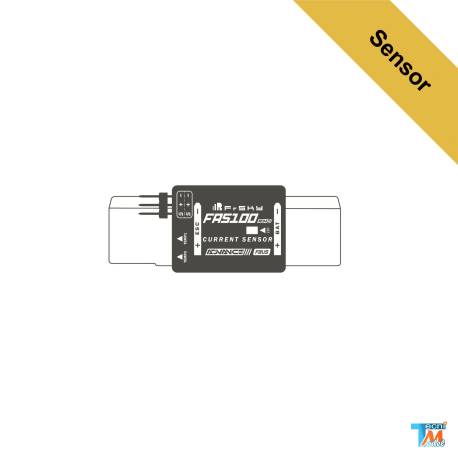

The FAS100 ADV current sensor is designed to measure current (up to 100A) and voltage (up to 14S) when connected between a battery and an ESC, and also features 2 independent temperature probes.
It telemeters model consumption and battery voltage (ammeter and voltmeter function), and 2 temperatures.
FrSky has improved the performance and capabilities of its sensors, leading to the development of the new ADVANCE (ADV) sensor series. All ADV sensors fully support the FBUS protocol and are also compatible with S.Port. Thanks to the FBUS protocol, ADV sensors can be seamlessly linked to an FBUS-compatible receiver, further simplifying model construction.
Connection to the Smart-Port or FBus of the FR-SKY receiver.
Features :
- Maximum current: 100A (150A peak)
- Maximum operating voltage: 14S (58.8V)
- Measuring range: 0 to 100A, max. 14S
- 2 independent temperature sensors: -55℃ to +250℃ / -67℉ to +482℉ - Accuracy: ±5%
- Power consumption: 16mA at 5v
- Dimensions: 65.3x23x18mm
- Weight: 30g
- XT90 Anti-Spark socket
