FRSKY PS30 ADV 30 bar pressure sensor for Smartport

FRSKY PS30 ADV 30 bar pressure sensor for Smartport.

FRSKY PS30ADV

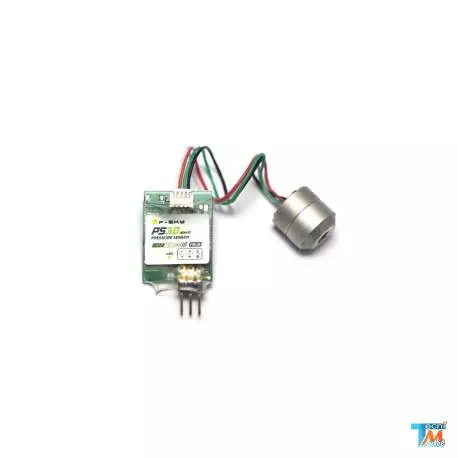

The PS30 ADV pressure measurement system is designed to measure pneumatic or hydraulic pressures up to 30 bar. It provides real-time telemetry of the pressure in your model's circuit.

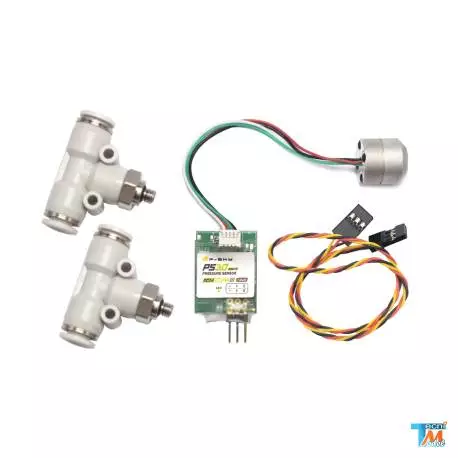

The PS30 PRESS sensor connects to your existing system via the T-connectors supplied, for Ø4mm and Ø6mm hoses (up to 15 bar). Please note that the sensor can measure up to 30 bar (435 psi) with a suitable fitting (M5 thread).

FrSky has improved the performance and capabilities of its sensors, leading to the development of the new ADVANCE (ADV) sensor series. All ADV sensors fully support the FBUS protocol and are also compatible with S.Port. Thanks to the FBUS protocol, ADV sensors can be seamlessly linked to an FBUS-compatible receiver, further simplifying model construction.

Connection to the Smart-Port or FBus of the FR-SKY receiver.

Features :

• Pressure measurement
  • Measurement range: 0 to 30 bar (435psi)
  • Max. pressure supported by sensor: 50 bar
• Max. permissible pressure with supplied T-connectors: 15 bar
• Sensor dimensions: Ø15x15mm (excluding fitting)
• PCB dimensions: 37x21x7.5mm
• For M5 threaded connections
• Weight: 7g (excluding fitting)
• Operating voltage: 4 to 10V
• Current consumption: 5mA at 5V
• FBUS/ protocol compatibleS.Port

For use on hydraulic circuits, we strongly recommend replacing the original fittings with fittings designed for hydraulic systems.
