FLVS ADV with display: Lipo/Lion/LiFe battery voltage sensor with Smart-Port, for FR-SKY telemetry

Lipo/Lion/LiFe battery voltage sensor with Smart-Port, for telemetry FR-SKY

Fr-Sky FLVS ADV

This FRSKY telemetry sensor enables you to monitor the voltage of each individual cell of a Lipo, Li-ion or LiFe battery while it is being used in the model

Connects to the battery balancing socket. Can be used up to 8S!

FrSky has improved the performance and capabilities of its sensors, leading to the development of the new ADVANCE (ADV) sensor series. All ADV sensors fully support the FBUS protocol and are also compatible with S.Port.. Thanks to the FBUS protocol, ADV sensors can be seamlessly linked to an FBUS-compatible receiver, further simplifying model construction.

The FLVS ADV voltage sensor can measure the voltage range of Lithium batteries from 2S to 8S with a resolution of 0.01V, and features an OLED display screen, showing these measurements in real time. It's the obvious choice for accurate measurement of high-capacity Li-Po batteries.

Connection to the Smart-Port or FBus of the FR-SKY receiver.

Features :

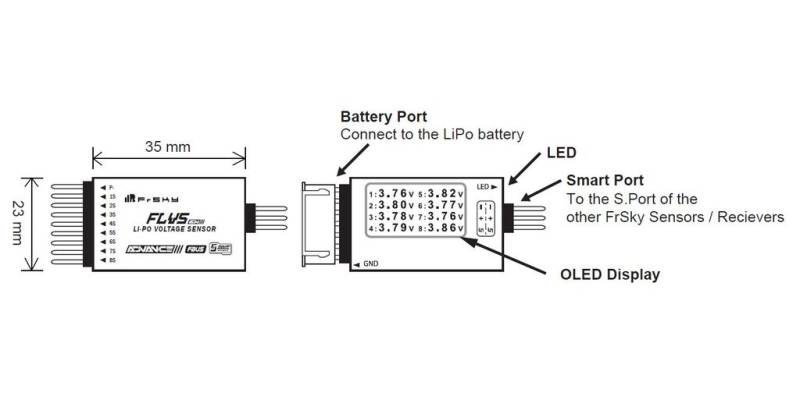

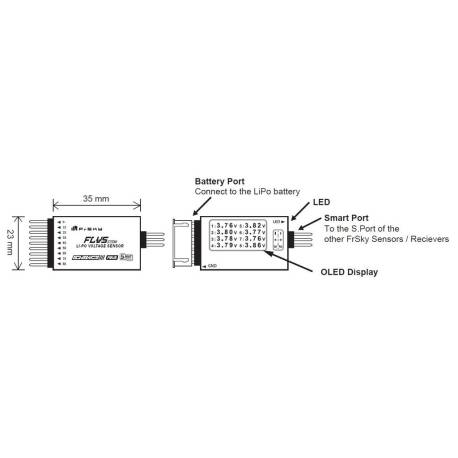

• Dimensions: 52x23.5x9.5mm
• Weight: 7.5g
• Voltage measurement range: 2S to 8S
• Power consumption (S.Port) : 10mA@5V
• Power consumption (battery): 10mA
• Resolution: 0.01V
• Measurement accuracy: 0.05V
• Operating temperature: -20 to 60℃
• Display: OLED 128x64px
• FBUS/ protocol compatibleS.Port
