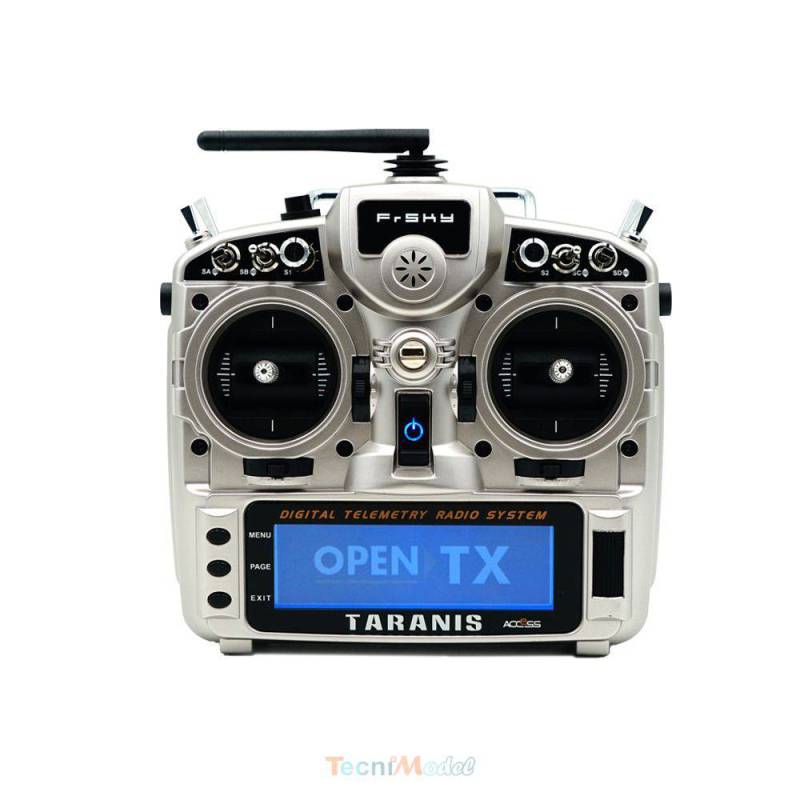

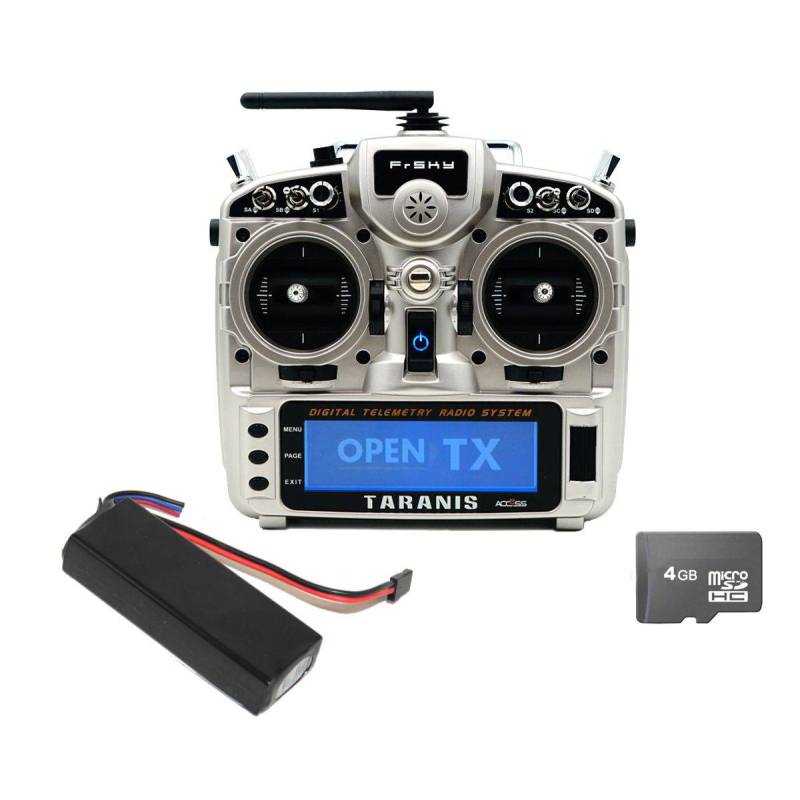

FR-SKY X9D Plus 2019 Radio in Silver Color + Case + Lithium Battery + MicroSD

Silver color

Improved 2019 version of the Fr-Sky Taranis X9D+ radio control, with a new case design including a programming wheel, an impulse button at the top of the case and, above all, a new, more powerful internal electronic board.

When buying, compare what's supplied: we supply this radio with a 2S Lithium battery and a MicroSD card, unlike what is supplied as standard by FR-SKY (and by most retailers).

The company FRSKY, now well known for its 2.4 Ghz radio control systems, is offering a radio control designed to meet modellers' expectations: the TARANIS X9D Plus 2019.
This radio control now offers a new transmission protocol called "ACCESS" and can also use the "ACCST" protocol. These 2.4Ghz "ACCESS" and "ACCST" transmission systems guarantee excellent signal transmission.
This radio control can control 16 channels simply by adding a second receiver to the model, and up to 32 channels with an additional transmitter module to be clipped onto the back of the transmitter.
Its internal system based on an open-source "OpenTX" system enables the radio control to be used to the full, whatever its purpose.

As a result, TecniModel has customized the configuration of the internal program to make it more accessible to users of multifunctional models (model ships, rc trucks and earthmoving machinery) without the need to dive into complex configuration. However, the full power of the system remains available for advanced users.
The FR-SKY Taranis transmitter is supplied by TecniModel with an internal system, announcement messages, customized configuration, specific instructions and preloaded model memories, in English and in French.

The radio control comes with a 2S Lithium battery and a MicroSD card.

The remote control is supplied without a receiver, so use only EU-LBT V2.1.x FrSky receivers.

Specific configuration proposed by TecniModel :

Configuration and instructions entirely in French.

The gimbals are all centered, without notches (although notches are available by modifying an internal setting on the radio case).

Pre-recorded model memories facilitate immediate use of the remote control. These models also serve as a basis for any additional parameter settings or the creation of other model memories.

Truck models with MFC-01 and MFC-03: these models enable direct use of the Tamiya multifunction units without special configuration or the need to use trimmers for extended functions.

Earthmoving Machinery models: memories for track or wheel loaders with servo-control of the hydraulic pump. Excavator memory with automatic hydraulic pump channel.

Boat models: Single motor boat or boat models with two separately controlled motors.

Scope of delivery:

• Transmitter FRSKY Taranis X9D Plus 2019 Silver color
• ISRM version in v2.1.x
• EVA carrying case
• Li-Ion 2S 2040mAh transmitter battery
• FR-SKY TARANIS" neck strap
• MicroSD card
• USB cable
• French manual (Tecnimodel specific)

Control items fitted to this remote control :

• 2 joysticks with associated trimmers (ball-bearing-mounted joysticks with potentiometers)
• 2 rotary potentiometers
• 2 sliders
• 6 3-position switches
• 1 2-position switch
• 1 momentary switch
• (new) 1 pulse button

Other features :

• New: new version of internal electronics, faster and more powerful
• New: impulse button on top of case
• New: programming wheel
• New: USB cable charging
• "Model Match" system (with X range receivers): pause a model, only the model selected on screen responds to radio control commands.
• 212x64mm backlit LCD display
• Gimbals on bearings
• All handles, sliders, potentiometers and switches can be freely assigned
• 60 model memories
• Internal HF module with telemetry capable of transmitting up to 16 channels at a refresh rate of 9ms
• Slot for external HF module (module format JR)
• 3 screens for customizable telemetry display, data log (requires micro SD card)
• 64 free mixes, activatable by flight phase group
• 16 customizable curves from 3 to 17 points each
• 32 logic switches
• Multimode transmitter (1-4)
• "Smart Port" telemetry compatible
• Standard JR jack capable of receiving up to 8 channels and sending up to 16 channels
• Audio jack for connecting headphones (telemetry voice announcement)
• Mini USB socket for connecting the transmitter to a PC (firmware update, backup and restoration of configuration and model memories)

Additional features on the Taranis X9D Plus 2019 are :

• New, faster and more powerful internal electronics
• Pulse button on top of the case
• Programming wheel
• USB cable charging

Version information :

• Taranis X9D Plus 2019 EU-LBT
• French firmware
• Transmitter module: XJT EU-LBT Firmware
• ISRM version in v2.1.x

Please note: the receivers used must include EU-LBT firmware

Choice of receivers :

This remote control can be used with the receivers listed in the "Accessories" section. Each receiver must be associated with a model memory.

Use EU-LBT receivers v2.1.x.

• 1 X8R EU-LBT receiver for 8 channels and telemetry feedback
• 2 X8R EU-LBT receivers for 16 channels (+ telemetry)
• 1 RX6R EU-LBT receiver (6 channels + telemetry)

Number of channels possible with this radio control :

• 8 channels with an X8R or RX8R receiver
• 16 channels when combined with 2 X8R receivers
• 24 channels by adding an XJT external transmitter module (see "accessories") and combining a total of 3 X8R receivers
• 32 channels by adding an XJT external transmitter module (see "accessories") and combining a total of 4 X8R receivers
