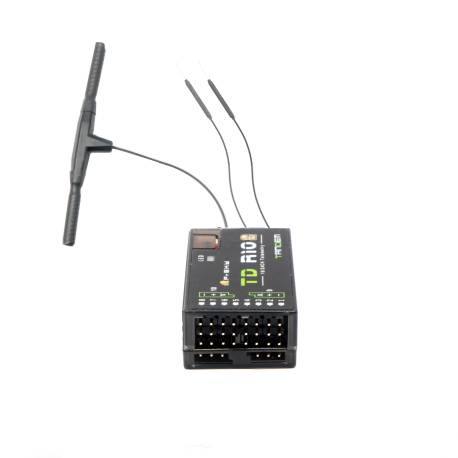

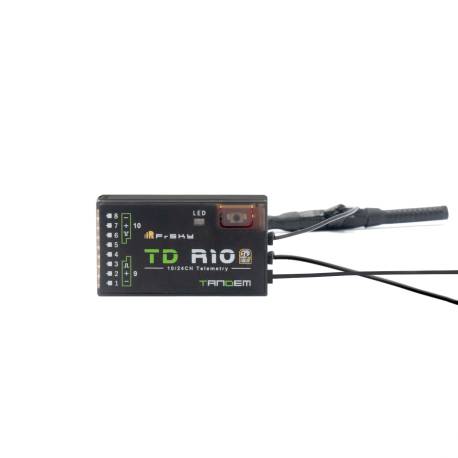

Tandem TD R10 10-channel FrSky receiver

Tandem TD R10 10-channel FrSky receiver

FrSky 03022021

Tandem dual-band receivers differ from other FrSky 2.4Ghz or 900Mhz receivers in that they operate simultaneously at 900Mhz and 2.4Ghz frequencies. This means that Tandem receivers not only provide a low-latency signal and long-range control, but also benefit from a high level of reliability and anti-interference performance.

Tandem series receivers adopt a triple-antenna design that ensures wide multidirectional coverage for the remote signal. Data (both power and signal) under unusual conditions during flight can be recorded by Tandem receivers thanks to an integrated black box module.

An important feature of the TD R10 is the 10 configurable channel ports, each of which can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, Tandem series receivers offer the possibility of seamless association with several telemetry devices (Neuron ESC, Advance Sensors, etc.) and simplified component installation.

Features:

• Simultaneous operation of dual-band TD mode
• Triple antenna design for multidirectional coverage
• Black box function
• Integrated voltage sensor
• 4ms run mode with telemetry
• Long control range (up to 50KM - 100KM)
• Software update by air (OTA)

• Supply current range（each port) :
• Instantaneous current:5A
• Continuous current: 3A

• 10 configurable channel ports:
• CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
• CP2-10: PWM / SBUS Out / FBUS / SBUS In S.Port

Technical specifications:

• Frequency: 2.4GHz & 900MHz
• Dimensions: 46.5*26.3*14.7mm (L*W*H)
• Weight: 16.6g
• Operating voltage: 3.5-10v DC
• Operating current: ≤180mA@5V
• Compatibility: Tandem series transmitter and RF module compatible with TD protocol

• Triple 2.4G/900M antenna:
• 2* External 2.4G antenna (IPEX1)
• 1* External 900M antenna (IPEX1)

Automatic registration and pairing (Smart Match) :

Follow the steps below to complete the registration and pairing procedure:

1. For the TANDEM X20, for example, enter the model, select the RF system, switch on the internal module, select the [ON] status and TD MODE(Type). You can select internal/external antenna and power as required, then select [Register].
2. Connect the battery to the receiver while holding down the receiver button. The receiver's red and green LEDs light up, indicating the status [Reg].
3. When the register ID, RX name and UID are displayed, click on [Register]. The receiver's red and green LEDs flash and the transmitter displays [Enregistrement OK ].
4. Switch off the receiver.
5. Move the cursor to select one of the 3 receivers [Bind].
6. Connect the battery to the receiver.
7. Select RX, GREEN stays on and BLUE flashes. The transmitter then displays [Bind successful].

Note: Once the receiver is registered, the button is no longer needed in the linking process
