COMBO PACK FRSKY R9 LITE PRO 900Mhz FCC module + RX R9SX receiver + EU-LBT antennas

Pack FRSKY R9 LITE PRO 868Mhz/915Mhz FCC module + R9SX receiver + EU-LBT antennas

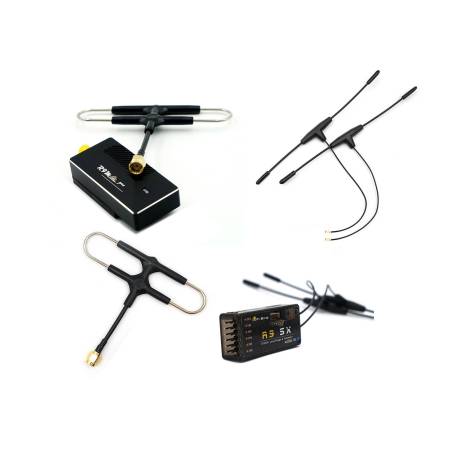

Combo pack including an R9 LITE PRO 915Mhz FCC module, an RX R9SX receiver and a set of compatible antennas for conversion to EU-LBT.

Contents of this set:

• 1 FR-SKY R9 Lite Pro 900Mhz FCC transmitter module
• 1 FR-SKY R9SX 900Mhz receiver
• 1 R9 Lite module antenna for EU-LBT
• Pair of antennas for R9SX receiver for EU-LBT

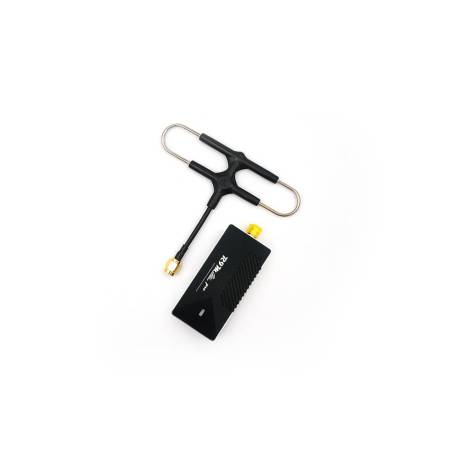

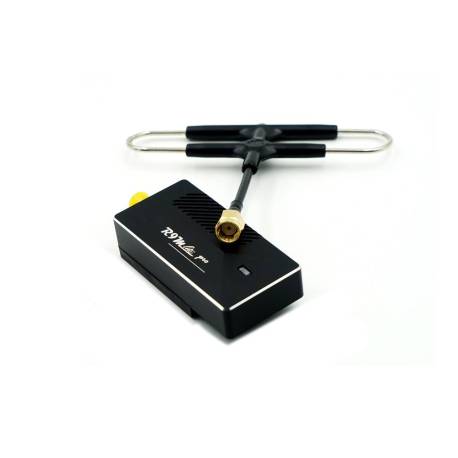

R9 Lite Pro module

The R9M Lite Pro is the improved 900 MHz Lite module. It features a high-speed digital interface, supports up to 1W of RF power, and is fully encased in a protective hull CNC aluminum that also helps dissipate heat when using high RF power. Designed with the new ACCESS firmware, it also supports spectrum analyzer functions. The module is fully compatible with new FrSky ACCESS radios such as Taranis X-Lite PRO and X9 Lite.

• Long range, low latency and high accuracy.
• High-speed digital module interface.
• Support for spectrum analyzer function.
• Supports RF power up to 1 W.
• Telemetry data transmission.
• Hull CNC aluminum protection housing.
• Fully compatible with ACCESS protocol and new FrSky radio models
• radio models (e.g. Taranis X-Lite PRO and new models to come)

Features:

• FCC flashable version in EU-LBT.
• Dimensions: 62.4 mm × 30 mm × 18.4 mm (L×W×H)
• Weight: 34g
• Channel: 16CH
• RF operating frequency: 868MHz / 915MHz
• RF power (without LBT): 10mW / 100mW / 500mW / 100mW~1W (auto-adaptive)
• RF power (LBT): Telemetry mode (25mW) / Non-telemetry mode (200mW / 500mW)
• Compatibility: R9 (ACCESS protocol)

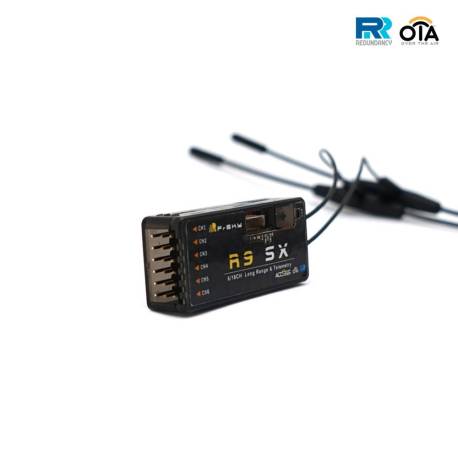

R9SX receiver

The R9 SX receiver is the upgraded version of FR-SKY's R9 Slim series of long-range receivers. It adds 3-pin servo connectors with 6 full PWM channels and uses the dual-antenna design. The lightweight protective hull is equipped with a 6-pin multi-purpose connector to bring you additional functions such as signal redundancy, telemetry feedback, external battery detection and much more.
Flexibility is a key feature of this receiver. The 6 PWM channels can be converted to 4 PWM channels with the additional Ch5 and Ch6 outputs, which can be configured as alternative S.Port and SBUS outputs on the 6-pin port. The improved design is proving more durable, and in conjunction with the latest ACCESS firmware, the two are now synchronized and we're able to unleash the true potential of the ACCESS protocol.

• ACCESS protocol and OTA support.
• 900MHz/868MHz long range with low latency.
• Improved, durable design.
• 6 standard servo connectors (default PWM channel).
• CH5/CH6 switchable as output channels S.Port/SBUS.
• Support S.Port / F.Port (configurable in OpenTX / FrOS menu).
• Signal redundancy function.
• External battery detection.
• Detachable antenna on Ipex1 connector.

Features:

• Flashable FCC version in EU-LBT.
• Frequency: 868 MHz / 915 MHz
• Dimensions: 36*17*7mm / 47.5*20.5*11mm (case and pins included)
• Weight: 8.8g / 13g (including case and pins)
• Number of channels: 6 PWM / 16 SBUS (CH16 sort RSSI)
• Operating voltage : DC 3.5V~12.6V (3S Li-Battery)
• Operating current: <100mA@5V
• Compatibility: R9M Lite/ R9M Lite Pro / R9M 2019 with ACCESS firmware

Antennas for EU-LBT

• 1 Super 8 antenna for R9M/R9M Lite EU-LBT modules.
• 2 T-type dipole receiving antennas for R9_SLIM/_SLIM+_ipex 1(868Mhz_EU)
